Cisco Room Navigator CS-T10-WM-L-K9--= – Customized Model Wall Spare

Product Overview

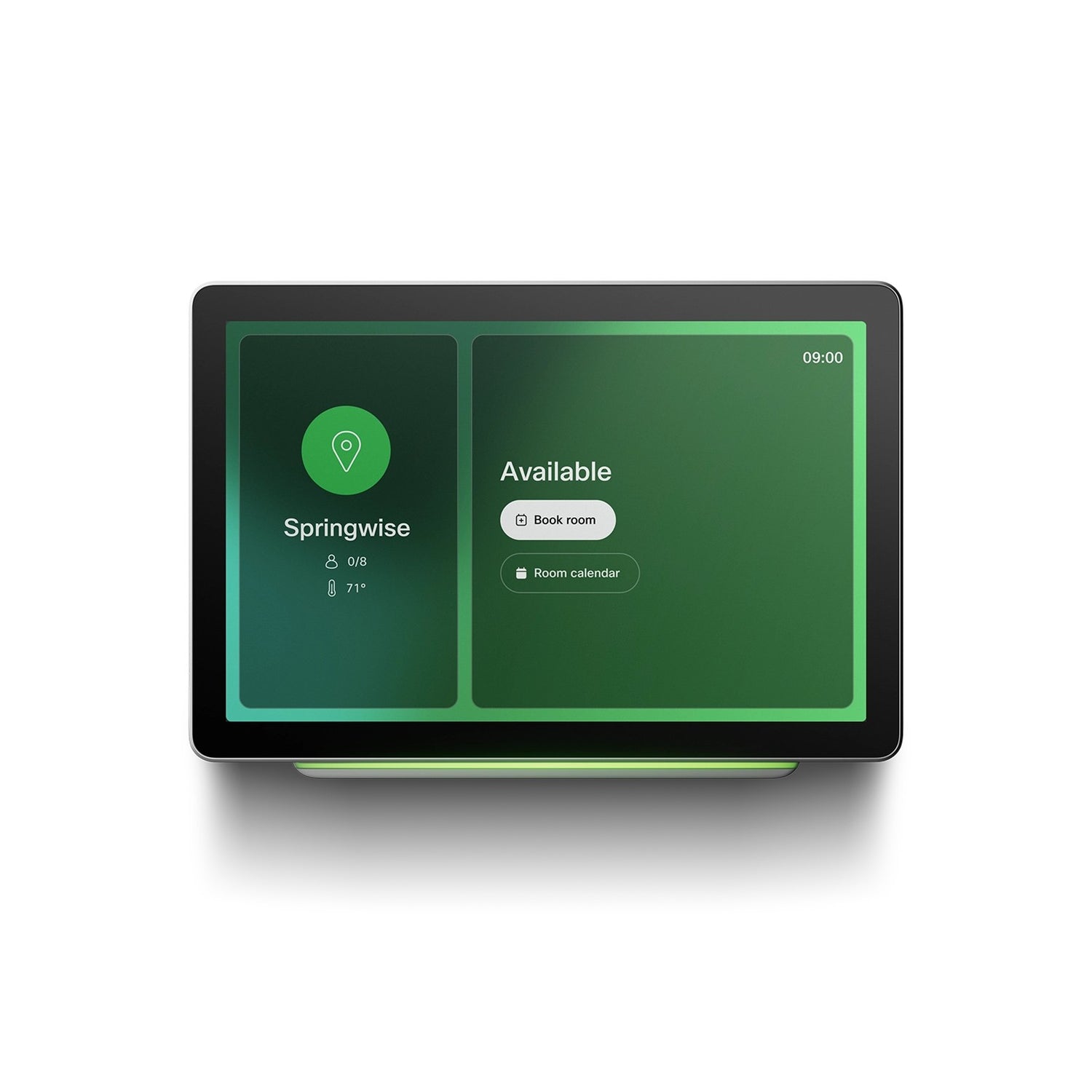

This part number is a wall-mount Cisco Room Navigator spare against a customized model designation: -- marks a special-configuration order and the trailing = marks a service unit rather than a complete new room system. It is the SKU an organisation re-orders when its scheduling panels were supplied under a negotiated configuration and a standard catalogue panel would not be an equivalent replacement. The underlying hardware is the current wall-mount Room Navigator with a 10.1-inch 1920 x 1200 display, a 360-degree viewable multicolor LED status bar and PoE 802.3af Class 0 power.

Product Description

The most useful thing to establish before ordering is what the customization actually covers, because Cisco does not describe it in the published datasheet. Where the variation is packaging or software preload the panel is functionally the standard unit; where it affects finish or hardware it is not, and a substitution will be visible on the wall next to the panels either side of it.

The documented baseline for the wall version applies as the starting point. One Ethernet (RJ-45) 100 Mbps port serves either the external network or direct pairing with the endpoint, there is a microUSB service port and a factory reset pinhole, and the unit measures 2.8 x 9.53 x 6.3 in. (6.9 x 24.2 x 16.4 cm) at 2.03 lb (0.920 kg) as Cisco prints the figures. A mounting bracket, sticker and template ship with the wall SKU.

In service the panel does the same job as any other Room Navigator: room booking with corridor-visible LED status, temperature, humidity and TVOC reporting into Control Hub, and compatibility with Room Series, Board Series and Desk Series endpoints on RoomOS 9.14.3 or later. Standard alternatives are listed under room scheduling and device and room control.

Creation Networks can confirm the shipping build for this ordering code and price the standard wall-mount equivalent next to it. The wider range is listed under Cisco.

Key Features

• Customized model designator — Cisco marks special-configuration orders with --, so this SKU is matched to an existing negotiated build rather than treated as the catalogue part.
• Spare service unit — The = suffix marks a service replacement for an installed panel, the correct line item for maintaining a deployed estate.

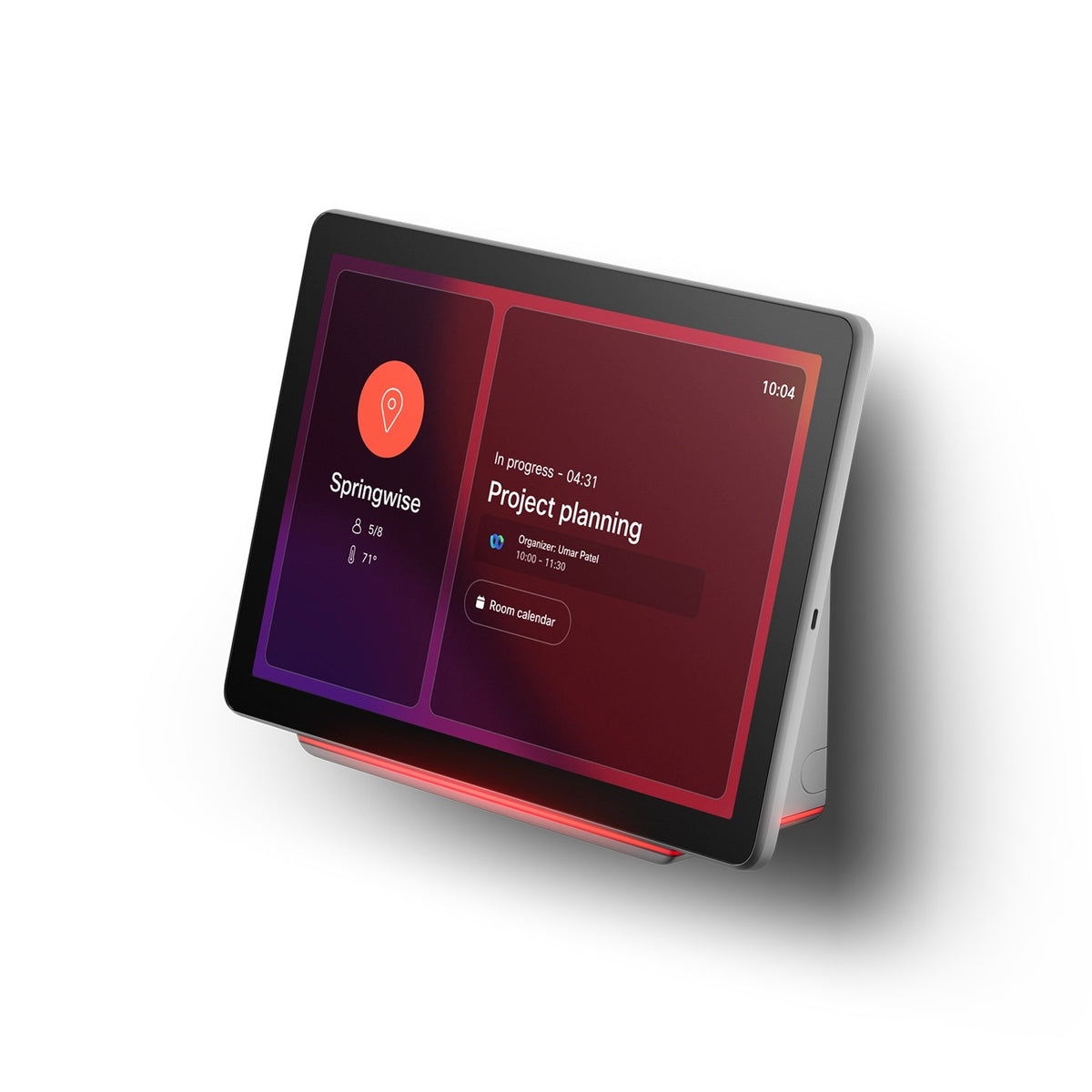

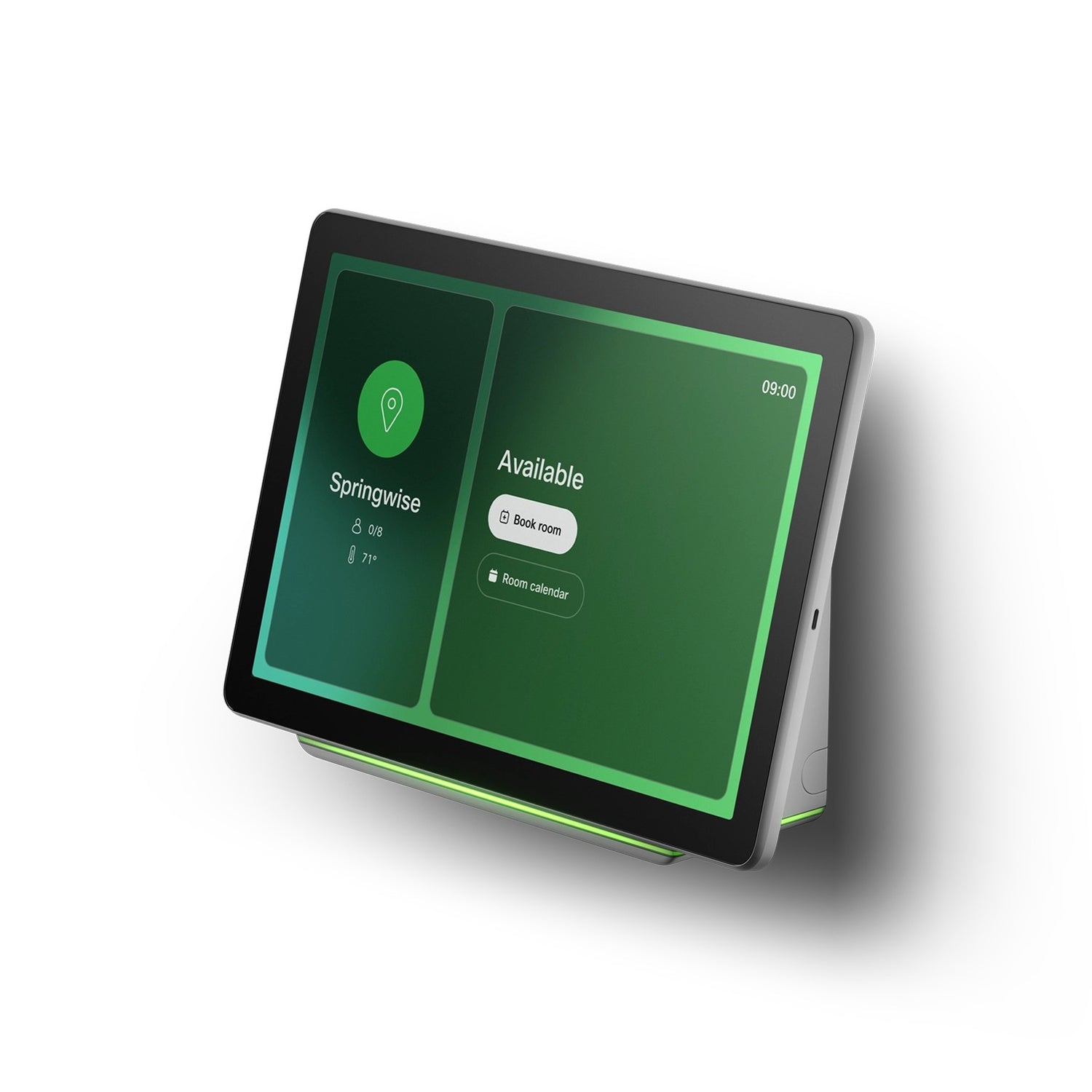

• 360-degree multicolor LED status light — The wall-mount panel's status light is visible from down a corridor, so passers-by can see whether a room is free or booked without reading the screen.
• 10.1-inch 1920 x 1200 capacitive touch panel — The higher resolution than the Touch 10's 1280 x 800 keeps room-booking and call-control layouts legible at arm's length.
• PoE 802.3af Class 0 power — A single Cat cable carries both power and data, so the panel needs no local mains outlet at the table or beside the door.
• Built-in environmental sensors — Temperature, humidity and TVOC air-quality readings are reported to Cisco Control Hub alongside acoustic data from the paired endpoint, giving facilities teams workspace telemetry without extra sensors.
• Microsoft Teams Rooms certification — Cisco states the Room Navigator is certified as both a Microsoft Teams Rooms Console and a Microsoft Teams Panel, so the same panel deploys in Teams-standardised estates.
• Enterprise network security — 802.1X authentication, HTTPS and SSH management, SRTP with AES-128-GCM or AES-256-GCM and WPA3-Enterprise with CCMP128 are documented for the panel.

Typical Applications

• Commercial meeting space — Managed office and multi-tenant meeting suites use the panel's booking state and Control Hub telemetry to report room utilisation to tenants.
• Conference room — The 10.1-inch panel gives call control, content sharing and booking on the table or at the door of a standard bookable room.
• All-hands room — A wall panel outside a large shared space makes booking state visible to a corridor of people rather than to whoever opens the door.
• Multi-purpose room — Rooms that switch between meeting, briefing and training use benefit from one consistent control surface regardless of how the space is configured.

Technical Specifications

Frequently Asked Questions

What does the -- suffix indicate?

Cisco uses -- to mark a customized model, meaning a special-configuration order rather than the standard catalogue build. Confirm the exact configuration against your Cisco quote before raising the purchase order, because the shipping build can differ from the base part number.

Is this a complete new system or a service replacement?

The = suffix marks a Cisco spare or service unit. It is intended to replace a panel in an existing deployment rather than to be quoted as a complete new room system, which normally ships the panel bundled with the endpoint.

What ships in the box?

Cisco lists the Room Navigator touch panel in First Light or Carbon Black, plus the mounting bracket, a sticker and an installation template. No VESA pattern is published for the wall version, so set out from the supplied template.

Does the panel need a power outlet at the table or wall?

No. The Room Navigator is powered by Power over Ethernet 802.3af Class 0 over its single RJ-45 connection, so one Cat cable carries power and data. Cisco also publishes a 100-240 VAC, 0.5 A max, 50/60 Hz rating for the optional power-supply accessory.

Which Cisco endpoints does it pair with?

Cisco lists Room Series, Board Series (Board S, Board Pro and Board Pro G2) and Desk Series devices as compatible, with a minimum software level of RoomOS 9.14.3 or later on the paired endpoint.

Can a standard wall-mount Room Navigator be used instead?

Technically the standard wall-mount SKU is the same documented panel. Whether it is an acceptable substitute depends on what the customization covers, which Cisco does not publish, so confirm against your original order before changing part numbers.

What warranty applies to this Room Navigator?

Cisco publishes a 1-year limited liability warranty for the Room Navigator. Warranty is handled per Cisco's standard terms for this product class — contact Creation Networks to confirm coverage for your order.
