Cisco Room Navigator CS-T10-TS-L-K9--= – Customized Model Table Spare

Product Overview

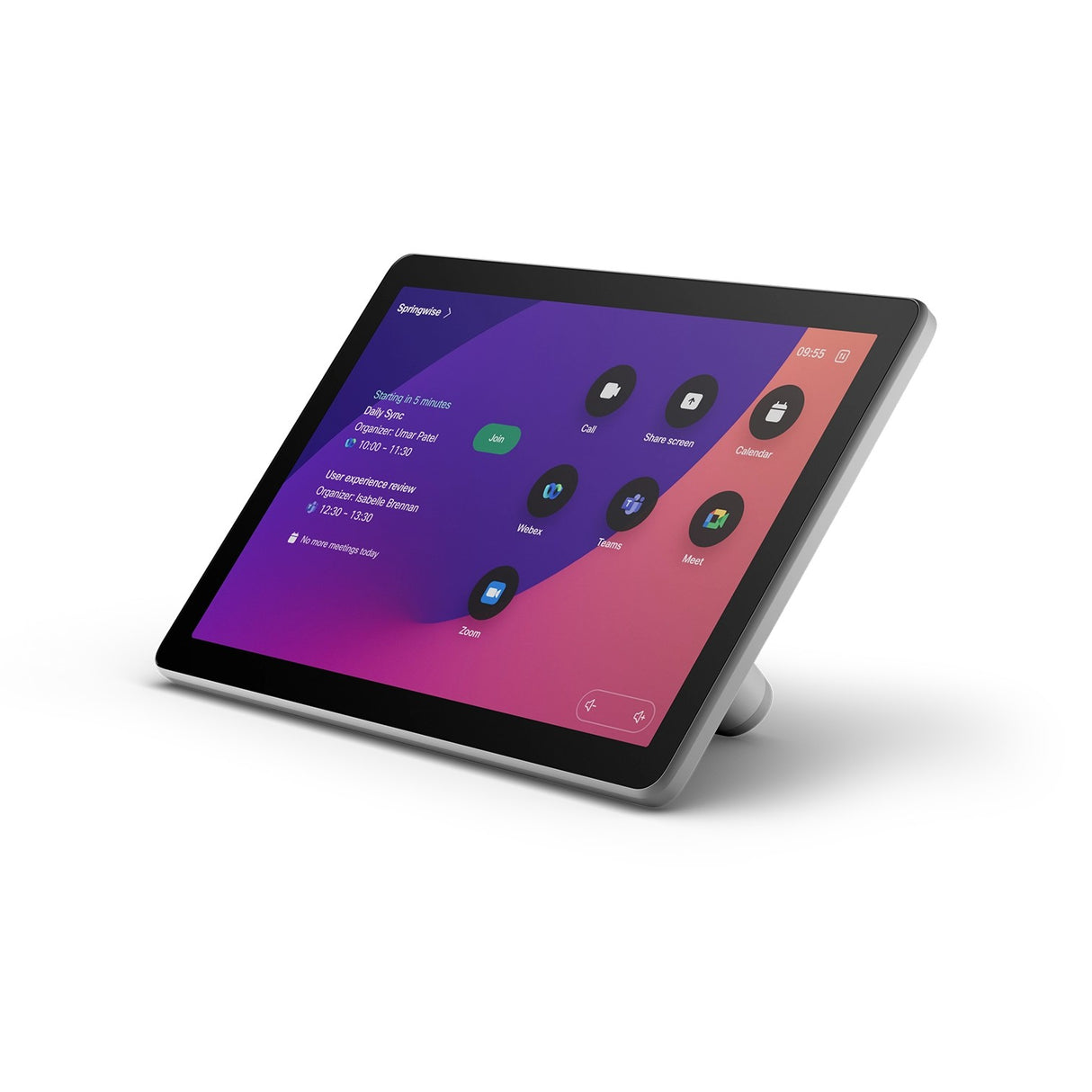

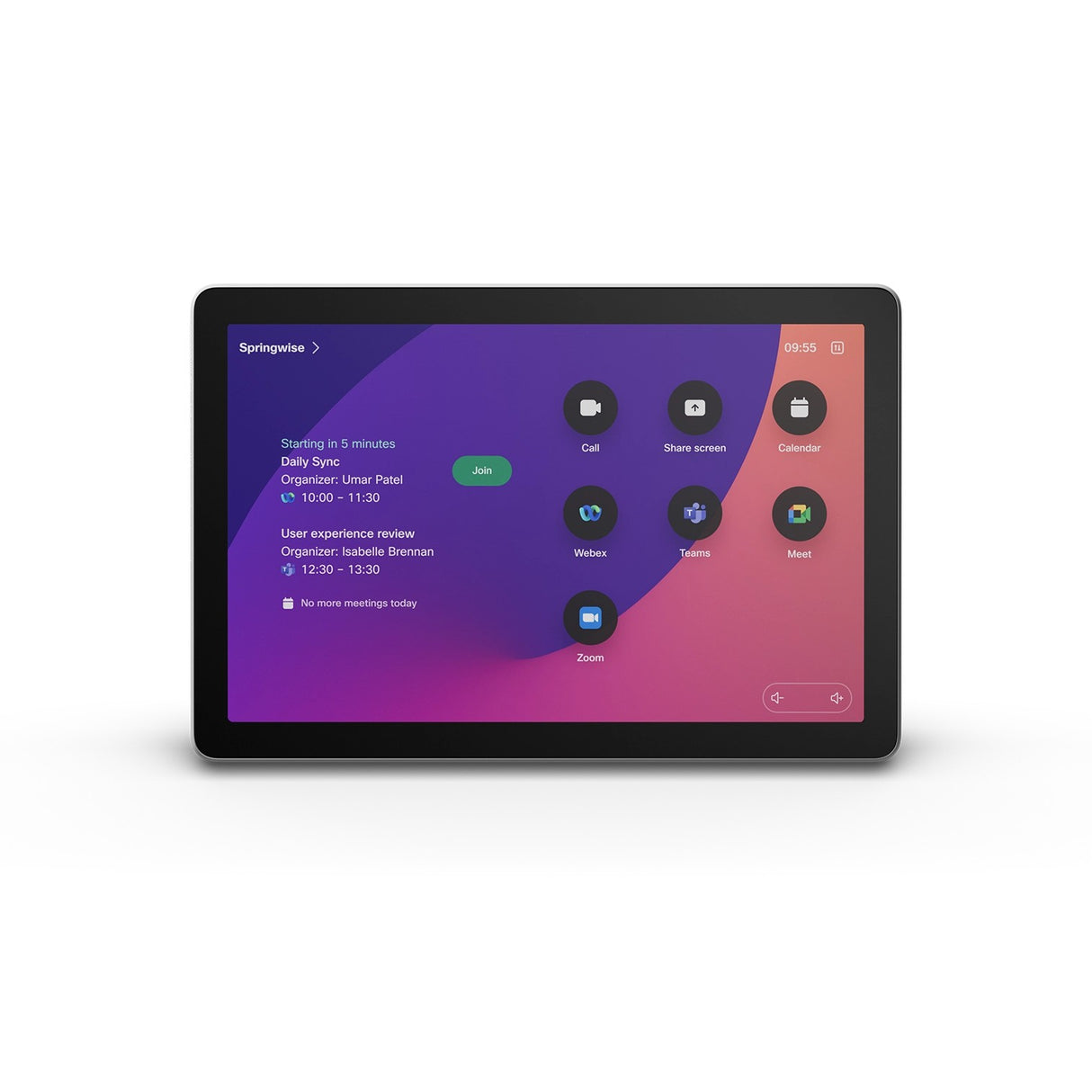

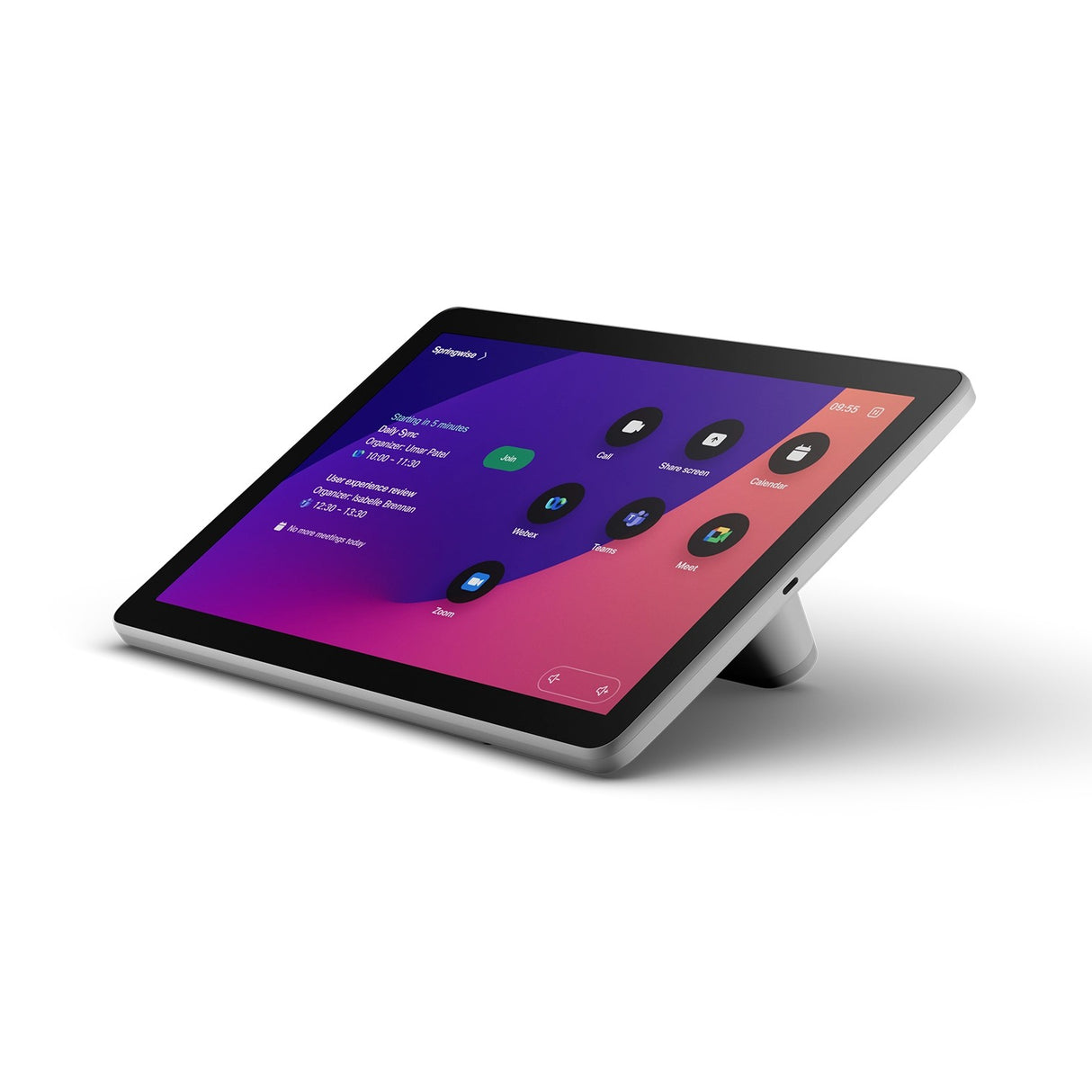

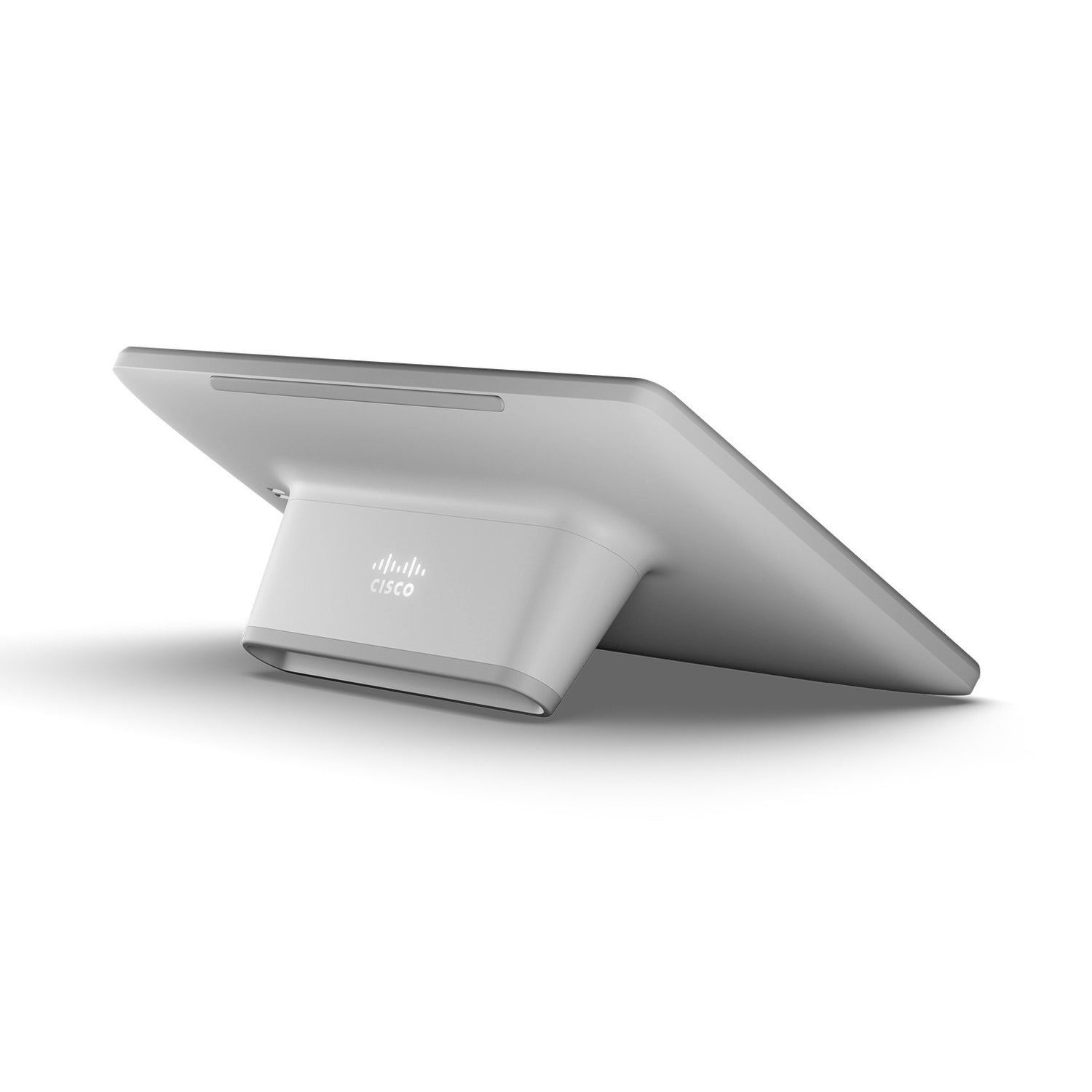

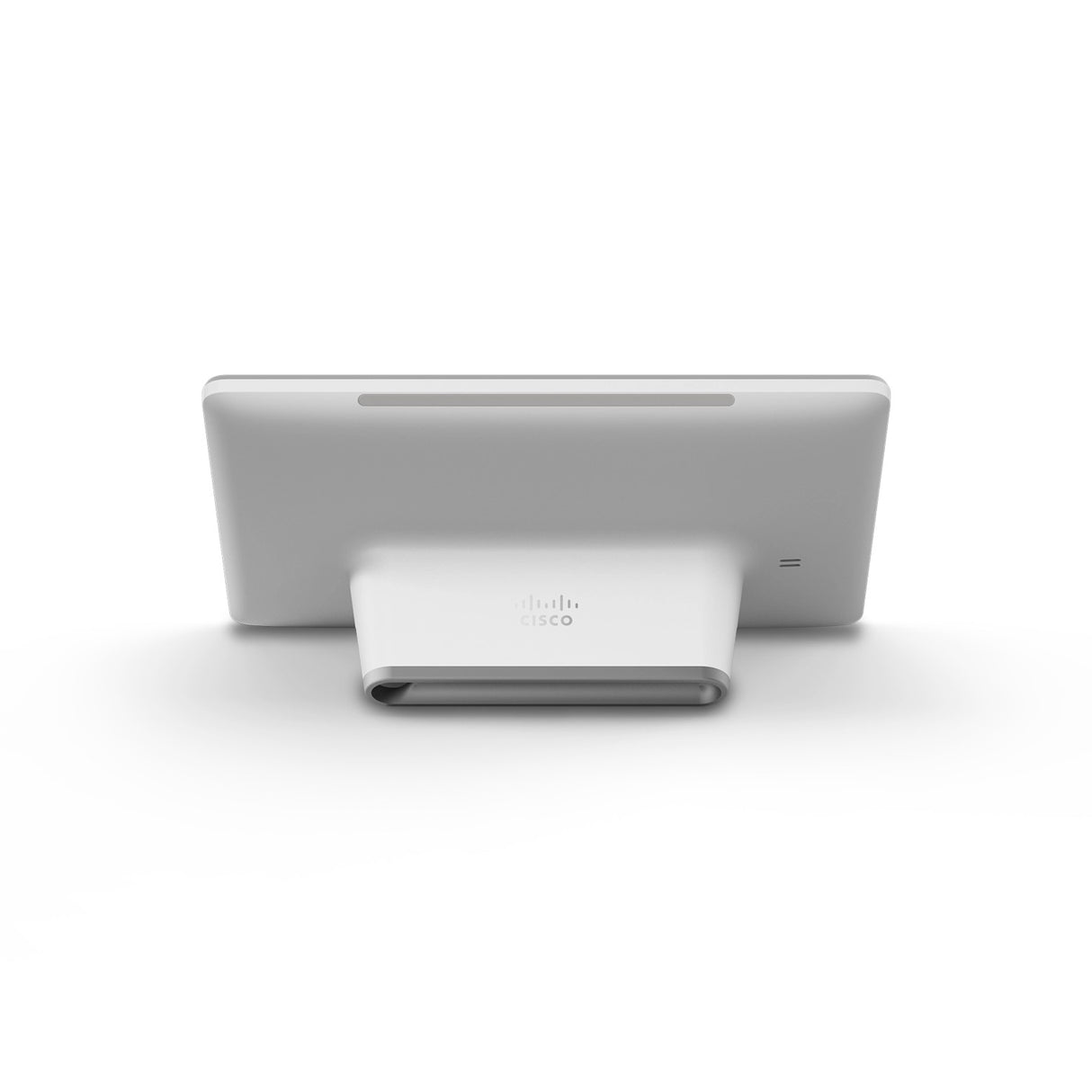

CS-T10-TS-L-K9--= carries two Cisco designators that change how it should be ordered: -- marks a customized model, and the trailing = marks a spare or service unit rather than a complete room system. In practice that means the shipping build may differ from the standard First Light table-stand Room Navigator, so the configuration should be confirmed against your Cisco quote before the purchase order is raised. The base hardware is the current 10.1-inch 1920 x 1200 Cisco Room Navigator on PoE 802.3af Class 0, listed against Room Series, Board Series and Desk Series endpoints.

Product Description

Customized part numbers usually exist because a customer negotiated a specific build, packaging or software preload, and they are typically re-ordered by the same organisation for the same estate. That is the buyer this SKU serves: someone matching an existing special-configuration deployment where the standard catalogue part number would not be an equivalent replacement.

The panel specification published by Cisco for the family still applies as the baseline. The table unit measures 2.8 x 9.53 x 6.42 in. (7.1 x 24.2 x 16.3 cm) and weighs 1.39 lb (0.63 kg), takes one Ethernet (RJ-45) 100 Mbps connection with PoE 802.3af Class 0, and rotates its interface 180 degrees when tilted. Cisco documents 802.1X, HTTPS and SSH management, and SRTP with AES-128-GCM or AES-256-GCM.

Because the customization itself is not described in Cisco's published datasheet, treat anything beyond that baseline as something to verify rather than assume. Compare against the standard table-stand ordering codes and browse alternatives in the device and room control and room scheduling collections.

Creation Networks can confirm the shipping configuration for this ordering code and quote the standard equivalent alongside it if the customization is no longer required. Other Cisco room hardware is grouped under Cisco.

Key Features

• Customized model designator — Cisco uses -- to mark a special-configuration order, so this part number should be matched against an existing customized deployment rather than substituted for the standard SKU.
• Spare service unit — The = suffix identifies a Cisco service replacement, which is the correct line item when maintaining an installed base rather than fitting a new room.
• 10.1-inch 1920 x 1200 capacitive touch panel — The higher resolution than the Touch 10's 1280 x 800 keeps room-booking and call-control layouts legible at arm's length.
• PoE 802.3af Class 0 power — A single Cat cable carries both power and data, so the panel needs no local mains outlet at the table or beside the door.
• 180-degree UI rotation on the table version — The interface rotates when the device is tilted, so a panel placed mid-table stays readable from either side.
• Enterprise network security — 802.1X authentication, HTTPS and SSH management, SRTP with AES-128-GCM or AES-256-GCM and WPA3-Enterprise with CCMP128 are documented for the panel.
• Wide Cisco device compatibility — Cisco lists support across Room Series, Board Series (Board S, Board Pro, Board Pro G2) and Desk Series, so one control-panel SKU covers a mixed estate.
• Built-in environmental sensors — Temperature, humidity and TVOC air-quality readings are reported to Cisco Control Hub alongside acoustic data from the paired endpoint, giving facilities teams workspace telemetry without extra sensors.

Typical Applications

• Conference room — The 10.1-inch panel gives call control, content sharing and booking on the table or at the door of a standard bookable room.
• Boardroom — Anti-glare finish and a 180-degree rotating interface let one panel serve a long table where it is reached from both sides.
• Multi-purpose room — Rooms that switch between meeting, briefing and training use benefit from one consistent control surface regardless of how the space is configured.
• Commercial meeting space — Managed office and multi-tenant meeting suites use the panel's booking state and Control Hub telemetry to report room utilisation to tenants.

Technical Specifications

Frequently Asked Questions

What does the -- suffix indicate?

Cisco uses -- to mark a customized model, meaning a special-configuration order rather than the standard catalogue build. Confirm the exact configuration against your Cisco quote before raising the purchase order, because the shipping build can differ from the base part number.

Is this a complete new system or a service replacement?

The = suffix marks a Cisco spare or service unit. It is intended to replace a panel in an existing deployment rather than to be quoted as a complete new room system, which normally ships the panel bundled with the endpoint.

What is different about a customized model?

Cisco does not publish the content of a customized build in the Room Navigator datasheet. The documented baseline for the family applies, but the specific variation attached to this part number must be confirmed against your Cisco quote or the original order it was created for.

Does the panel need a power outlet at the table or wall?

No. The Room Navigator is powered by Power over Ethernet 802.3af Class 0 over its single RJ-45 connection, so one Cat cable carries power and data. Cisco also publishes a 100-240 VAC, 0.5 A max, 50/60 Hz rating for the optional power-supply accessory.

Which Cisco endpoints does it pair with?

Cisco lists Room Series, Board Series (Board S, Board Pro and Board Pro G2) and Desk Series devices as compatible, with a minimum software level of RoomOS 9.14.3 or later on the paired endpoint.

How is the panel secured on the corporate network?

Cisco documents 802.1X network authentication, secure management over HTTPS and SSH, SRTP media encryption using AES-128-GCM or AES-256-GCM, and WPA3 / WPA3-Enterprise with CCMP128, so the panel can be onboarded under standard enterprise access policy.

What warranty applies to this Room Navigator?

Cisco publishes a 1-year limited liability warranty for the Room Navigator. Warranty is handled per Cisco's standard terms for this product class — contact Creation Networks to confirm coverage for your order.
