Cisco Webex Room 70 Single G2 CS-ROOM70SG2-K9 – 70-Inch All-in-One Room System

Product Overview

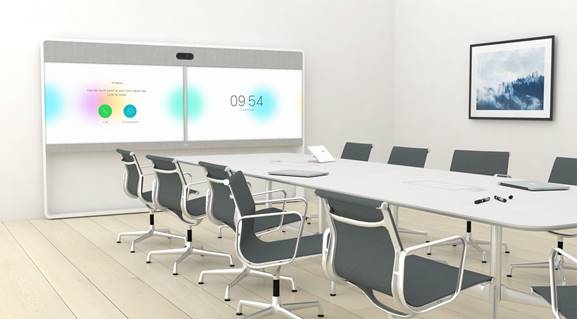

CS-ROOM70SG2-K9 is the Cisco Webex Room 70 Single G2: one 70-inch 4K screen carrying an embedded Cisco Codec Pro, a 5K Ultra HD Quad Camera and an integrated loudspeaker system in a single assembly Cisco sizes for rooms seating up to 14 people. This is an end-of-sale product. Cisco set the Room 70 Single G2 end-of-sale date at February 12, 2022, ended software maintenance releases on February 12, 2024, and published a last date of support of February 28, 2027. Buyers still specifying this part number are almost always adding a matching endpoint to a standardised Cisco room estate rather than designing a new room, and Cisco's documented migration product is the Board Pro 75 (CS-BRD75P-K9).

Product Description

The Room 70 Single G2 exists to remove the codec, camera, display and loudspeaker integration work from a medium-to-large room. Everything arrives mechanically joined, so the installing team runs one mains feed at 100-240 VAC, 3.5-2.0 A and one network drop rather than commissioning four separate subsystems. The Quad Camera detects participants, frames the room and switches between active speakers on its own, which is why estates standardised on this platform tend to keep buying the same part number instead of re-training users on a different endpoint.

The G2 generation is the reason to hold this SKU rather than the first-generation Room 70 Single. Codec Pro supports three screens for video and content, three local content sources, and up to eight Euroblock table microphones (CS-MIC-TABLE-E=) instead of the three mini-jack microphones the original unit accepts. Cisco documents a microphone pickup range of 4 m to 12.5 m, so table microphone placement can be sized against real room depth. The G2 connector panel adds 3G-SDI/HD-SDI camera input, GPIO and a COM port over the earlier panel, which matters when the room is under a control system. Cisco's cable schema limits HDMI presentation sources to two computers.

Plan the mechanical work before delivery. On the floor stand the G2 system weighs 113 kg [250 lb], with the screen assembly alone at 85 kg [188 lb]; wall-mounted installations use CS-ROOM70S-WMK= against CAD fixing hole spacing of 843 mm to 981 mm with 5 mm holes. Cisco recommends 80 cm [31.5 in.] between the table and a mounted system. Registration is on premises to Unified CM or Expressway, or to the Cisco Webex cloud, and control is by Touch 10 or Room Navigator. Creation Networks lists this alongside other Cisco video conference systems and large room solutions; mounting kits and stands for the platform sit in display mounts.

Key Features

• Single 70-inch 4K assembly — One 70-inch screen ships integrated with the codec, Quad Camera, loudspeakers and microphone array, so a 14-seat room is equipped from one part number with no separate display, DSP or camera mount.
• Cisco Codec Pro headroom — The G2 generation supports three screens for video and content and three local content sources, allowing a third display to be added later without introducing a second codec.
• Eight-microphone audio scale — Room 70 Single G2 accepts up to eight Euroblock table microphones against a default of two, which covers a long table that the first generation's three-microphone ceiling cannot.
• Automatic speaker tracking — The 5K Ultra HD Quad Camera detects participants, frames the room and switches between active speakers, removing camera presets and operator involvement from every meeting.
• Documented pickup range — Cisco states microphone pickup from 4 m to 12.5 m [13.1 ft to 41.0 ft], so an integrator can size microphone placement against measured room depth.
• Three mounting configurations — Free-standing floor stand, wall-secured floor stand and wall mount kits are all published, so the same system suits rooms where the wall cannot carry the 113 kg load.
• Support window to February 2027 — Cisco's published last date of support of February 28, 2027 gives a defined planning horizon before a Board Pro 75 refresh is required.

Typical Applications

• Boardroom — dual-purpose people and content viewing on a 70-inch 4K panel at the head of a fixed table.
• Conference room — Cisco sizes the Room 70 for rooms seating up to 14 people, which covers most standard corporate meeting rooms.
• Training room — three supported screens and three local content sources let an instructor drive content and remote participants independently.
• Multi-purpose room — the floor stand configuration suits spaces where the wall cannot take a 113 kg system load.
• All-hands room — the integrated loudspeaker system with bass speaker carries a larger audience without an added reinforcement system.

Technical Specifications
