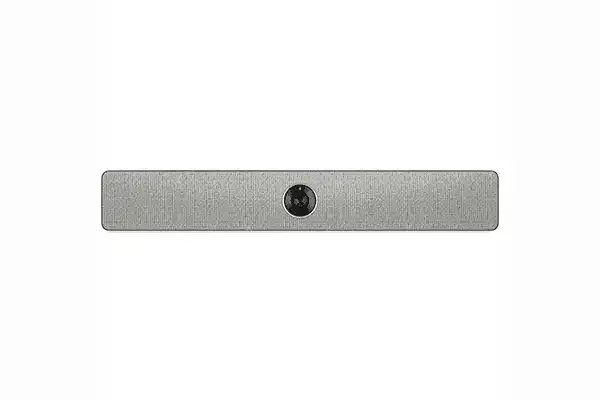

Cisco Webex Room Kit Mini CS-KIT-MINI-BUN-K9 – Huddle Room Bundle with Touch Controller

Product Overview

CS-KIT-MINI-BUN-K9 is the Cisco Webex Room Kit Mini supplied as a bundle with a touch controller. Cisco states the Room Kit Mini is ideal for huddle spaces with three to five people, and its defining feature is a 120-degree horizontal field of view that covers people sitting close to and to the side of the display. Cisco announced end-of-life on 30 April 2024, with end-of-sale on 18 June 2024, last ship on 18 September 2024 and a last date of support of 31 October 2029, naming the Cisco Room Bar as the migration product.

Product Description

The Room Kit Mini differs from the larger Room Kit in three ways that matter at specification time. It drives one HDMI output rather than two, so it is a single-display room only. It has no analog microphone inputs and no line out, so the internal microphones and integrated speakers are the entire audio path and cannot be extended. And it supports USB passthrough, which lets a laptop use the bar's camera, microphones and speakers as standard USB devices for any web conferencing service at 720p, with an HDMI cable to the external monitor.

That USB path is usually the deciding factor. A huddle space used by guests, contractors and staff on different platforms needs to work without a registered account, and the Room Kit Mini covers that case while still registering to the Webex cloud, to Cisco Unified Communications Manager 9.1(2) or later with the Room Kit Mini device pack, or to Cisco Expressway for scheduled Cisco calls.

The camera is 4K UltraHD with an 8 MP 1/2.5-inch sensor, 5x zoom and f/1.4, running up to 30 fps, with automatic framing by face detection and a physical privacy cover. Audio is a full-range speaker plus dual woofers in a balanced configuration covering 100 Hz to 20 kHz behind a 24 W amplifier at 84 dB maximum SPL. The bar is 19.7 x 3.2 x 3.0 inches and 4 lb, powered from 100-240 VAC to 12 V DC at 20 W average and 70 W peak, and Cisco specifies the FSP FSP070-AHAN2 or AcBel ADF019 supply. Compare current huddle-room options in small room collaboration and video bars, or browse Cisco for the wider range.

Key Features

• 120-degree horizontal field of view — A very wide lens covers people sitting close to and either side of the display, which is the normal geometry of a three to five person huddle space.
• USB passthrough for any conferencing service — One USB cable to a laptop turns the bar into a standard USB camera, microphone and speaker at 720p, which is the practical way to support guests and non-Cisco meetings.
• Physical privacy cover — A lens cover addresses the privacy objection that always-on cameras raise in small rooms used by many different people.
• Single-cable display connection — One HDMI output at up to 3840 x 2160p60 with CEC 2.0 drives a customer-supplied commercial panel, and CEC allows the bar to control display power.
• Integrated speakers with dual woofers — A full-range speaker plus dual woofers covering 100 Hz to 20 kHz behind a 24 W amplifier gives usable speech reproduction without a separate soundbar.
• Controller pairing over a dedicated port — The touch controller pairs directly to the bar over its own Ethernet port rather than over the building network, which simplifies deployment on restricted LANs.
• Compact bar for small rooms — At 19.7 x 3.2 x 3.0 inches and 4 lb the unit mounts above or below a display without a rack, a shelf or a separate codec.
• Support horizon to 2029 — Cisco's last date of support for the Room Kit Mini is 31 October 2029, so an installed huddle-room estate has a defined service life.
