Cisco Room Kit EQX CS-KIT-EQX-FSK-C – Floor Stand, Carbon Black

Product Overview

Not every room that suits a Room Kit EQX has a wall that can carry it. CS-KIT-EQX-FSK-C is the Carbon Black floor stand version of the Cisco Room Kit EQX mounting, chosen for glazed partitions, listed interiors, demountable fit-outs and any space where drilling a structural fixing is not an option. Cisco publishes the floor-stand assembly at 1910 mm high, 2800 mm long and 924 mm wide without screens, weighing 172 kg, and limits screens to 42 kg each on this configuration against 50 kg on the wall-mount and wall-stand versions. Room Kit EQX is a current Cisco product.

Product Description

The mounting decision drives more of the room design than most specifiers expect. A floor stand removes the structural survey from the programme but adds 924 mm of depth at the front of the room and reduces the permitted screen weight from 50 kg to 42 kg per screen, which can rule out heavier commercial panels. Confirm the weight of the intended displays before the order is placed.

Screen constraints are otherwise the same across all three EQX mounting versions. Two screens from 65 in. to 75 in. mount on the main module, with support for a third extra screen; certain 75 in. to 85 in. models are compatible when they meet the specific requirements Cisco sets out in the Room Kit EQX Room Preparation Guide. Mounting is 2 x VESA with 400 vertical and 400-600 horizontal adjustment, maximum screen thickness is 75 mm, and each screen requires its own power outlet. Choose commercial displays against those limits rather than the other way round.

Delivery and installation logistics matter at this weight. Cisco ships the floor stand in two packages: package 1, the floor stand kit, at 1652 x 971 x 226 mm and 45 kg, and package 2, the rear panels, at 1446 x 1089 x 320 mm and 20 kg. Access routes, lift capacity and the number of installers should be planned from those figures, since Cisco publishes no installer count or lift requirement for the assembly.

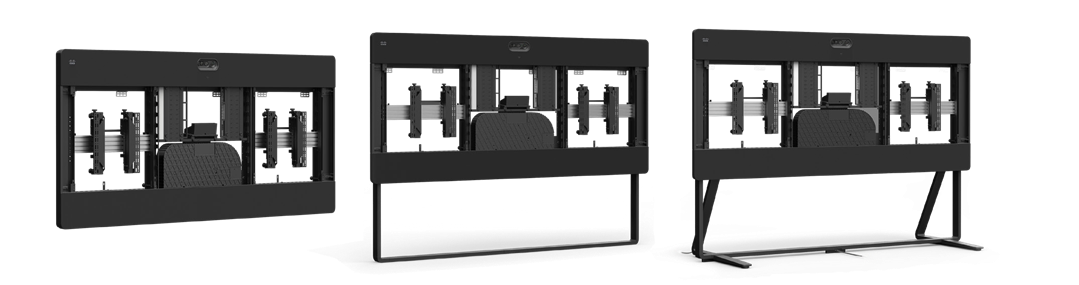

Cisco lists Carbon Black as the finish for the floor stand and wall stand versions, while the wall mount is offered in First Light and Carbon Black. The compliance model number TTC60-34 applies to all Room Kit EQX part numbers, and the system carries a 1-year limited liability warranty. For the system this stand carries, see large room solutions, and for other mounting hardware see display mounts.

Key Features

• Floor-standing installation — The stand removes the need for a structural wall fixing, which suits glazed partitions, demountable fit-outs and interiors where drilling is not permitted.
• Published assembly dimensions — Cisco states 1910 mm high, 2800 mm long and 924 mm wide without screens at 172 kg, so floor area and access routes can be planned exactly.
• 42 kg per screen limit — The floor stand configuration carries up to 42 kg per screen, against 50 kg on the wall-mount and wall-stand versions, which must be checked against the chosen display.
• VESA 400 mounting with lateral adjustment — Two VESA mounts with 400 vertical and 400-600 horizontal adjustment accommodate a range of 65 in. to 75 in. panels on the main module.
• Two-package delivery — The stand ships as a 45 kg floor stand kit and a 20 kg rear panel package, with published carton dimensions for planning access and lifting.
• Carbon Black finish — Cisco publishes Carbon Black as the finish for the floor stand version, matching the wall stand option.

Typical Applications

• Boardroom — a free-standing dual-screen system suits an executive room with glazed or non-structural walls.
• Conference room — the stand allows a full EQX system in a leased space where wall fixings are not permitted.
• Multi-purpose room — a floor-standing assembly can be positioned to suit changing room layouts.
• Commercial meeting space — demountable fit-outs get a flagship system without a structural survey.

Technical Specifications

Frequently Asked Questions

What does the floor stand change compared with the wall mount?

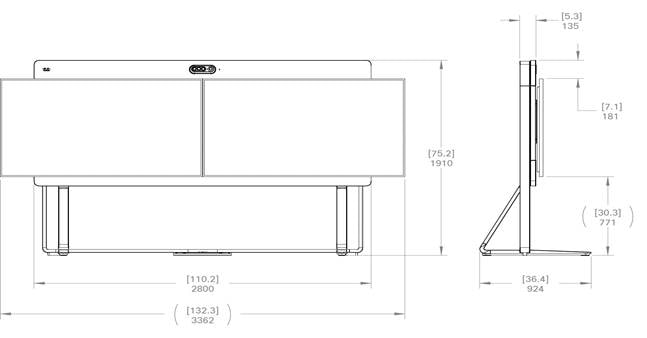

Cisco publishes the floor-stand version at 1910 mm high, 2800 mm long and 924 mm wide without screens, weighing 172 kg, and limits screens to 42 kg each. The wall-mount version is 1230 x 2800 x 138 mm at 120 kg and allows up to 50 kg per screen.

What screens can be mounted on it?

Screens from 65 in. to 75 in. mount on the main module, with support for a third extra screen. Cisco states certain 75 in. to 85 in. models are compatible when they meet specific requirements set out in the Room Kit EQX Room Preparation Guide. Maximum thickness is 75 mm and the recommended minimum resolution is 3840 x 2160 at 60 fps.

How does it arrive for installation?

Cisco publishes two packages: the floor stand kit at 1652 x 971 x 226 mm and 45 kg, and the rear panels at 1446 x 1089 x 320 mm and 20 kg. Cisco does not publish an installer count or lift requirement, so plan handling from those weights.

Is the display included?

No. Cisco states displays are not included in the Room Kit EQX bundle, and that each screen requires its own power outlet.

What finish is available?

Cisco lists the Room Kit EQX Floor Stand Version in Carbon Black. The Wall Mount Version is available in First Light and Carbon Black, and the Wall Stand Version in Carbon Black.

What warranty applies?

Cisco publishes a 1-year limited liability warranty for Cisco Room Kit EQX. Warranty is handled per Cisco's standard terms for this product class, so contact Creation Networks to confirm coverage for your order.
