Cisco Room Kit EQX CS-EQX-NOCODEC-C – No-Codec System, Carbon Black

Product Overview

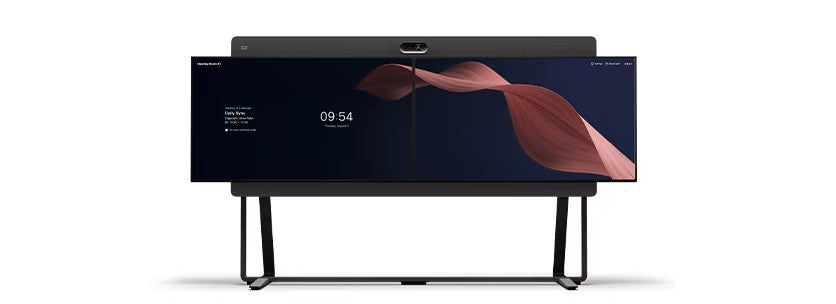

Estates that already own a Codec EQ do not always need to buy another one, and CS-EQX-NOCODEC-C exists for exactly that case: the Cisco Room Kit EQX in Carbon Black, supplied without a codec. The rest of the integrated assembly is unchanged, including the integrated Quad Camera, the Natural Audio Module IV amplifier, six coaxial loudspeakers and a folded bass horn rated to 105 dB SPL across 45 Hz to 20 kHz. Cisco lists this version with limited regional availability, so confirm supply before committing a design. Room Kit EQX is a current Cisco product.

Product Description

The no-codec version is a procurement instrument rather than a different room. It suits a customer migrating an existing Codec EQ into a new EQX-format space, an estate consolidating codec licensing, or a project where the codec has already been purchased under a separate agreement. Because the codec supplies the registration, video I/O and call-control behaviour, the specification of the finished room follows the Codec EQ fitted to it.

What the assembly does provide is the difficult part of an immersive room. Six coaxial loudspeakers plus a compact folded bass horn, driven by the 16-channel Natural Audio Module IV amplifier with Euroblock outputs rated at a maximum 25W into 8 ohm per channel at 0.1% THD and a maximum 200W total, deliver directional audio that follows where the active remote speaker appears on screen. The integrated camera uses four CMOS sensors of up to 20 MP per lens with machine-intelligent switching to produce a single 1080p output at up to 60 fps, with an 83-degree wide field of view and three 50-degree tele-lenses.

Displays are not included on any Room Kit EQX version. Two screens from 65 in. to 75 in. mount on the main module with support for a third extra screen, on 2 x VESA mounts with 400 vertical and 400-600 horizontal adjustment, at up to 50 kg per screen on the wall-mount and wall-stand versions or 42 kg on the floor stand, and a maximum thickness of 75 mm. Cisco recommends a minimum screen resolution of 3840 x 2160 at 60 fps; select commercial displays against those limits.

Audio pickup remains a separate design decision: up to eight Cisco IP microphone units or third-party AES67 microphones connect over the PoE++ ports, with more than three IP microphones requiring the Room Kit EQ AV Integrator license, so plan microphone coverage for the table. For complete systems that include the codec, see large room solutions.

Key Features

• Supplied without a codec — CS-EQX-NOCODEC-C lets an integrator reuse a customer's existing Cisco Codec EQ rather than purchase a second one; Cisco notes limited regional availability for this version.
• Integrated dual-screen assembly — The camera, amplifier, six loudspeakers and bass unit arrive as one factory-assembled module with internal cabling, reducing the room build to mounting the assembly and hanging two displays.
• Spatial audio that follows the speaker on screen — Six coaxial speakers plus a folded bass horn deliver directional audio reaching 105 dB SPL with a 45 Hz to 20 kHz response.
• Natural Audio Module IV amplifier — The integrated 16-channel amplifier exposes four analog Euroblock line inputs at up to 24 dBu and Euroblock speaker outputs rated 25W into 8 ohm per channel at 0.1% THD, with 200W total output.
• Integrated four-sensor camera — Four CMOS sensors of up to 20 MP per lens with machine-intelligent switching produce a single 1080p output at up to 60 fps, with an 83-degree wide field of view.
• Defined screen envelope — Cisco publishes exact screen constraints - 65 in. to 75 in. on the main module, VESA 400 vertical with 400-600 horizontal adjustment, up to 50 kg per screen wall-mounted or 42 kg on the floor stand, and 75 mm maximum thickness.
• Carbon Black finish — The no-codec version is published in Carbon Black, matching dark front-of-room treatments.
• AES67 and up to eight IP microphones — Audio over IP on the PoE++ ports supports up to eight Cisco IP microphone units or third-party AES67 microphones, with more than three requiring the AV Integrator license.

Typical Applications

• Boardroom — an immersive dual-screen assembly with spatial audio suits a flagship executive room where a codec is already owned.
• Large conference room — six loudspeakers and a bass unit at up to 105 dB SPL cover a substantial space without separate reinforcement.
• Multi-purpose room — a third display output supports a divisible-room feed alongside the two main screens.
• All-hands room — directional audio that follows the active speaker on screen suits large presentation spaces.
• Training room — the integrated camera with Frames mode gives remote attendees an equitable view of participants.

Technical Specifications

Frequently Asked Questions

What is not included in the no-codec version?

Cisco lists CS-EQX-NOCODEC-C as Cisco Room Kit EQX, No Codec, Carbon Black, with limited regional availability. The Codec EQ is not supplied, so registration, call control and the video inputs and outputs come from the codec the customer fits.

What is included in the assembly?

Cisco publishes the Room Kit EQX as an integrated system containing the codec, the integrated Quad Camera, the Cisco Natural Audio Module IV amplifier, six loudspeakers, one bass unit, a Cisco Room Navigator, the mounting unit, power adapters, a 12 m Ethernet cable for the Room Navigator and the internal cabling between the default components. On this version the codec is omitted.

What displays can be fitted?

Two screens from 65 in. to 75 in. mount on the main module and a third extra screen is supported. Mounting is 2 x VESA with 400 vertical and 400-600 horizontal adjustment, maximum 50 kg per screen on wall-mount and wall-stand configurations or 42 kg on the floor stand, maximum thickness 75 mm, and each screen needs its own power outlet.

What audio does the system provide?

Six coaxial loudspeakers and a compact folded bass horn with a dedicated bass module and amplifier, rated at a maximum output level of 105 dB SPL with a 45 Hz to 20 kHz frequency response. The Natural Audio Module IV is a 16-channel amplifier of which eight channels are in use.

How many microphones can be added?

Up to eight Cisco IP microphone units or third-party digital microphones over AES67. Cisco states that connecting more than three IP microphones requires the Room Kit EQ AV Integrator license under L-ROOM-PAK.

What are the mounting options and weights?

Cisco publishes wall mount at 1230 x 2800 x 138 mm and 120 kg, wall stand at 1890 x 2800 x 152 mm and 135 kg, and floor stand at 1910 x 2800 x 924 mm and 172 kg, all without screens.

What warranty applies?

Cisco publishes a 1-year limited liability warranty for Cisco Room Kit EQX. Warranty is handled per Cisco's standard terms for this product class, so contact Creation Networks to confirm coverage for your order.
