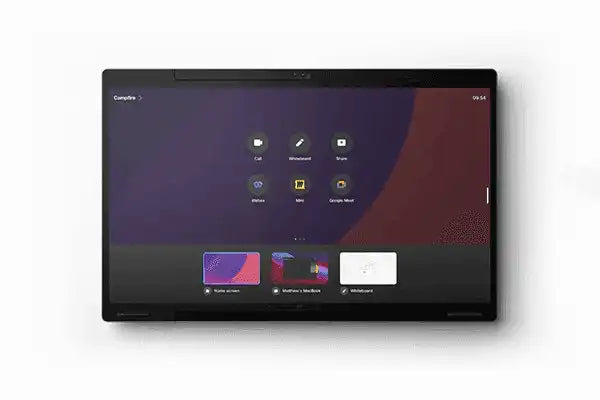

Cisco Board Pro 75 CS-BRD75P-NR-K9 – No-Radio 75-Inch Meeting Board

Product Overview

Where a room needs a larger shared surface but the site will not permit a wireless emitter, the CS-BRD75P-NR-K9 Cisco Board Pro 75 no-radio is the part number that satisfies both conditions: a 75-inch 4K touch board attached over structured cabling alone.

Cisco names Board Pro 75 SKUs as the announced replacement for the end-of-sale Webex Board 70S and Webex Board 85S, so this unit is frequently specified where an older S-series board has come out of a wall.

This is a first-generation part. Cisco announced end-of-life on May 28, 2024, ended sale on November 26, 2024, and set the last date of support at November 30, 2029, with the G2 and G3 Board Pro 75 units listed in the current ordering tables.

The board carries the dual 4K 12 MP camera system, the 14-element beamforming microphone array and the multi-channel loudspeaker system common to the G1 platform.

Product Description

The practical difference between this SKU and the standard K9 unit is what the site's security team has to review. With Wi-Fi and Bluetooth absent, the endpoint is a wired device on a switch port, which shortens the accreditation conversation in facilities where every radio has to be documented and approved.

Plan the physical install first. Cisco publishes a board-only weight of 72 kg and G1 dimensions of 1658 x 70 x 940 mm, so wall construction, backing and the lifting method all need to be settled during design rather than on the day. Lifting handles are included, a wall mount kit ships by default, and that kit is removed from the order when a wall stand or floor stand is selected instead.

Cabling is straightforward but there are three Ethernet runs to account for: the 10/100/1000 LAN port, the 802.3af PoE port with a 15.4 W budget that powers a Cisco Room Navigator, and a third port for external camera control. A separate audio-over-IP Ethernet port carries up to three Cisco Table Microphone Pro units when the room is deeper than the internal array covers.

Local input is a USB-C DisplayPort Alternate Mode connection at 4Kp60 plus an HDCP-compatible HDMI 2.0 type A input at 4Kp30, with one HDMI 2.0 type A output at 4Kp60. Main video runs at 1080p30 with content sharing at 4Kp15 and a maximum call bandwidth of 20 Mbps, using H.264, H.265 and H.263.

For registration, Cisco documents Webex activation, native on-premises registration to Unified Communications Manager or Expressway from 10.5.2 with the device pack, third-party H.323 gatekeepers and SIP proxies, and Microsoft Teams Rooms on Android. Minimum software is RoomOS 10.11.

Sites planning a wider refresh can compare current stock in video conference systems and interactive displays, while the mounting hardware for this family sits in display mounts.

Key Features

• Radios omitted from the build — Cisco lists Wi-Fi as not available in non-radio versions, so this unit joins the network on a wired port only.
• 75-inch 4K UHD multi-touch panel — The larger IPS display keeps content and remote participants legible from the back of a medium conference or training room without a second screen.
• Dual 4K 12 MP cameras — An 85-degree main lens and a 120-degree ultra-wide lens provide automatic best view and speaker tracking from the board itself.
• Published mounting weights — Cisco states a board-only weight of 72 kg for the G1 and G2 generations, so wall loading can be engineered before the install is scheduled.
• Documented replacement for older S-series boards — Cisco names CS-BRD75P-K9 as the migration part for the Webex Board 70S and Webex Board 85S, making the 75-inch Board Pro the like-for-like path off that hardware.
• Dedicated PoE port for a Room Navigator — The 802.3af port with a 15.4 W budget removes the need for an injector or a spare switch port at the table.
• Audio expansion over Ethernet — Up to three Cisco Table Microphone Pro units connect over the audio-over-IP port for rooms deeper than the internal array covers.

Typical Applications

• Government space — Wired-only attachment suits sites where wireless emitters require a waiver that is not worth the delay.
• Boardroom — The 75-inch panel carries shared content across a longer table than the 55-inch model.
• Training room — Cisco's Board Pro datasheet names training rooms as an intended environment, and the larger panel helps at the back row.
• Multi-purpose room — A single all-in-one endpoint replaces a separate display, camera, microphone and codec stack in rooms that change function week to week.

Technical Specifications

Frequently Asked Questions

Which older Cisco boards does the Board Pro 75 replace?

Cisco names CS-BRD75P-K9 as the migration part for both the Webex Board 70S and the Webex Board 85S, so a 75-inch Board Pro is the documented replacement for an installed 85-inch S-series board.

Is this part still current?

No. Cisco announced end-of-life for Board Pro 75 G1 on May 28, 2024, with end of sale on November 26, 2024 and a last date of support of November 30, 2029. It is sold now for installed-base support and break/fix work.

How much does the board weigh for mounting purposes?

Cisco publishes a board-only weight of 72 kg for the G1 and G2 Board Pro 75. Lifting handles are supplied and the wall structure should be assessed in advance.

How many network drops does the room need?

Cisco lists a LAN port, a separate 802.3af PoE port for the Room Navigator, an external camera control port and an audio-over-IP port. Pull cable for the ports the design actually uses.

Is the board powered over Ethernet?

No. The Board Pro 75 takes mains power at 4.0-2.0 A, 100-240 V, 50/60 Hz, Class I. The PoE port on the board is an output for the touch controller.

What is the maximum call bandwidth?

Cisco specifies up to 20 Mbps, with main video at 1080p30 and content sharing at 4Kp15 on this generation.

What warranty applies to an end-of-sale unit?

Cisco publishes a 90-day limited liability warranty for this product class. Warranty is handled per Cisco's standard terms for the product; contact Creation Networks to confirm coverage for your order.
