Cisco Room Bar CS-BAR-L-UK9 – First Light Standalone BYOD Video Bar

Product Overview

A bring-your-own-device room does not need a touch panel, and CS-BAR-L-UK9 is the Cisco Room Bar priced and packaged accordingly. Cisco states that when the Room Bar is ordered for BYOD-only mode the Room Navigator touch panel is not included, which is what the U in this part number signals; the bar is supplied in First Light. Users connect a laptop with one USB-C cable and get the bar's camera, microphone and speakers plus content sharing and display extension. Integrators pairing their own control system also buy this SKU. The Room Bar is current Cisco product.

Product Description

The single-cable model is what makes this configuration work in practice. USB-C passthrough presents the bar as a camera, microphone and speaker set to the connected computer, carries content sharing on the same cable, and extends the desktop to 3840 x 2160 at 30 fps where the laptop supports Alt-mode DisplayPort. Any meeting platform the user runs on the laptop therefore works without the bar being registered anywhere.

That does not preclude adding a managed mode later. The same hardware runs native RoomOS for Webex with Microsoft Teams, Zoom and Google Meet interoperability, or the native Microsoft Teams Rooms on Android application, and registers on premises to Cisco Unified Communications Manager 12.5(1) or later with the Room Bar device pack or to Expressway. A Room Navigator added on the bar's dedicated PoE port converts a BYOD room into a managed one.

Room design follows Cisco's published guidance: the 4-element beamforming array is optimised for up to five people seated within three metres, with an external microphone recommended for larger groups. The bar is 21 in. (53.4 cm) wide and 3.3 lb (1.5 kg), and drives up to two displays at 3840 x 2160 at 60 fps. Compare configurations in video bars and complete kits in meeting room bundles.

Budget the power separately from the data: Cisco specifies the PSU-12VDC-86W supply at 100 to 240 VAC into 12 V DC, 86 W peak, and the bar is not PoE-powered. Small-room options are grouped under small room collaboration.

Key Features

• Standalone BYOD unit — Cisco states the Room Navigator is not included when the bar is ordered for BYOD-only mode, which lowers the cost of rooms driven from a laptop or a third-party control system.
• USB-C BYOD passthrough — One USB-C cable gives a guest laptop the bar's camera, microphone and speakers, and carries content sharing and display extension to 3840 x 2160 at 30 fps on the same cable.
• Room Navigator PoE port — A dedicated 100/1000 Mbps PoE Ethernet port powers and pairs a Cisco Room Navigator touch panel directly from the bar, removing the need for a separate injector or switch port.
• Dual-platform registration — The same hardware runs native RoomOS for Webex with Microsoft Teams, Zoom and Google Meet interoperability, or the native Microsoft Teams Rooms on Android application.

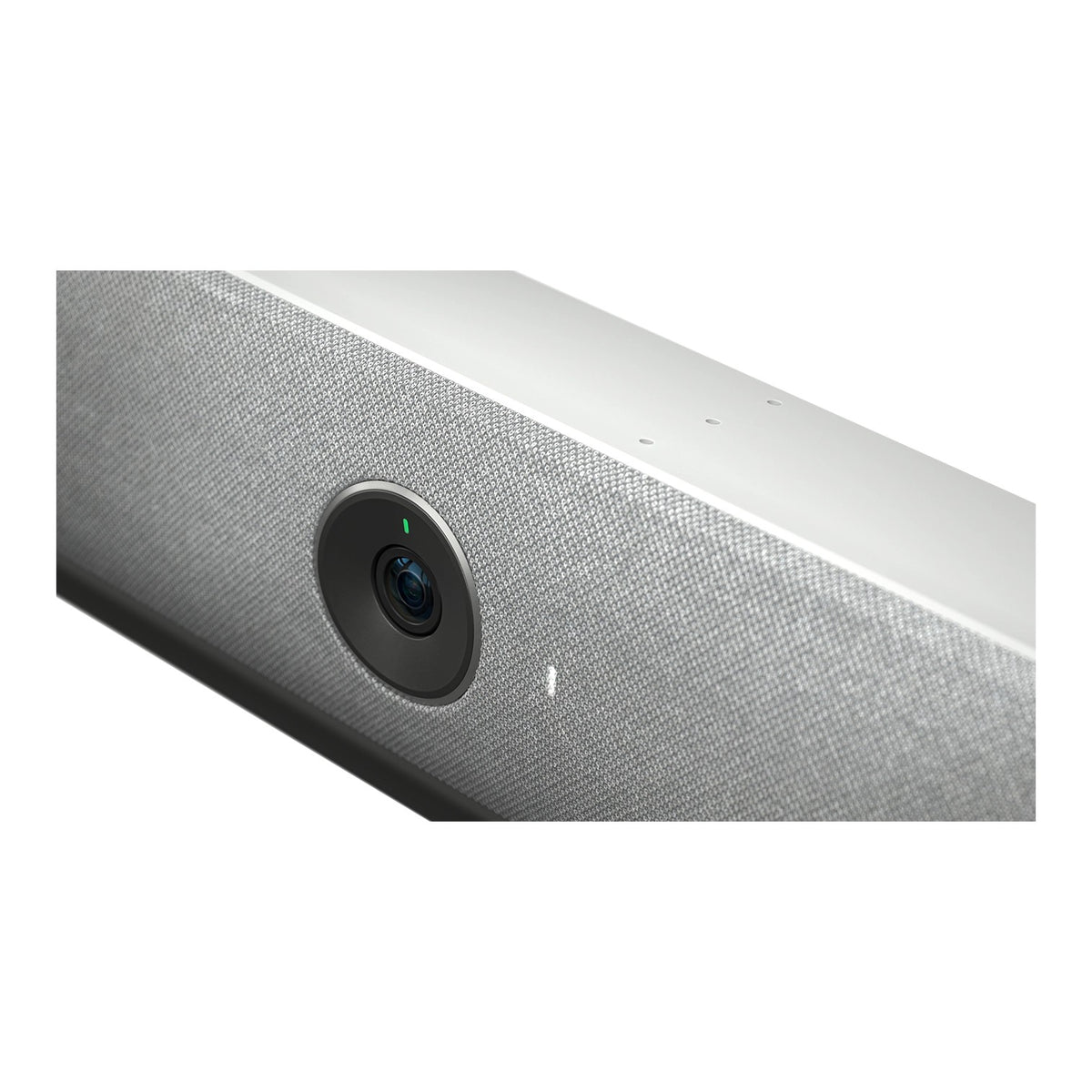

• 12 MP camera with 120-degree field of view — A 1/2.3 inch CMOS sensor at f/2.5 with 5x digital zoom, auto framing, speaker tracking and Frames mode keeps small-room participants correctly framed at 30 fps.
• Beamforming pickup and directional stereo — A 4-element beamforming array with AI-powered noise removal and de-reverberation pairs with a stereo full-range loudspeaker system rated to 93 dB maximum SPL and 100 Hz to 20 kHz.
• Dual-screen support — Two HDMI outputs supporting up to 3840 x 2160 at 60 fps drive two displays from a single video bar without an external codec or splitter.
• CEC 2.0 display control — Consumer Electronics Control 2.0 on the HDMI outputs wakes and switches the display with the meeting, so users are not handed a display remote.
• Invertible mounting with gap bar — The consolidated mounting unit fits walls and screens above or below the display, and the bar can be inverted with the speaker grille flipped separately to keep cable runs short.

Typical Applications

• Huddle room — Cisco optimises the internal microphone array for huddle spaces with up to five people seated within three metres of the device.
• Conference room — A small bookable meeting room gets camera, microphone, speakers and codec from one bar mounted above or below the display.
• Multi-purpose room — Dual HDMI outputs and USB-C BYOD passthrough let one room serve managed meetings, guest laptops and content playback without reconfiguration.
• Commercial meeting space — Managed offices and multi-tenant suites can standardise on one bar per room and manage the estate centrally in Control Hub.
• Training room — Content at 3840 x 2160 and a second display let trainees see material and remote participants at the same time, with an external microphone added for larger groups.

Technical Specifications

Frequently Asked Questions

Is a Room Navigator included?

No. The U designator marks a standalone BYOD unit and Cisco states the Room Navigator touch panel is not included on those SKUs. Order a Navigator separately, or use the T or W bundle part numbers if a panel is required in the box.

Does it work as a USB device for a guest laptop?

Yes. USB-C passthrough provides camera, microphone and speakers to a connected computer over a single cable, carries content sharing on the same cable, and extends the display to 3840 x 2160 at 30 fps where the computer supports Alt-mode DisplayPort.

What call-control platforms does it register to?

Native RoomOS for Webex managed in Control Hub, with video interoperability for Microsoft Teams, Zoom and Google Meet; or the native Microsoft Teams Rooms on Android application; or on-premises registration to Cisco Unified Communications Manager 12.5(1) or later with the Room Bar device pack, to Expressway, or to third-party H.323 gatekeepers and standards-based SIP proxies.

How is the Room Bar powered?

By an external power supply, not PoE. Cisco specifies 100 to 240 VAC, 50/60 Hz with a 12 V DC input at 86 W peak, and states the unit must be used with power supply PSU-12VDC-86W. Consumption is 14.3 W in an active meeting, 8.2 W idle and 7 W in networked standby.

What size room does the Room Bar suit?

Cisco publishes no headline room-size rating. It states the internal microphone array is optimised for huddle spaces and small meeting rooms with up to five people seated within three metres of the device, and recommends adding an external microphone in mid-sized rooms with more than five people.

How many displays can it drive?

Two. Cisco publishes 2x HDMI outputs supporting formats up to 3840 x 2160 at 60 fps with CEC 2.0, and they are touchscreen compatible when used together with the USB-A input for touch signalling.

Can external microphones be added?

Yes. Cisco lists one analog microphone input, one USB 2.0 type A port for a USB microphone, and audio over IP for one Cisco IP microphone via the PoE port. Cisco does not state a maximum number of external microphones for the Room Bar.

What warranty applies?

Cisco publishes a 1-year limited liability warranty for the Room Bar. Warranty is handled per Cisco's standard terms for this product class — contact Creation Networks to confirm coverage for your order.
