Cisco Room Bar CS-BAR-C-UK9 – Carbon Black Standalone Video Bar

Product Overview

Mounted directly under a commercial display, a video bar is either invisible or conspicuous, and finish is the difference. CS-BAR-C-UK9 is the Carbon Black Cisco Room Bar — one of the two finishes Cisco documents for this family alongside First Light — supplied as a standalone BYOD unit, which Cisco states means the Room Navigator touch panel is not included. It suits dark-finished rooms, black bezel displays and installations where the AV hardware is meant to disappear into the wall. The Room Bar is current Cisco product.

Product Description

The mounting design supports that intent. Cisco's consolidated mounting unit fits walls and screens, includes a gap bar to cover the space between the bar and the display, and allows installation above or underneath the screens; when fitted underneath, the unit can be turned upside down and the speaker grille removed and flipped separately so the finish stays aligned. The bar is 21 in. (53.4 cm) wide, 3.2 in. (8.2 cm) high and 2.5 in. (6.4 cm) deep at 3.3 lb (1.5 kg).

As a standalone unit it is specified for rooms driven from a laptop rather than a panel. USB-C passthrough delivers camera, microphone and speakers to a connected computer over one cable, carries content sharing on the same cable, and extends the display to 3840 x 2160 at 30 fps where the computer supports Alt-mode DisplayPort. A Room Navigator can be added later on the bar's dedicated PoE port.

The room itself is unchanged from any other Room Bar: a 12 MP 1/2.3 inch camera at 120 by 95 degrees with auto framing and speaker tracking, a 4-element beamforming microphone array optimised for up to five people within three metres, and two HDMI outputs to 3840 x 2160 at 60 fps with CEC 2.0 display control. Browse finishes and formats in video bars and displays in commercial displays.

Power is from the PSU-12VDC-86W supply Cisco specifies; the bar is not PoE-powered, so allow a socket behind the display. Complete small-room packages are listed under small room collaboration.

Key Features

• Carbon Black finish — Cisco documents First Light and Carbon Black for the Room Bar, and the darker finish disappears against black-bezel displays and dark wall treatments.
• Standalone BYOD unit — Cisco states the Room Navigator is not included when the bar is ordered for BYOD-only mode, so the control surface is a separate decision and a separate cost.
• Invertible mounting with gap bar — The consolidated mounting unit fits walls and screens above or below the display, and the bar can be inverted with the speaker grille flipped separately to keep cable runs short.
• USB-C BYOD passthrough — One USB-C cable gives a guest laptop the bar's camera, microphone and speakers, and carries content sharing and display extension to 3840 x 2160 at 30 fps on the same cable.

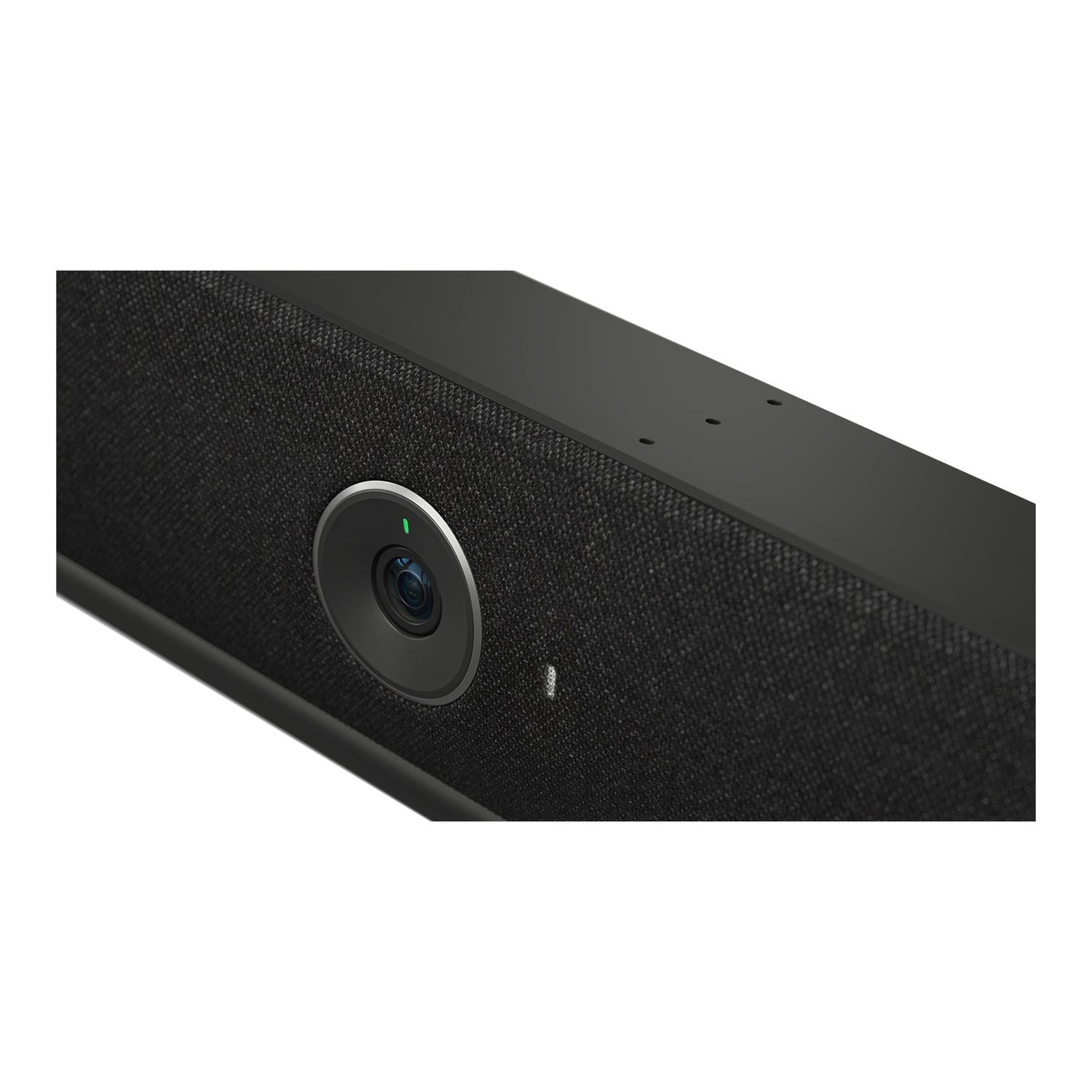

• 12 MP camera with 120-degree field of view — A 1/2.3 inch CMOS sensor at f/2.5 with 5x digital zoom, auto framing, speaker tracking and Frames mode keeps small-room participants correctly framed at 30 fps.
• Beamforming pickup and directional stereo — A 4-element beamforming array with AI-powered noise removal and de-reverberation pairs with a stereo full-range loudspeaker system rated to 93 dB maximum SPL and 100 Hz to 20 kHz.
• Dual-screen support — Two HDMI outputs supporting up to 3840 x 2160 at 60 fps drive two displays from a single video bar without an external codec or splitter.
• CEC 2.0 display control — Consumer Electronics Control 2.0 on the HDMI outputs wakes and switches the display with the meeting, so users are not handed a display remote.
• Camera privacy cover and on-air LED — A physical privacy cover ships with the bar and a green Camera On LED indicates when the lens is live, which addresses the usual objection in shared and confidential spaces.

Typical Applications

• Huddle room — Cisco optimises the internal microphone array for huddle spaces with up to five people seated within three metres of the device.
• Conference room — A small bookable meeting room gets camera, microphone, speakers and codec from one bar mounted above or below the display.
• Multi-purpose room — Dual HDMI outputs and USB-C BYOD passthrough let one room serve managed meetings, guest laptops and content playback without reconfiguration.
• Commercial meeting space — Managed offices and multi-tenant suites can standardise on one bar per room and manage the estate centrally in Control Hub.

Technical Specifications

Frequently Asked Questions

Is a Room Navigator included?

No. The U designator marks a standalone BYOD unit and Cisco states the Room Navigator touch panel is not included. The bar has a dedicated PoE Ethernet port for direct Navigator pairing if one is added later.

What finishes does Cisco publish for the Room Bar?

Cisco documents two finishes for this family, First Light and Carbon Black. No other colourways are published for the Room Bar.

How does the Room Bar mount?

A consolidated mounting unit for walls and screens ships in the box, with a gap bar to cover the space between the bar and the display. It supports mounting above or underneath the screens, and when fitted underneath the unit can be inverted with the speaker grille removed and flipped separately.

Does it work as a USB device for a guest laptop?

Yes. USB-C passthrough provides camera, microphone and speakers to a connected computer over a single cable, carries content sharing on the same cable, and extends the display to 3840 x 2160 at 30 fps where the computer supports Alt-mode DisplayPort.

How many displays can it drive?

Two. Cisco publishes 2x HDMI outputs supporting formats up to 3840 x 2160 at 60 fps with CEC 2.0, and they are touchscreen compatible when used together with the USB-A input for touch signalling.

How is the Room Bar powered?

By an external power supply, not PoE. Cisco specifies 100 to 240 VAC, 50/60 Hz with a 12 V DC input at 86 W peak, and states the unit must be used with power supply PSU-12VDC-86W. Consumption is 14.3 W in an active meeting, 8.2 W idle and 7 W in networked standby.

What size room does the Room Bar suit?

Cisco publishes no headline room-size rating. It states the internal microphone array is optimised for huddle spaces and small meeting rooms with up to five people seated within three metres of the device, and recommends adding an external microphone in mid-sized rooms with more than five people.

What warranty applies?

Cisco publishes a 1-year limited liability warranty for the Room Bar. Warranty is handled per Cisco's standard terms for this product class — contact Creation Networks to confirm coverage for your order.
