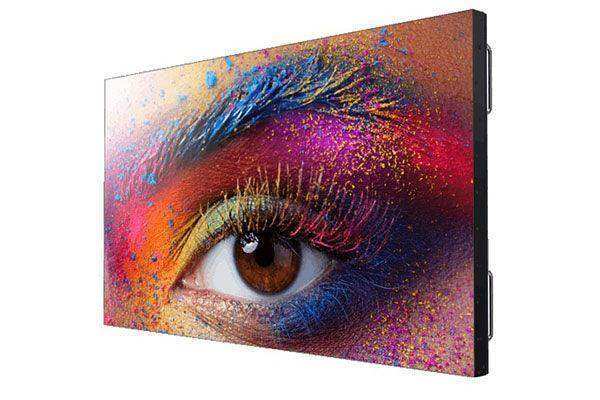

Christie FHD554-X Ultra Series 55” FHD 500-nit, ultra-narrow bezel LCD video wall - 135-046101-01

Product Overview

The Christie FHD554-X (135-046101-01) is an Ultra Series 55-inch FHD LCD video wall panel with 500-nit brightness and an ultra-narrow 3.5mm combined bezel. It accepts 4K UHD signals at 60Hz over HDMI 2.0 and DisplayPort 1.2 with HDCP 2.2, and its DisplayPort output daisy-chains 4K sources across up to 25 panels. Factory calibration and panel matching keep the wall uniform, and an OPS slot adds processing or media player options.

Product Description

The FHD554-X brings high-bandwidth 4K signal handling to a 1920x1080 tiled wall platform: each panel ingests 4K UHD at 60Hz, and built-in scaling distributes that content across configurations up to 10x10. HDMI 2.0 and DisplayPort 1.2 inputs with HDCP 2.2 compliance support protected 4K streaming sources, while the DisplayPort 1.2 output daisy-chains 4K 60Hz signals through as many as 25 panels, simplifying cabling on larger walls. The 3.5mm combined bezel keeps mullions unobtrusive for monitoring and signage content. On-board processing covers video wall scaling, bezel compensation, and staggered power-up, and the OPS slot accepts processing upgrades for control rooms or media players for signage. With 500-nit brightness, direct-lit LED backlight, 5000:1 full-field contrast, TAA compliance, non-RF design, 24/7 rating, and portrait/landscape support, the FHD554-X fits both secure operations environments and commercial deployments. Each panel ships factory-calibrated and matched for fast, uniform installs.

Key Features

• Ultra-Narrow 3.5mm Combined Bezel — near-seamless tiled image for monitoring and signage.
• 4K UHD 60Hz Input — high-bandwidth signal support for less flicker and better motion.
• HDMI 2.0 + DisplayPort 1.2 with HDCP 2.2 — compatible with protected 4K streaming content.
• DisplayPort Daisy-Chain — 4K 60Hz loop-through across up to 25 panels reduces cabling.
• Built-in 10x10 Scaling — maps 4K signals across walls up to 100 panels.
• OPS Slot — add processing for control rooms or media players for digital signage.
• 500-nit Brightness, 5000:1 Contrast — suited to continuously lit operations environments.
• TAA-Compliant and Non-RF — deployable in government and security-conscious facilities.
• 24/7 Operation — rated for continuous duty.
• Factory Calibrated and Matched — uniform color and brightness wall-wide.

Typical Applications

The FHD554-X serves control rooms and security operations centers, broadcast monitoring, government facilities requiring TAA-compliant non-RF displays, corporate lobbies, and digital signage walls. The daisy-chain architecture makes it efficient for mid-to-large arrays. Explore the Extreme Series and mounts in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Can a 1080p panel really handle 4K content?
Yes. Each panel accepts 4K UHD 60Hz input and the built-in scaling distributes that content across the tiled wall, up to 10x10 panels.

How does daisy-chaining work?
The DisplayPort 1.2 output loops a 4K 60Hz source through up to 25 panels, drastically reducing home-run cabling.

Is it suitable for government deployments?
Yes. The FHD554-X is TAA-compliant and non-RF for security-conscious facilities.

What can the OPS slot hold?
Processing modules for control room sources or media players for digital signage applications.

How does it compare to the FHD554-XZ?
The FHD554-X has a 3.5mm combined bezel; the Extreme Series XZ narrows that to 0.88mm for the most seam-critical walls.
