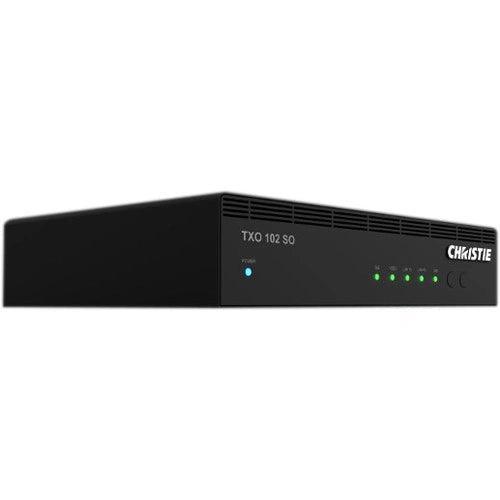

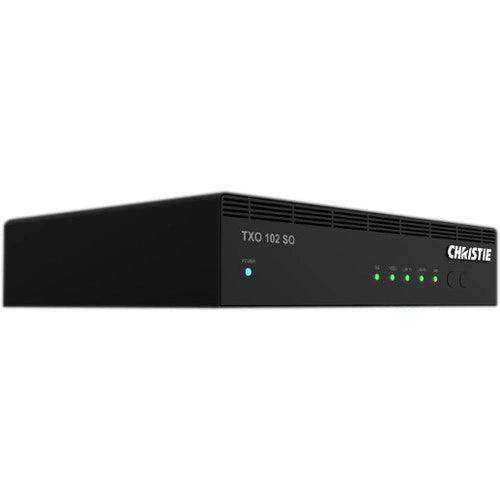

Christie TXO 102 SO Terra Transmitter
Product Overview
The Christie TXO 102 SO Terra Transmitter (166-001102-01) is an SDVoE source endpoint that processes audiovisual and control signals for delivery over standard 10G networks. It supports video resolutions up to 4K@60Hz with zero-frame latency transport (under 100 microseconds) and accepts HDMI 2.0a or DisplayPort 1.2 input with HDCP 2.2 compliance. Routable control connections include RS-232, bidirectional IR, USB 2.0, and Gigabit Ethernet. As an SDVoE-compliant device, it works within Christie Terra systems or alongside third-party SDVoE components.
Product Description
The Terra Transmitter sits at the source end of an AV-over-IP system, encoding content for transport across a 10G network without the compression artifacts or delay of conventional streaming. Video is uncompressed, except for 4K/60 formats (8-bit 4:4:4, 10-bit 4:2:2, 10-bit and 12-bit 4:2:0), which use an artifact-free, ultra-lightweight 1.3-to-1 compression ratio. One switchable input accepts HDMI 2.0a or DisplayPort 1.2 up to 4096x2160 at 60Hz, with HDR, 3D, and Deep Color pass-through. On-board processing handles color space, bit depth, and frame rate conversion plus broadcast-quality scaling in both directions. Audio support spans analog stereo via 3.5mm input and HDMI-embedded multi-channel PCM, Dolby TrueHD, and DTS-HD Master Audio. Routable RS-232, bidirectional IR, USB 2.0 (for KVM), and 1000BaseT Ethernet extend control alongside the video. Content rides a 10G SFP+ link with AES 128-bit encryption, and a 10GBASE-SR SFP+ transceiver for OM3/OM4 multimode fiber is supplied. Front LEDs validate video, transmit/receive, Ethernet, USB, and power status. See the full Terra system in our Christie Digital collection.
Key Features
- 4K@60Hz Support — one switchable HDMI 2.0a / DisplayPort 1.2 input up to 4096x2160 at 60Hz, HDCP 2.2 compliant.
- Zero-Frame Latency — transport latency under 100 microseconds for real-time monitoring and KVM.
- Uncompressed 4:4:4 Quality — pixel-perfect video; 4K/60 formats use artifact-free 1.3:1 lightweight compression.
- HDR and Deep Color Pass-Through — maintains enhanced image information, including 3D support.
- Complete Control Connectivity — routable RS-232, bidirectional IR, USB 2.0, and Gigabit Ethernet.
- KVM Functionality — endpoints can access and control AV sources with keyboard and mouse.
- Intelligent EDID and HDCP Management — system-wide handling across multiple sources and displays.
- Broad Audio Support — analog stereo plus HDMI-embedded PCM, Dolby TrueHD, and DTS-HD Master Audio.
- Encrypted 10G Transport — AES 128-bit content encryption over SFP+; 10GBASE-SR transceiver included.
- Broadcast-Quality Scaling — color space, bit depth, frame rate conversion, up- and downscaling on board.
Typical Applications
The Terra Transmitter anchors AV-over-IP source distribution in campus and enterprise AV systems, control rooms and operations centers, command-and-control facilities, medical and simulation environments, and KVM-driven workflows that demand uncompressed 4K with effectively zero latency.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer Part Number | 166-001102-01 (Model TXO102SO) |
| Video In | One switchable input: HDMI 2.0a or DisplayPort 1.2; HDCP 2.2; max 4096x2160@60Hz (8-bit 4:4:4, 10-bit 4:2:2, 10/12-bit 4:2:0); HDR, 3D, Deep Color pass-through; 594 MHz max bandwidth |
| Audio In | Analog stereo line level (3.5mm); HDMI embedded multi-channel PCM, Dolby TrueHD, DTS-HD Master Audio |

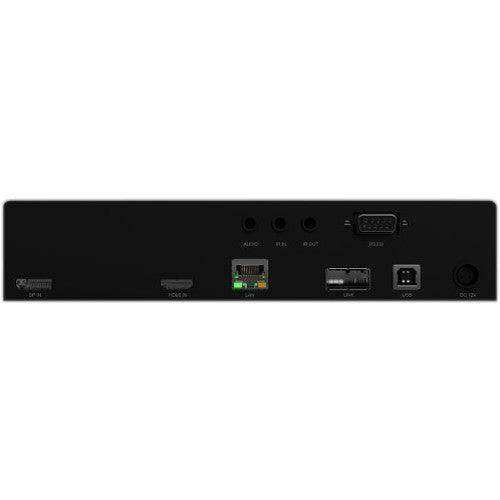

| Routable Control | RS-232 (9-pin D, up to 115.2k baud); wired IR in/out (3.5mm); USB 2.0 Type-B; 1000BaseT Ethernet RJ45 |
| Video Processing | Uncompressed (4K/60 formats use artifact-free 1.3:1 compression); color space, bit depth, frame rate conversion; broadcast-quality up/downscaling |
| Latency | Zero-frame latency transport, <100 microseconds |
| Network | 10G Ethernet SFP+ (content/control); optional 1000BaseT RJ45; IP, TCP, UDP, IPv4, IGMPv2; AES 128-bit encryption; 10GBASE-SR SFP+ 850nm LC transceiver included (OM3/OM4) |

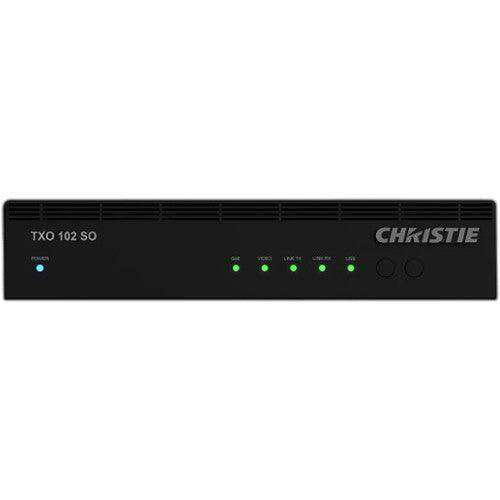

| Front Panel | LED link validation (video, Tx/Rx, 1G Ethernet, USB, power); input switch button; programmable button (future) |
| Dimensions (WxHxD) | 8.41 x 1.66 x 6.22" (213.5 x 42 x 158 mm) case only; 8.41 x 1.66 x 6.50" (213.5 x 42 x 165 mm) with connectors |
| Weight | 2.3 lb (1.1 kg) excluding power supply; 2.8 lb (1.3 kg) with power supply |
| Power | External supply: 100–240 VAC, 50–60 Hz in; 12V DC, 3.0A, 36W max out; typical 10W, 35 BTU |
| Environment | Operating 0–40°C; storage -20–60°C; 20–90% RH non-condensing; <38 dBA at 0.5m typical |
| Reliability | MTBF >50,000 hours; MTTR <15 minutes |
| Regulatory | CE/FCC Class A; RoHS, WEEE, REACH |
| Warranty | Limited two years parts and labor |
| UPC | 723466962605 |
Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Is the video truly uncompressed?
Video is uncompressed except for 4K/60 input formats (8-bit 4:4:4, 10-bit 4:2:2, 10/12-bit 4:2:0), which use an ultra-lightweight, artifact-free 1.3-to-1 compression ratio per Christie vendor data.
What inputs does the transmitter accept?
One switchable input handles HDMI 2.0a or DisplayPort 1.2 up to 4096x2160@60Hz with HDCP 2.2, plus analog stereo audio via 3.5mm jack.
Does it support KVM?
Yes. USB 2.0 is routed alongside the video so endpoints can access and control AV sources with keyboard and mouse interfaces.
What fiber transceiver is included?
It ships with a generic coded 10GBASE-SR SFP+ 850nm LC-LC transceiver for OM3 or OM4 multimode fiber.
Will it work with third-party SDVoE gear?
Yes. The transmitter is SDVoE-compliant and operates with third-party SDVoE components, displays, and devices as well as Christie Terra systems.
