Christie Twin HDMI Input Card - 108-311101-01
Christie Twin HDMI Input Card - 108-311101-01 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Christie Twin HDMI Input Card - 108-311101-01
Product Overview

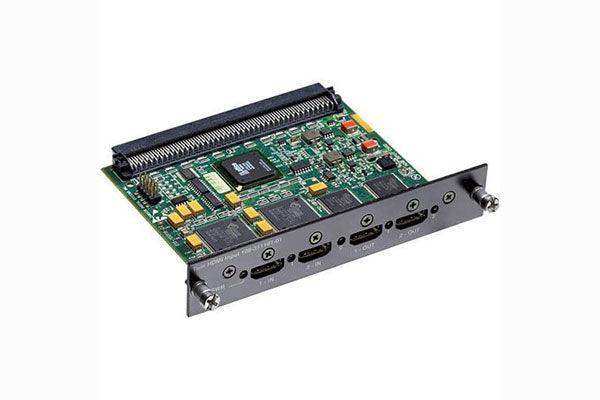

The Christie Twin HDMI Input Card (108-311101-01) is an optional input card that adds HDMI input and output capability to Christie M Series and J Series projectors. The card accepts two HDMI inputs with 12-bit Deep Color handling and provides two HDMI outputs. Advanced loop-through allows any input on any installed input card to be routed to the card's HDMI outputs. It is a straightforward way to expand HDMI connectivity on modular Christie projection platforms.
Product Description
Christie's M and J Series projectors use a modular card-cage input architecture, and the Twin HDMI Input Card is the HDMI module for that system. With two HDMI inputs on a single card, a projector can switch between two HDMI sources without external switching hardware, while 12-bit Deep Color handling on the input preserves source bit depth. The two HDMI outputs support advanced loop-through: any input on any card in the projector — not just the HDMI inputs — can be looped to the outputs, which is useful for daisy-chaining signal to additional projectors in stacked or blended arrays, or for feeding confidence monitors. Installation follows the standard Christie option-card procedure in a compatible card slot. Per vendor data, the card's packaged weight is 0.6 lb with box dimensions of 13.3 x 6.6 x 2.7 inches. Find more Christie input cards and accessories in our Christie Digital collection.
Key Features
- Two HDMI Inputs — connect two HDMI sources to a single option-card slot.
- Two HDMI Outputs — pass signal downstream for daisy-chained projectors or monitoring.
- 12-Bit Deep Color Handling — preserves high bit-depth source content on the input.
- Advanced Loop-Through — route any input from any installed card to the HDMI outputs.
- M and J Series Compatibility — fits the modular input card architecture of Christie M and J Series projectors.
Typical Applications
Used to expand HDMI connectivity in Christie M and J Series projection systems — staging and rental rigs, auditoriums, and multi-projector blends where loop-through outputs simplify signal distribution across stacked or arrayed projectors.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer Part Number | 108-311101-01 |
| Product Type | Projector input card |
| Inputs | 2 x HDMI |
| Outputs | 2 x HDMI |
| Color Handling | 12-bit Deep Color on input |
| Loop-Through | Any input on any input card can loop to the 2 HDMI outputs |
| Compatible Projectors | Christie M Series and J Series |
| Package Weight | 0.6 lb |
| Box Dimensions (LxWxH) | 13.3 x 6.6 x 2.7" |
Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Which projectors accept the Twin HDMI Input Card?
Per Christie vendor data, the 108-311101-01 card is used to add HDMI input and output to Christie M Series and J Series projectors.
What does the loop-through feature do?
Advanced loop-through allows any input on any input card installed in the projector to be routed to the card's two HDMI outputs — useful for feeding additional projectors in a stack or blend, or driving a confidence monitor.
Does the card support Deep Color?
Yes. The card provides 12-bit Deep Color handling on the HDMI inputs.
How many sources can I connect to this card?
The card accepts two HDMI inputs, letting a single option slot handle two HDMI sources.
