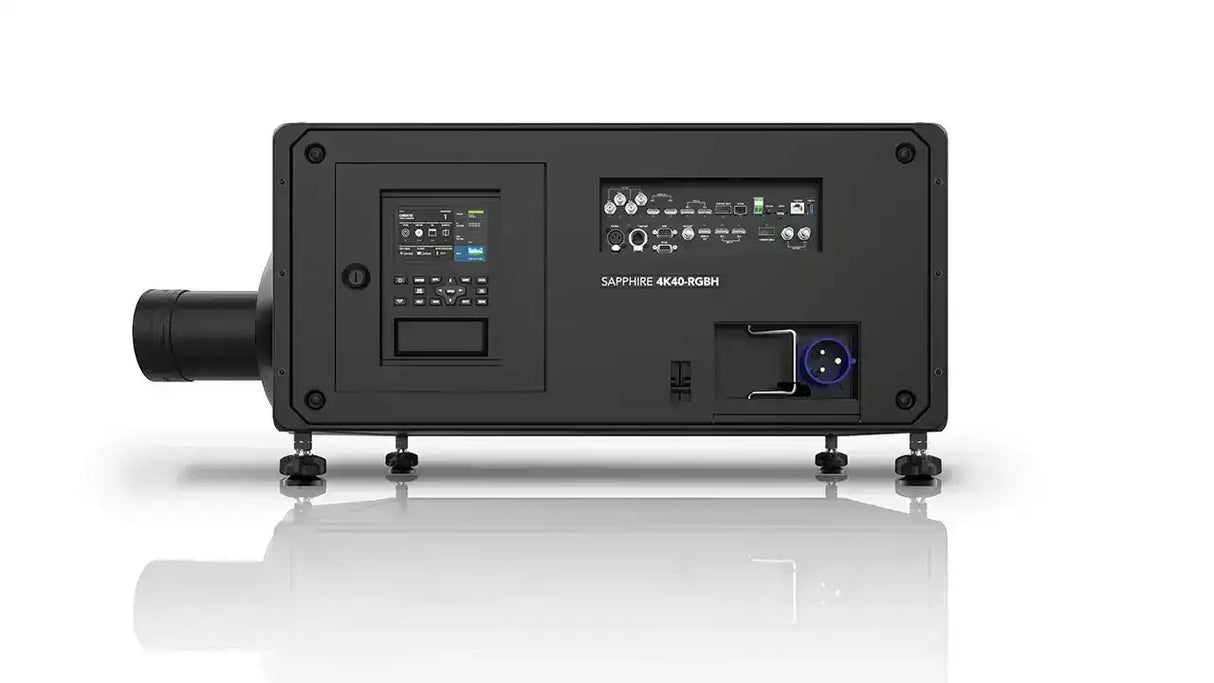

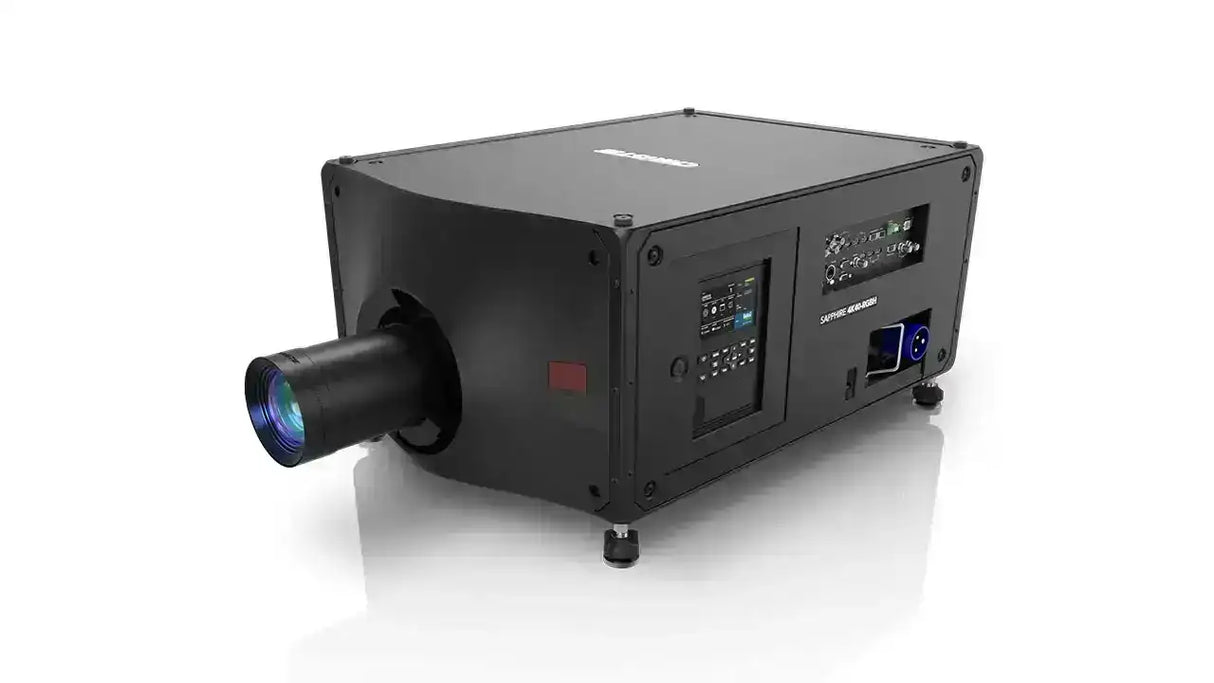

Christie Sapphire 4K40-RGBH 40,000 lumens, 3DLP, native 4K projector

Product Overview

The Christie Sapphire 4K40-RGBH is the world's first high-brightness hybrid RGB pure laser and laser phosphor projector, producing 40,000 ISO lumens at native 4K (4096 x 2160) resolution. Built on a dust-sealed 1.38-inch 3DLP light engine, it delivers DCI-P3 color for the most demanding large-venue and attraction installations. It handles any 2D application plus all active and passive 3D formats on any screen type. Creation Networks supplies the Sapphire 4K40-RGBH with full configuration support across the Christie Digital range.

Product Description

The Sapphire 4K40-RGBH pairs a solid-state RGB pure laser with a dual laser phosphor system, rated at 25,000 hours to 50% brightness on the RGB laser and 20,000 hours on the laser phosphor stage. Christie TruLife+ electronics process 1.2 Gpx/s and supply the connectivity demanded by staging and integration work: quad 12G-SDI on full-size BNC, four DisplayPort, three HDMI (including HDMI 2.1), SDVoE via Christie Terra, and Christie Link fiber in/out. Standard frame rate support covers 24-60 Hz at 4K and 4K UHD, while the Mirage option extends to 4K at 120 Hz and the Mirage Pro option adds 2K at 240-480 Hz. The exclusive Infitec color comb 3D option enables dual-projector passive 3D on any projection surface with superior light efficiency, and polarized 3D is supported with third-party filters. Self-contained liquid cooling and omnidirectional orientation give integrators full installation freedom. Twist warping is standard, with Mystique camera-based alignment editions available, and Christie Conductor can monitor up to 256 projectors on one network at no extra charge.

Key Features

• 40,000 ISO Lumens — hybrid RGB laser plus dual laser phosphor illumination drives premium brightness for giant screens and high ambient light.
• Native 4K 3DLP — dust-sealed 1.38-inch 3DLP imaging at 4096 x 2160 holds sharpness and color accuracy over long service life.
• DCI-P3 Color — RGB pure laser architecture reproduces a cinema-grade gamut for lifelike content.
• Infitec Color Comb 3D Option — brighter, wider-gamut passive 3D on any surface without polarization-preserving screens.

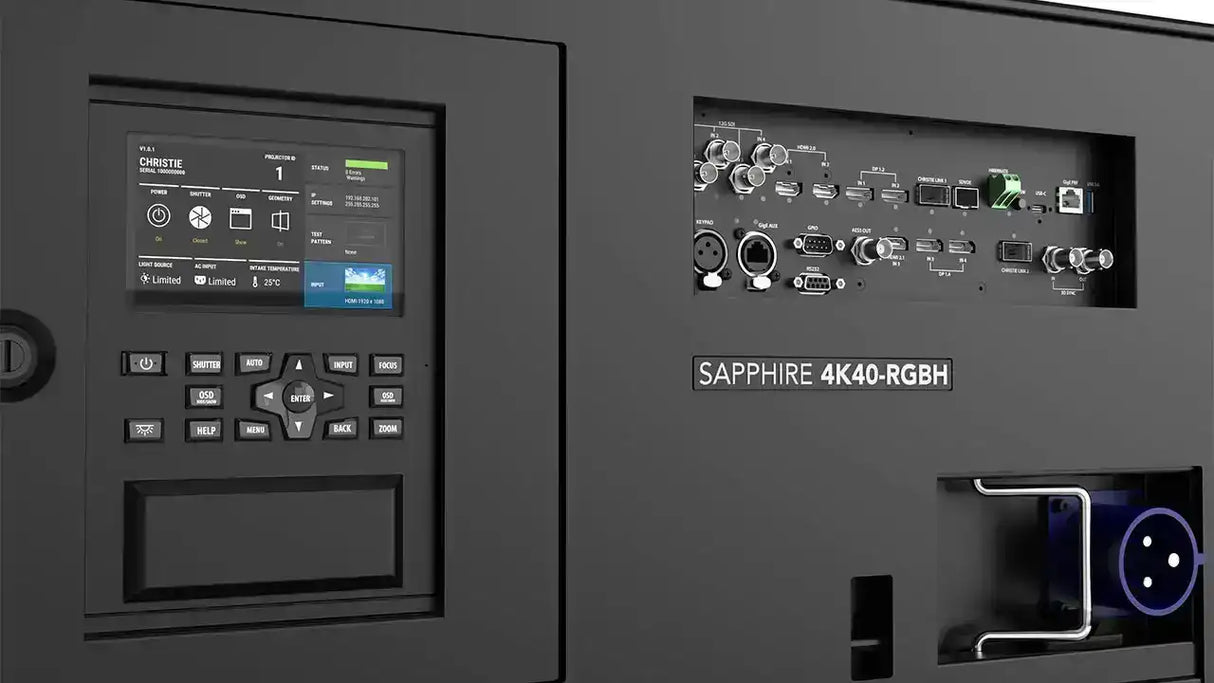

• TruLife+ Connectivity — quad 12G-SDI, 4x DisplayPort, 3x HDMI, SDVoE, and Christie Link fiber cover every signal path.
• High Frame Rate Options — Mirage delivers 4K at 120 Hz; Mirage Pro adds 2K at 240-480 Hz and Christie View multi-content viewing.
• Long-Life Illumination — up to 25,000 hours to 50% brightness reduces maintenance cost in continuous-duty venues.
• Omnidirectional, Liquid-Cooled — install at any angle with self-contained liquid cooling for quiet, reliable operation.
• Warp and Blend Toolset — Twist standard, with Twist Premium/Pro and Mystique editions for automated multi-projector alignment.
• 3-Year Limited Warranty — Christie factory coverage backed by Creation Networks support.

Typical Applications

The Sapphire 4K40-RGBH is built for theme parks and dark rides, giant-screen attractions, planetariums and immersive experiences, large auditoriums, houses of worship with high ambient light, live event staging, and visualization powerwalls. Its 3D capabilities make it a strong fit for stereoscopic simulation and entertainment venues, while Mirage high-frame-rate options serve motion-critical content in rides and simulators.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What lenses and 3D accessories does the Sapphire 4K40-RGBH support?
It uses Christie's interchangeable lens system, and the optional Infitec color comb 3D kit (Intelligent Filter Holder, Sapphire 3D filters, Infitec glasses) enables dual-projector passive 3D on any surface. Polarized 3D with third-party filters is also supported. Creation Networks can spec the correct lens for your throw distance.

What power infrastructure does installation require?
Full brightness requires 200-240 VAC, 20A single phase via an IEC60309 30A connector; a hard-wired cable kit is available for installation by a qualified electrician. On 100-120 VAC the projector is limited to 30% brightness.

How does it integrate into multi-projector arrays?
Twist warping is standard, Mystique automated camera-based alignment is optional, and Christie Conductor manages up to 256 projectors on one network. The quad 12G-SDI and Christie Link fiber inputs simplify long signal runs in large venues.

What warranty applies and who handles support?
Christie provides a 3-year limited warranty. Creation Networks supports system design, commissioning, and warranty coordination — contact us to request a quote.
