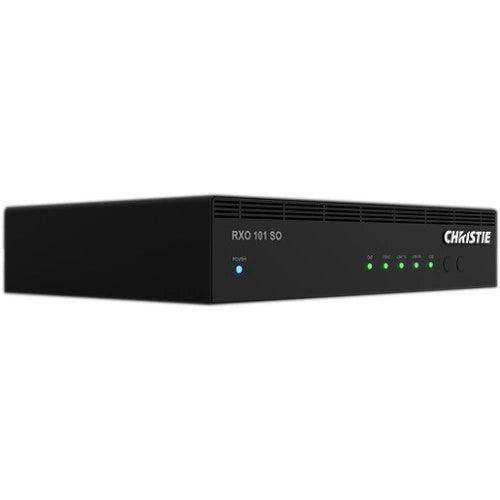

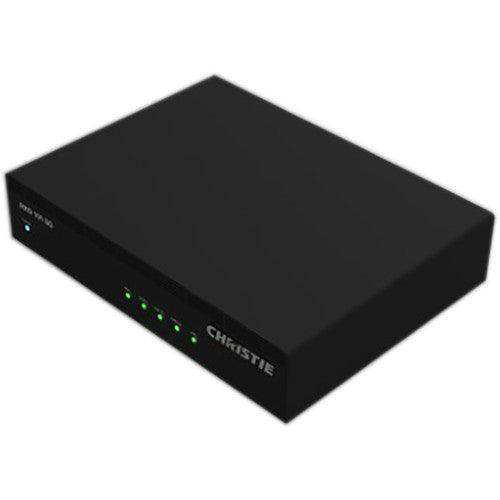

Christie RXO 101 SO Terra Receiver - 166-002103-01

Product Overview

The Christie RXO 101 SO Terra Receiver (166-002103-01) is an SDVoE endpoint that delivers audiovisual data and control from a Christie Terra AV-over-IP system to displays and other devices. Operating over standard 10G networks, it outputs artifact-free video at resolutions up to 4K@60Hz with zero-frame latency. Built-in processing includes magnification, downscaling, KVM, picture-in-picture, image compositing, and multiviewer applications. As an SDVoE-compliant device, it interoperates with both Christie Terra components and third-party SDVoE hardware.

Product Description

In a Terra solution, the receiver sits at the display end of the 10G network, converting SDVoE streams back to baseband video for large-format and standard displays. Because video transport is uncompressed with zero-frame latency, the receiver suits real-time monitoring and collaboration where delay or compression artifacts are unacceptable. On-board signal management covers scaling in both directions, PiP, compositing, and multiviewer layouts, so a single endpoint can build multi-source views on a display without an external processor. Front-facing LED indicators give technicians quick link and status validation during commissioning and operation. The Terra platform adds system-level capabilities described in vendor data, including saved configurations and presets accessible from third-party control via an advanced API, startup addressing automation for fast deployment, multi-level user access with encrypted control and system data, redundant control configuration, and single-configuration system-wide updates. Solid-state design with no moving parts supports long-term reliability. Explore the full Terra lineup in our Christie Digital collection.

Key Features

• 4K@60Hz over 10G — delivers artifact-free video up to 4K@60Hz across standard 10G networks.
• Zero-Frame Latency — real-time delivery for monitoring, communication, and collaboration.
• Built-In Processing — magnification, downscaling, KVM, PiP, image compositing, and multiviewer applications.
• SDVoE Compliant — interoperates with Christie Terra and third-party SDVoE components and displays.

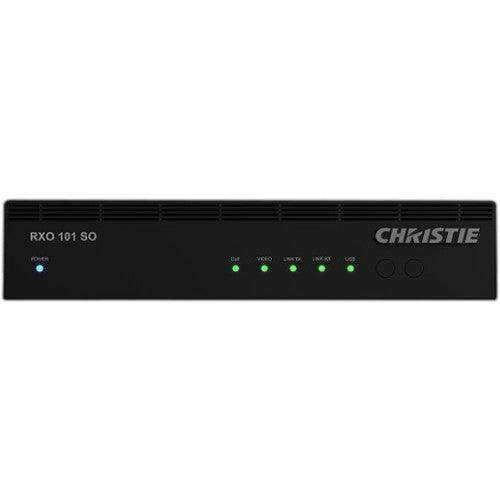

• Front-Panel LED Indicators — quick status reporting for commissioning and system validation.
• Preset and API Control — saved configurations accessible directly or from third-party control systems via an advanced API.
• Addressing Automation — startup addressing assistant simplifies initial setup and configuration changes.
• Security Controls — multi-level user access, encrypted control and system data, logging, and strong password management.
• Redundant Control Configuration — supports continuous system operation.
• Solid-State Reliability — no moving parts for dependable long-term operation.

Typical Applications

The Terra Receiver serves campus and enterprise AV distribution, control rooms and operations centers, command-and-control video walls, lecture capture and overflow spaces, and any AV-over-IP deployment where uncompressed 4K with zero-frame latency must reach large-format or standard displays.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What does the Terra Receiver do in an SDVoE system?

It is the display-side endpoint: it receives AV and control from the 10G Terra network and delivers artifact-free video up to 4K@60Hz with zero-frame latency to displays and other devices.

Does it work with non-Christie SDVoE equipment?

Yes. The receiver is SDVoE-compliant and functions with third-party SDVoE components, displays, and devices as well as Christie Terra hardware.

Can it build multi-source layouts on a display?

Yes. Built-in processing includes PiP, image compositing, and multiviewer applications, plus magnification and downscaling, without requiring an external processor.

Is the system suitable for secure environments?

Per vendor data, the Terra platform provides multi-level user access, encrypted control and system data, access and operational logging, and strong password management.

What network infrastructure is required?

Terra operates over standard 10G Ethernet networks. Contact Creation Networks to scope switches, transceivers, and endpoints for your deployment.
