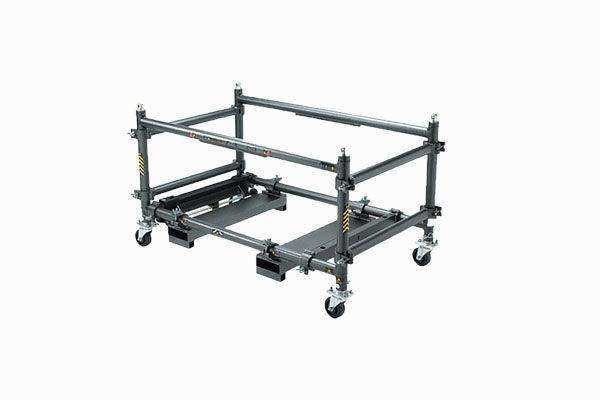

Christie QwikRig Rigging Frame for H, Q, 700/850-GS, and D Series Projectors - 140-128102-03 (Discontinued)

Product Overview

The Christie QwikRig Rigging Frame (140-128102-03) is a single-assembly stacking and rigging frame that fastens to the bottom of compatible Christie H, Q, 700/850-GS, and D Series projectors. Built from aluminum and weighing approximately 58.5 lb, it supports up to three stacked projectors when hung in normal or inverted orientations. Pitch, roll, and yaw adjustments allow precise alignment of overlaid images from stacked units. Please note this model is marked discontinued by Christie, so availability may be limited — contact Creation Networks to confirm stock or discuss current alternatives.

Product Description

The QwikRig frame is designed so a single technician can complete installation and image alignment quickly. Once attached to the projector chassis, the frame provides independent pitch, roll, and yaw adjustments for accurate registration of overlapped images in stacked or blended configurations. The frame can also be used to mount compatible projectors to truss in portrait orientation, expanding placement options for staging and installation work. The -01 version (Christie H/Q Rigging Frame) accepts H or Q Series projectors, while this -02/-03 QwikRig version accepts H, Q, or 700/850-GS Series projectors, and both versions can be stacked together in the same array. The open design preserves access to the projector for installation, lamp and filter replacement, and routine maintenance without removing the unit from the frame. Compatible models per Christie vendor data include the DHD850-GS, DWU850-GS, DHD700-GS, DHD1075-GS, DWU1075-GS, DWU630-GS, DWX951-Q, DWX851-Q, DXG1051-Q, DHD1052-Q, DWU851-Q, DWU1052-Q, DWU951-Q, DHD951-Q, DHD851-Q, D12HD-H, and D12WU-H. Browse more Christie rigging hardware in our Christie Digital collection.

Key Features

• Single-Assembly Design — fastens directly to the bottom of the projector for fast, one-person installation and alignment.
• Stacks Up to Three Projectors — supports triple-stack configurations in normal or inverted hanging orientations.
• Pitch, Roll, and Yaw Adjustments — independent controls allow accurate alignment of overlaid images in stacked arrays.
• Portrait Truss Mounting — frame can mount compatible projectors to truss in portrait orientation.
• Aluminum Construction — keeps frame weight to approximately 58.5 lb while maintaining structural rigidity.
• Cross-Compatible Stacking — -01 and -02 frame versions can be stacked together within the same array.
• Maintenance Access — open design allows lamp/filter replacement and service without removing the projector.

Typical Applications

The QwikRig frame is built for live events, rental and staging, touring productions, houses of worship, and auditorium installations where projectors must be flown from truss or stacked for added brightness. Portrait truss mounting also suits creative projection layouts in themed environments and corporate staging.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which Christie projectors fit the QwikRig 140-128102-03 frame?

Per Christie vendor data, the -02/-03 QwikRig frame accepts H Series, Q Series, and 700/850-GS Series projectors, including models such as the DHD850-GS, DWU851-Q, and D12HD-H. Confirm your exact model against the compatibility list above before ordering.

How many projectors can be stacked in this frame?

When hung in normal or inverted orientations, the frame supports up to three stacked projectors, with pitch, roll, and yaw adjustments for aligning the overlaid images.

Can it mount projectors in portrait orientation?

Yes. The QwikRig frame can be used to mount compatible projectors to truss in portrait orientation in addition to standard stacking and hanging configurations.

Is this product still available since it is discontinued?

Christie has discontinued this part number, so availability may be limited. Contact Creation Networks to verify current stock or to identify a suitable replacement rigging frame, such as the Christie One Rigging Frame.
