Christie One Rigging Frame for H, HS, GS & Q Series Projectors - 140-113106-03

Product Overview

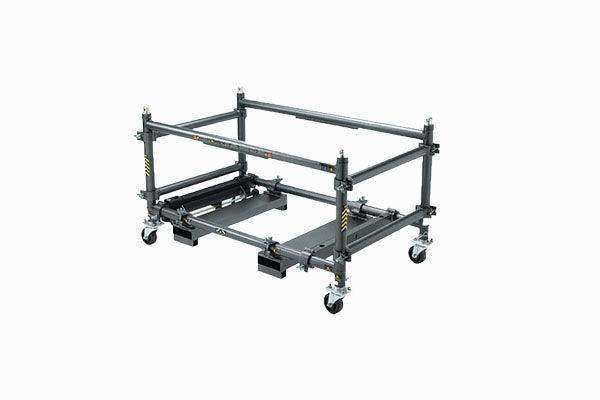

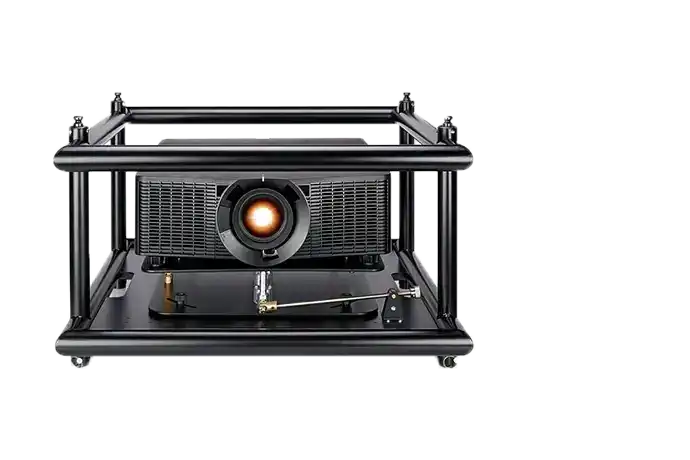

The Christie One Rigging Frame (140-113106-03) is a steel stacking and rigging frame for Christie H, HS, GS, and Q Series projectors. The single-assembly frame fastens to the bottom of the projector and supports up to three stacked units when hung in normal or inverted orientations. Independent pitch, yaw, and tilt controls with lockdowns make alignment of overlaid images fast and repeatable. At 89 lb, the steel frame is built for the demands of flown multi-projector arrays.

Product Description

The One Rigging Frame gives integrators and rental houses a standardized rigging platform across several Christie 1DLP projector families. Each axis — pitch, yaw, and tilt — has an independent control with its own lockdown, so a technician can dial in alignment quickly and secure it against drift. Within a stack up to two projectors high, individual projector adjustments can be made without disturbing the other connected units, which significantly shortens convergence time on multi-projector blends. The frame's standard 50mm OD tubing accepts common burger and industry clamps, so it integrates directly with standard truss hardware. The open design preserves access to the projector for installation, lamp and filter replacement, and general maintenance while the unit remains in the frame. The frame can also mount projectors to truss in portrait orientation. Christie publishes line drawings for this frame to support rigging plots and venue documentation. Browse more rigging hardware in our Christie Digital collection.

Key Features

• Independent Pitch, Yaw, and Tilt Controls — each adjustment has its own lockdown for quick, accurate, drift-free setup.
• Per-Projector Adjustment in a Stack — modify a single projector (stacks up to two high) without affecting connected units.
• Standard 50mm OD Tubing — accommodates common burger and industry rigging clamps.
• Three-High Stacking — supports up to three stacked projectors hung in normal or inverted orientations.
• Portrait Truss Mounting — mounts projectors to truss in portrait orientation.
• Maintenance Access — design allows lamp/filter changes and service without removing the projector.
• Steel Construction — 89 lb frame engineered for flown multi-projector loads.

Typical Applications

Designed for live events, touring and rental staging, auditoriums, houses of worship, and fixed installations where Christie H, HS, GS, or Q Series projectors are stacked for brightness or flown from truss with precise image alignment requirements.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which Christie projectors does the One Rigging Frame fit?

Part number 140-113106-03 is designed for Christie H, HS, GS, and Q Series projectors. Confirm your specific model with Creation Networks before ordering.

Can I adjust one projector in a stack without disturbing the others?

Yes. The frame allows individual projector adjustments within a stack up to two projectors high, so a single unit can be re-aligned without affecting the connected projectors.

What rigging clamps does the frame accept?

The frame uses standard 50mm OD tubing, which accommodates common burger clamps and other industry-standard truss clamps.

How many projectors can be stacked?

When hung in normal or inverted orientations, the frame supports up to three stacked projectors, with pitch, yaw, and tilt adjustments for aligning the overlaid images.
