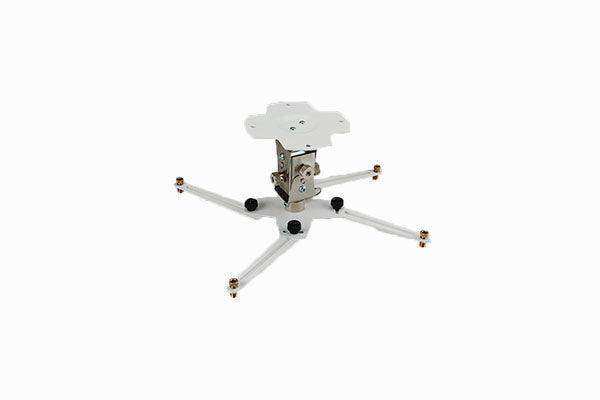

Christie One Mount Plus - 140-117100-03

Product Overview

The Christie One Mount Plus (140-117100-03) is a professional ceiling mount engineered by Euromet specifically for Christie projectors. It allows tool-free, independent adjustment of pitch, yaw, and roll, with thumb screws to lock the projector in place once the image is aligned. A quick-release pin and 45 kg (100 lb) capacity make it a dependable platform for fixed installations.

Product Description

Precise projector alignment is one of the most time-consuming parts of any install, and the One Mount Plus is built to shorten that work. Fingertip fine-tune controls adjust pitch (±30°), roll (±30°), and yaw (full 360°) independently without tools, so installers can dial in geometry quickly from a ladder or lift. Once aligned, thumb screws lock everything down to hold the image position over time. The quick-release pin lets technicians drop the projector for service without disturbing the alignment hardware, which means re-aiming is rarely needed after maintenance. A ceiling plate is included in the box, and the mount carries a 45 kg (100 lb) weight capacity — generous headroom for compact and mid-size Christie projectors. Built entirely in Italy with white paint and stainless steel construction, it is backed by a 5-year warranty.

Key Features

• Tool-Free Fine Adjustment — independent pitch, yaw, and roll control via fingertip mechanisms.
• Locking Thumb Screws — secure the projector after final image alignment so it stays put.
• Quick-Release Pin — remove the projector for service without unbolting hardware or losing alignment.
• 45 kg (100 lb) Capacity — supports a wide range of Christie installation projectors.
• Ceiling Plate Included — everything needed for a standard ceiling installation in one box.
• Made in Italy, 5-Year Warranty — stainless steel and painted-steel build quality with long coverage.

Typical Applications

The One Mount Plus suits boardrooms, classrooms, auditoriums, houses of worship, museums, and any fixed installation where a Christie projector must hold precise alignment and remain serviceable. Pair it with the Christie Extension Rod or Rigging Kit for drop and truss applications — see our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Is the ceiling plate included?
Yes, the ceiling plate ships with the mount.

How much weight can it hold?
The One Mount Plus is rated for 45 kg (100 lb).

Can the projector be removed for service without re-aligning?
Yes. The quick-release pin detaches the projector while the alignment hardware stays in place.

Can it extend lower from the ceiling or attach to truss?
Yes, with the Christie One Mount Extension Rod (121-125109-01) and One Mount Rigging Kit (121-126100-01), sold separately.
