Christie MicroTiles LED 0.75mm Ultra-Fine-Pitch LED Video Wall Tile - 161-014106-01 (TAA)

What is the Christie MicroTiles LED 0.75mm?

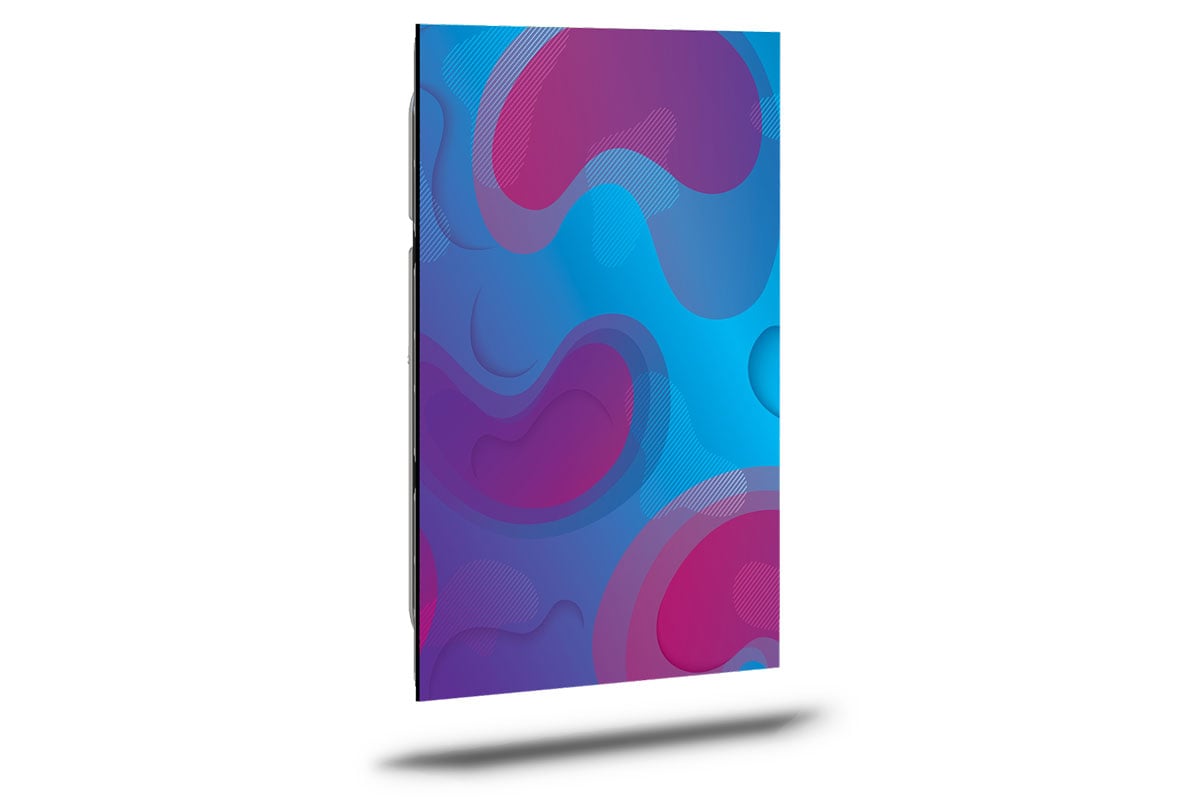

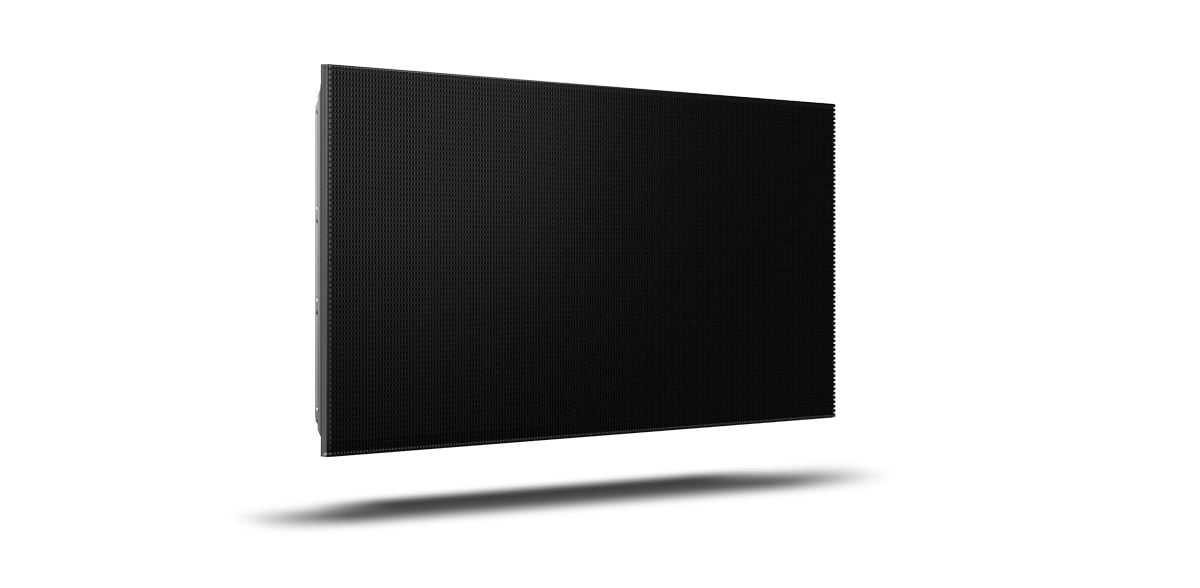

The Christie MicroTiles LED 0.75mm is a cabinet-free 0.75mm LED video wall tile from Christie Digital, designed and built in Canada. Each tile is a small, lightweight building block that clicks onto a precision mounting system, so walls can be built flat, curved, around corners, or in custom shapes. It's the finest pitch in the MicroTiles LED line, built for close viewing in executive briefing centers, control rooms, and high-end visualization spaces.

What is included?

• One Christie MicroTiles LED 0.75mm tile, part number 161-014106-01

• QuickMount mounting system (mounting sheets and wall anchors)

• Remote power, Octroller tile controller, and wall controller are sold separately and quoted with the wall

How does the Christie MicroTiles LED 0.75mm work?

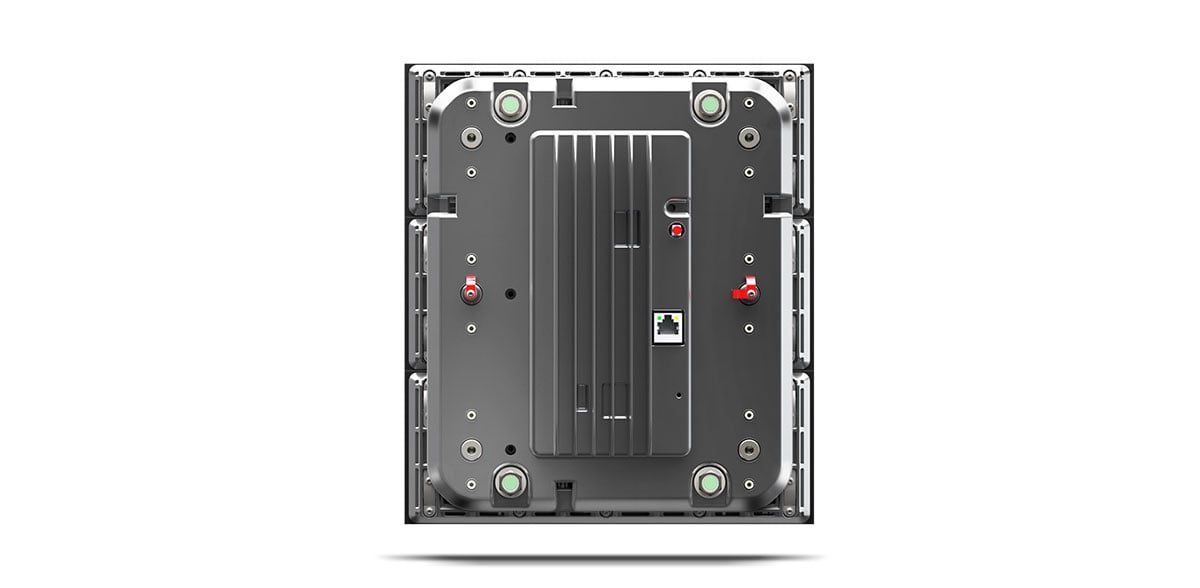

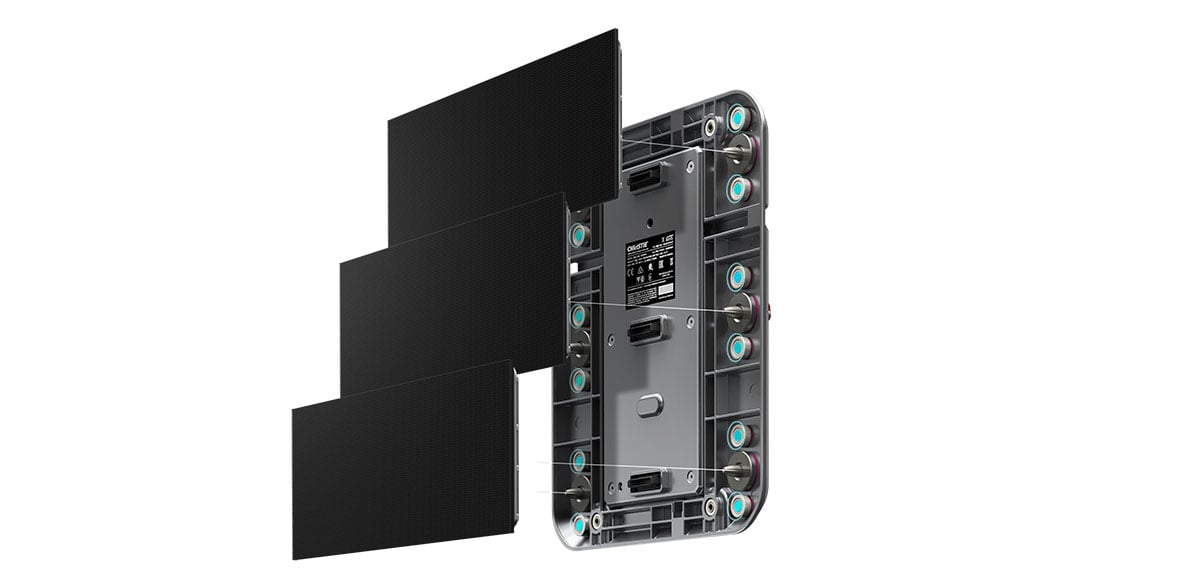

Tiles mount to laser-cut steel sheets and precision-machined anchors, which removes most of the alignment work from a complex install. Each tile gets power and data over a single 48V Power over Ethernet cable from an Octroller, and power supplies can sit in a rack away from the wall to cut heat and noise at the display. The Christie VividLife processing platform drives the wall with 4K at 120 Hz, 24-bit color, and HDR10 support.

Every tile is factory calibrated, so no on-site calibration is needed. Patented Neighbor Detection finds where each tile sits in the design automatically, and sensor-based AutoMatch keeps color and brightness above 97% uniformity for the life of the wall. Tiles are front serviceable and hot swappable, and the web interface on the wall controller handles inputs, color settings, diagnostics, and alerts. Compare the 0.9mm, 1.25mm, 1.5mm tiles, or browse more video walls.

What are the key features of the Christie MicroTiles LED 0.75mm?

• 0.75mm pixel pitch — 320 x 360 pixels per tile.

• 2,000 nits calibrated brightness with DCI-P3 color.

• Any tile, anywhere — curves, 90° corners, and custom shapes.

• Factory calibrated with Neighbor Detection and AutoMatch.

• Single-cable PoE power and data per tile, with remote power supplies.

• 100,000-hour LED life, rated for 24/7 use.

• Front serviceable, hot-swappable tiles.

• Designed and made in Canada, TAA-compliant.

Where is the Christie MicroTiles LED 0.75mm typically used?

• Government and utility control rooms

• Corporate lobbies and executive briefing centers

• Architectural feature walls

• Museums and themed attractions

• Simulation, training, and visualization rooms

Technical Specifications

Frequently Asked Questions

How is MicroTiles LED priced?

Walls are quoted as a system. The price depends on tile count, layout, power, and controllers, so contact us with your wall size and we'll build the full bill of materials.

What else do I need besides tiles?

A remote power rack shelf with rectifiers, Octroller tile controllers, and a Christie wall controller. The QuickMount system comes with the tiles.

Is it TAA-compliant?

Yes. This tile is TAA-compliant for government and federal projects.

Can the wall curve or wrap a corner?

Yes. Tiles can be placed in concave or convex curves, around 90° inside and outside corners, flown, or arranged in custom shapes.

Does it need calibration on site?

No. Tiles are factory calibrated, and AutoMatch keeps color and brightness uniform across the wall automatically.

Can Creation Networks design and install it?

Yes. Creation Networks designs, installs, and supports LED video walls nationwide. Contact us at 888-230-3661 or sales@creationnetworks.net.
