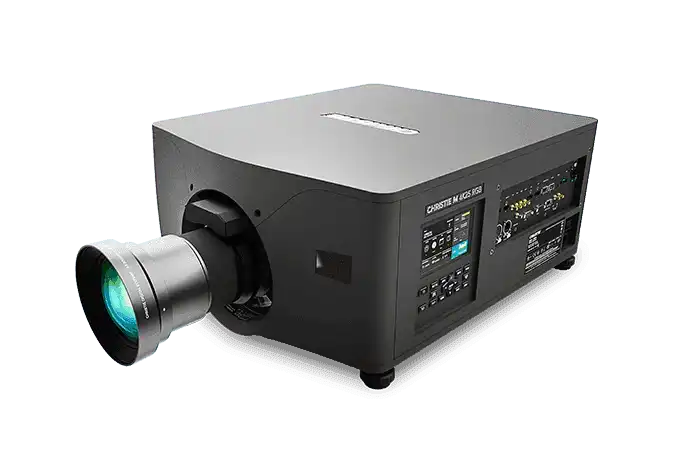

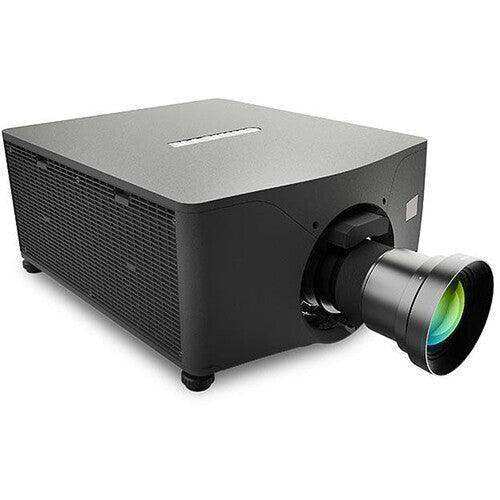

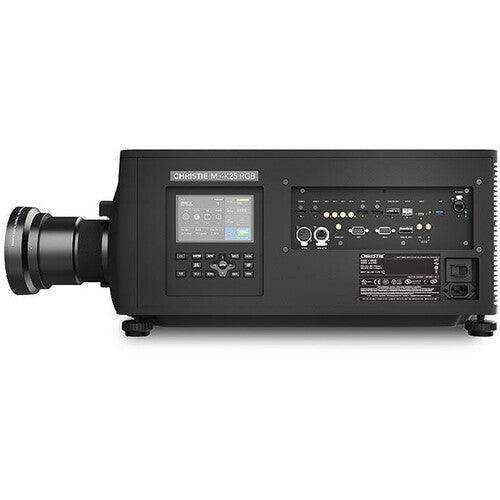

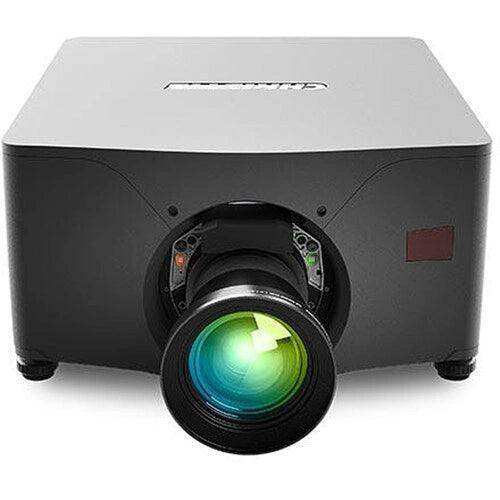

Christie M 4K25-RGB 25,000-Lumen 3DLP Laser Projector (No Lens) - 163-044109-01

Save 10%
Christie Digital SKU: 163-044109-01
No reviews

Price:
Sale price$66,595.50 Regular price$73,995.00

Description

Christie® M 4K25 RGB pure laser projector re-imagines and reinvents the rugged and reliable M Series industry workhorse with innovative, cutting-edge RGB pure laser technology, UHD 4K resolution with our latest TruLife+ electronics, electronic color convergence (ECC), and an intelligent lens system (ILS1) that’s compatible with our legacy M, J and Crimson Series projector lenses. With 25,000 lumens and an incredibly small form factor, the versatile M 4K25 RGB is a new peak of perfection for our 3DLP® RGB pure laser projection technology. The new M 4K25 RGB is not only quiet, it features double the brightness, double the color volume, and quadruple the resolution over our legacy M Series projector.

Christie M 4K25 Specs

Image Display
Display System 3-Chip 0.95" DLP
Native Chip Resolution 1920 x 1080 (Full HD)
On-Screen Resolution Up to 4K UHD (3840 x 2160) via Pixel-Shift Technology
Maximum Brightness 22,500 Lumens (ANSI)
25,300 Lumens (ISO)
Contrast Ratio 3000:1
Features
Supported HDR Input Formats None
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Remote Yes
Input/Output Connectors
Inputs/Outputs 4 x BNC (12G-SDI) Video Input
2 x HDMI 2.0 Audio, Video Input
2 x DisplayPort 1.2 Audio, Video Input
1 x Proprietary Data Input/Output
1 x RJ45 (HDBaseT) LAN Input/Output
1 x 3-Pin DIN (VESA 3D Sync) Data Input
1 x 1/8" / 3.5 mm Mini Audio Output
Hardware
Mobile App Compatible No
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Bluetooth None
General
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 25,000 Hours
Medium Brightness: 50,000 Hours
Fan Noise Full Brightness: 47 dB
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 9 to 12 A
Power Consumption Full Brightness: 1800 W
Medium Brightness: 1540 W
Operating Temperature 41 to 104°F / 5 to 40°C
Operating Humidity 10 to 80% (Non-Condensing)
Dimensions (W x H x D) 1.7 x 0.9 x 2.0' / 525.0 x 270.0 x 617.0 mm
Weight 91.9 lb / 41.7 kg



  • Incredible form factor: The smallest, lightest, fully omnidirectional 3DLP® RGB pure laser projector. With a market-leading form factor, the new Christie M weighs in at 92 lbs. (41.7 kg) and fits the same rigging cage as the original M series for additional cost savings.
  • All-in-one TruLife+ Electronics: No need to by additional input cards. All the connection you need are built in and will never be "misplaced" again. TruLife+’s all-in-one connectivity makes it easy to switch inputs wherever and whenever you want.
  • LiteLOC: Our proprietary LiteLOC technology can automatically manage your projectors brightness over time in higher ambient temperatures and more humid environments to ensure your presentation is the same as day one.
  • Built-in Christie Terra® SDVoE connectivity: conveniently accepts uncompressed 4K audiovisual content (and control) with zero-frame latency, artifact-free over 10G networks.
  • Twice the color: Rec. 2020 color reproduces more real-world colors and achieves perfect brand/IP color matching with ~98% of the Rec. 2020 color gamut. It can also enhance Rec. 709 and DCI-P3 content color performance.
  • Quiet operation: 46.5 dBA in standard mode.
  • Integrated UI: Our integrated user interface with full-color LCD allows you to see input signal thumbnails and projector health at-a-glance.
  • Web UI: Access all projector menus and controls via our ethernet web interface for real-time adjustments and monitoring of each projector of on your network
  • Omnidirectional, versatile and rugged: The M 4K25 RGB operates in any orientation for unlimited installation flexibility.
  • Reuse your lenses: Compatible with the original M Series, J and Crimson Series lenses.
  • Dual voltage operation: Operates between 200-240 VAC at full brightness or 100-120 VAC at half brightness which effectively doubles the lifetime of the laser optical system (LOS).
  • 4K-UHD resolution: Full 3840 x 2160 pixel resolution for flawless illumination performance and life-like colors.
  • Field-replaceable RGB laser light source for easy service and replacement
  • Mirage option upgradeability
  • TAA-compliant: 163-037101-XX

25,000

ISO lumens

22,500

ANSI lumens

25,000 ISO lumens, 22,500 ANSI lumens*/**

Brightness

3000:1 On/Off**, 7000:1 On/Off*** with optional HC lenses

Contrast ratio

Dust-sealed 3DLP® (0.95")

Display type

4K UHD (3840 x 2160)

Resolution

Illumination type

Solid state pure RGB (red, green & blue) laser optical system (LOS)

Illumination performance (hrs)

Up to 50,000 hours of continuous light output at 50% brightness

Orientation

Omnidirectional

Image processing

Christie TruLife+ electronics, 1.2Gpx/s

Supported frame rates

24-60Hz, Mirage option: 96-120Hz 4K in 2D or 3D @ 60Hz per eye, Mirage Pro option: Mirage + 240-480Hz HD scaled

Sound level

  • 46.5 dBA****

Automated warping and blending

  • Standard: Mystique™ Lite (software can be downloaded at no extra charge and requires an off-the-shelf Web/Ethernet camera.)
  • Optional: Mystique Essentials, Mystique ProAV, Mystique Large Scale Experience Edition

Multi-projector management

  • Christie Conductor software monitors and controls up to 256 projectors and can be downloaded at no extra charge

Lenses (standard)

  • 0.37:1 ILS1 lens
  • 0.67:1 ILS lens
  • 0.9:1 ILS1 lens
  • 0.8-1.16:1 ILS1 lens
  • 1.1:1 ILS1 lens
  • 1.16-1.49:1 ILS1 lens
  • 1.4-1.8:1 ILS1 lens
  • 1.8-2.6:1 ILS1 lens
  • 2.6-4.1:1 ILS1 lens
  • 4.1-6.9:1 ILS1 lens******
  • 6.9-10.4:1 ILS1 lens******

Lenses (ultra high contrast)

  • 1.28-1.87:1 ILS1 lens
  • 1.87-2.56:1 ILS1 lens

Line Voltage

  • 200-240 VAC 9A 50/60 Hz Single phase
  • Limited brightness mode: 100-120 VAC 12A 50/60 Hz at half brightness
  • Connector: IEC C14 PDU Locking Cord (IEC C13 compatible)

Power consumption

  • 1800W max

Laser class

  • Class 1 — Risk Group 3

Operating environment

  • 5-40°C (41-104°F)
  • Relative humidity: 10-80% non-condensing

Dimensions

  • Size (LxWxH): 24.3 x 20.7 x 10.6" - (617 x 525 x 270 mm)
  • Weight: 92 lbs. (41.7 kg) without lens
