Christie High Bandwidth Multi-Input Card (HB Mic) - 144-116109-01
Product Overview

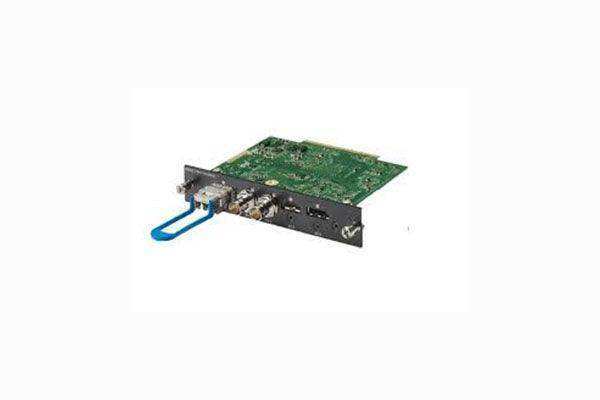

The Christie High Bandwidth Multi-Input Card, or HBMIC (144-116109-01), consolidates the high-bandwidth inputs a large-venue projector needs onto one card, supporting 4K at 60Hz over a single cable. It provides dual 12G-SDI, HDMI 2.0 with HDCP 2.2, DisplayPort 1.2 with HDCP 1.3, and a QSFP+ fiber port for direct connection to a Christie Link Transmitter. All inputs offer preview capability with fast syncing and switching between sources. It installs in Boxer 4K, Boxer 30, Mirage 304K, and Boxer 2K projectors.
Product Description
Input flexibility determines how quickly a projector integrates into a show or facility, and the HBMIC covers the formats large-venue workflows actually use. Broadcast-style infrastructure feeds the two 12G-SDI inputs; media servers and playback systems connect over HDMI 2.0 or DisplayPort 1.2; and long-haul fiber from a Christie Link Transmitter lands directly on the QSFP+ port — no external receiver required. Every input supports preview, so operators can verify upcoming sources before taking them live, and switching between inputs is fast with quick re-sync. Slot placement is straightforward: the card occupies Slot 0 on Boxer 4K, Boxer 30, and Mirage 304K, and Slot 1 or 2 on Boxer 2K. For integrators building Link-based fiber distribution, the HBMIC is the projector-side half of the system. It is the single most versatile input card to standardize on across a Boxer fleet.
Key Features
- 4K 60Hz over One Cable — full-bandwidth single-cable input for high-resolution sources.
- 2x 12G-SDI Inputs — broadcast-grade coax connectivity for production environments.
- HDMI 2.0 (HDCP 2.2) — modern protected-content support for media servers and players.
- DisplayPort 1.2 (HDCP 1.3) — direct connection for graphics workstations and servers.
- Christie Link Fiber Port (QSFP+) — terminate long-distance fiber from a Link Transmitter without an external receiver.
- Input Preview — verify any source before switching it live.
- Fast Sync and Switching — minimal disruption when changing inputs mid-show.
- Multi-Platform Fit — Slot 0 on Boxer 4K / Boxer 30 / Mirage 304K; Slot 1 or 2 on Boxer 2K.
Typical Applications
The HBMIC serves live event staging and touring, broadcast studios, projection mapping with fiber signal runs, theme park attractions, and fixed large-venue installations built on Christie Boxer and Mirage platforms. Pair it with the Christie Link Transmitter from our Christie Digital collection.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 144-116109-01 |
| Maximum Signal | 4K at 60Hz over a single cable |
| SDI Inputs | 2x 12G-SDI |
| HDMI | 1x HDMI 2.0 (HDCP 2.2) |
| DisplayPort | 1x DisplayPort 1.2 (HDCP 1.3) |
| Fiber | Christie Link fiber connection (QSFP+) |
| Input Features | Preview on all inputs; fast syncing and switching |
| Slot Placement | Slot 0: Boxer 4K, Boxer 30, Mirage 304K; Slot 1 or 2: Boxer 2K |
Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Which projectors accept the HBMIC?
Boxer 4K, Boxer 30, and Mirage 304K (Slot 0), and Boxer 2K (Slot 1 or 2).
Do I need a separate receiver for Christie Link fiber?
No. The card's QSFP+ port terminates the fiber from a Christie Link Transmitter directly at the projector.
Can I preview a source before switching to it?
Yes — all inputs on the card offer preview capability with fast syncing between sources.
Does the HDMI input support protected content?
Yes, HDMI 2.0 with HDCP 2.2; the DisplayPort 1.2 input supports HDCP 1.3.
