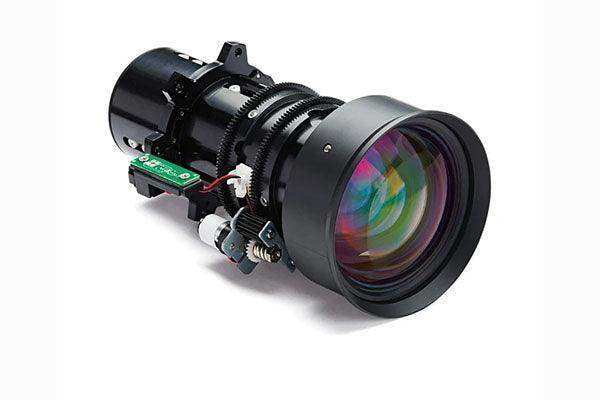

Christie H/HS Series 4.0-7.2:1 2K/5.66-10.18:1 4K Zoom Lens - 140-116109-02

Product Overview

The Christie 140-116109-02 is a long zoom lens for Christie H/HS Series 1DLP laser projectors, delivering a 4.0-7.2:1 throw ratio at 2K (5.66-10.18:1 at 4K). Its 1.81x zoom range with motorized zoom and focus makes it the long-throw workhorse for large venues. Compatibility covers the Christie 4K10-HS, 4K7-HS, H Series D12HD-H and D12WU-H, and HS Series D13HD-HS, D13WU-HS, and D16HD-HS.

Product Description

Long projection booths, balconies, and rear-of-house rigging positions demand a lens that can hold focus and brightness across substantial distances, and the 140-116109-02 covers that requirement for the H/HS platform. The 4.0-7.2:1 throw ratio at 2K resolution (5.66-10.18:1 at 4K) means a projector can sit four to more than seven image-widths from the screen, which suits auditoriums, arenas, and houses of worship where front-of-house placement is impossible. The generous 1.81x zoom ratio gives integrators wide latitude to fine-tune image size after the projector is rigged. Motorized zoom and focus allow all adjustments to be made from the remote or control system rather than at the lens barrel, which matters when the projector is mounted twenty feet up on a truss. The lens exchanges with shorter H/HS Series options using Christie's standard mount, supporting rental houses that reconfigure systems per event.

Key Features

• 4.0-7.2:1 Throw Ratio (2K) — long-throw coverage for booths, balconies, and rear rigging positions; 5.66-10.18:1 at 4K.
• 1.81x Zoom Range — wide adjustment latitude for precise image sizing after rigging.
• Motorized Zoom and Focus — remote adjustment from the projector control system, no ladder required.
• Broad H/HS Compatibility — fits 4K10-HS, 4K7-HS, D12HD-H, D12WU-H, D13HD-HS, D13WU-HS, and D16HD-HS.
• Standard Lens Mount — exchanges quickly with other H/HS Series lenses for flexible deployment.
• Genuine Christie Optics — engineered for the H/HS light engines to preserve sharpness at distance.

Typical Applications

This lens is specified for large auditoriums, arenas, performing arts centers, and houses of worship where the projector lives in a projection booth or rear truss position. It is also common in rental and staging inventories supporting long-throw event configurations. See the full lens lineup in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What is the throw ratio of the 140-116109-02?
4.0-7.2:1 with 2K-class projectors and 5.66-10.18:1 with 4K models such as the 4K10-HS and 4K7-HS.

Are zoom and focus motorized?
Yes. Both zoom and focus are motor-driven and adjustable remotely from the projector.

Which projectors does this lens fit?
Christie 4K10-HS, 4K7-HS, D12HD-H, D12WU-H, D13HD-HS, D13WU-HS, and D16HD-HS.

When should I choose this lens over a standard zoom?
Choose it when the projector must sit four or more image-widths from the screen, such as booth or rear-truss installations.
