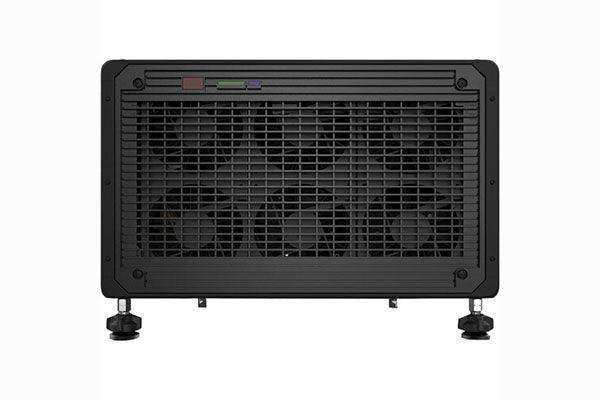

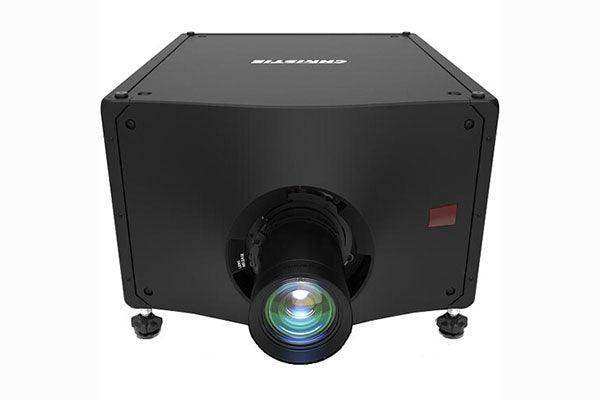

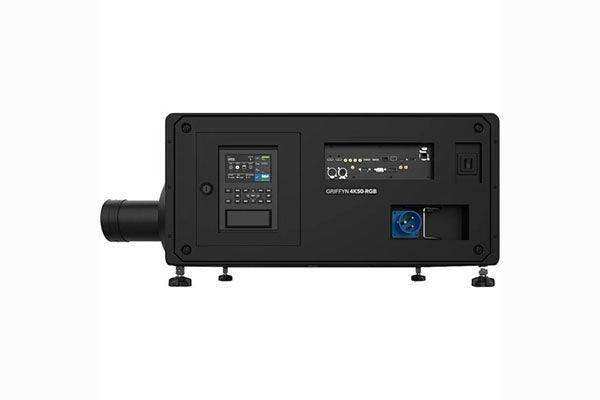

Christie Griffyn 4K50-RGB 50,000-Lumen 3DLP Laser Projector - 163-050106-01

Save 10%
Christie Digital SKU: 163-050106-01
No reviews

Sale price$152,311.50 Regular price$169,235.00


A technological marvel that combines superior Christie® TruLife+ electronics, our proprietary RGB pure laser illumination architecture with integrated cooling, and a sealed optical path for steadfast illumination performance, resulting in capabilities that are sure to impress you.

The Griffyn 4K50-RGB is the lightest, brightest laser projector available today​ and ready to illuminate any surface with 50,000 lumens while operating at 55dBA at full brightness. The highly advanced Griffyn® 4K50-RGB is designed to deliver rich, bright colors for exceptional experiences in demanding large-venue applications on the ground or in the air.

Design excellence

Talk about engineering expertise: this compact and very powerful all-in-one, omnidirectional 3DLP® projector offers our latest TruLife+™ electronics platform with ‘all-in’ connectivity, eliminating the hassle of removable option cards. Griffyn also includes our new electronic color convergence (ECC), which allows you to adjust convergence via remote control for easy, picture-perfect color alignment.

Griffyn 4K50-RGB again raises the bar in laser projection performance.

Spectacular visuals

The Griffyn Series produces an exceptionally wide color gamut, achieving ~98% of the Rec. 2020 color space—more than twice the color of Rec. 709 and 50% more than DCI-P3-capable projectors—for an enhanced audience experience. And Griffyn’s optional high frame rate (HFR) capability achieves 120Hz at 4K resolution or up to 480 Hz with 2K resolution. Ready to transport your audience to colorful new worlds, Griffyn not only raises the bar for RGB pure laser projection but soars above it.

Integrated warping and blending

Griffyn 4K50-RGB features integrated Christie Twist, for warping and blending, which enables compatibility with Christie® Mystique, our automated camera-based alignment and recalibration solution to quickly install, align, calibrate and maintain multi-projection systems, removing hours of painstaking work”



  • All-in-one, compact design — No external chillers or laser racks at a manageable weight of 197 lbs.
  • Electronic Color Convergence (ECC) — easily adjust color convergence via remote control for picture-perfect color alignment.
  • TruLife+ ‘all-in’ electronics — every connection you need is built-in
  • High frame rate options - 4K at 60Hz standard. The Mirage option delivers 4K at 120Hz or 4K at 60Hz per eye for 3D content. The Mirage Pro option adds further capabilities: 240-480Hz at 2K resolution and Christie View (simultaneous multi-content viewer)
  • Quiet operation — Operates as low as 46 dBA.
  • 4K lens compatibility — Compatible with all Christie4K 3DLP® ILS4 lenses
  • Expanded color gamut — Produces ~98% of the Rec. 2020 color space for rich, vibrant and true-to-life visuals
  • Omnidirectional — Operates in any orientation for unlimited installation flexibility
  • Energy efficient — Operates on 200-240 VAC single-phase power for lower cost of ownership
  • Christie Twist — Built-in image warping and multi-projector blending software
  • Compatible with Christie Mystique automated camera-based alignment software.
  • Supports Christie Guardian – Invisible, real-time automatic blended-image correction while content is playing
  • Field replaceable RGB laser architecture — easy service and replacement of the laser light source


ISO lumens


ANSI lumens

5000:1 On/Off with high contrast lens*

Contrast ratio

3DLP 1.38" DMD

Display type

4K (4096 x 2160)


RGB pure laser

Illumination type

Illumination performance (hrs)

Over 50,000 hours in standard mode



Image processing

Christie TruLife+™ electronics, 1.2Gpx/s

Supported frame rates

Standard: 24-60Hz | Christie Mirage option: 4K@120Hz and 4K 3D@60Hz per eye | Christie Mirage Pro option: all the features of the Mirage option plus 2K@240-480Hz and Christie View simultaneous multi-content viewer

Standard inputs

  • 4 x 12G-SDI
  • 2 x HDMI 2.0
  • 2 x DisplayPort 1.2
  • Fiber (QSFP+) for use with Christie Link Transmitter (1 input/1 output)
  • HDBaseT
  • Audio out

Sound level

  • 46 dBA/55 dBA**

Input line voltage

  • 200-240 VAC, 19A, 50/60Hz Single phase
  • Connector: IEC60309 30A

Power consumption

  • 2800W typical (9,550 BTU/hr)
  • 3800W max (13,000 BTU/hr)


  • Liquid, self-contained

Laser class

  • Class 1 - risk group 3 (N4)

Operating environment

  • 5-40°C (41-104°F)
  • Relative humidity: 10-80% non-condensing


  • (LxWxH): 36.3 x 25 x 15"
  • (922 x 635 x 380mm) not including lens


  • 197lbs (89.3 kg) (N5)

Limited warranty

  • 3 years

Multi-projector management (optional)

  • Christie Conductor - monitors/controls up to 256 projectors on a single network and can be downloaded at no extra charge
