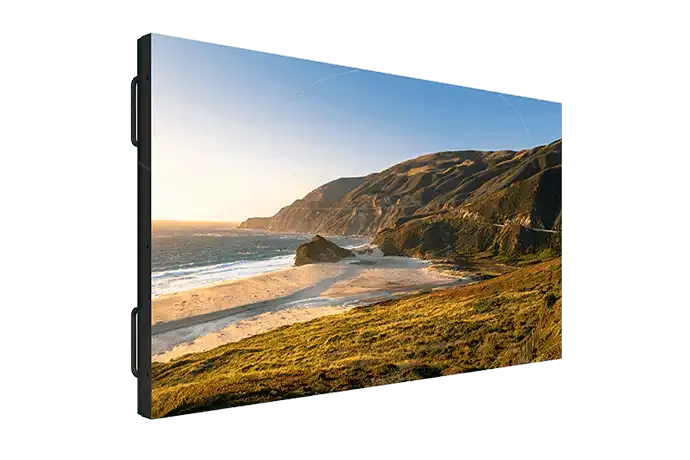

Christie FHD554-XZ-R Extreme Series 55” FHD 500 nit sub-1mm bezel LCD video wall panel with remote power - 135-034108-01

Product Overview

The Christie FHD554-XZ-R (135-034108-01) is an Extreme Series 55-inch FHD LCD video wall panel with 500-nit brightness, an extreme-narrow 0.44mm bezel (0.88mm combined), and remote redundant power. It is engineered for critical-viewing video walls where image continuity and uptime cannot be compromised. An OPS slot accepts embedded processing modules such as Christie Phoenix EP, and built-in processing handles scaling, bezel compensation, and staggered power-up. Factory calibration and panel matching deliver uniform imagery across the entire wall.

Product Description

The FHD554-XZ-R is the remote-power variant of Christie's Extreme Series video wall platform, moving AC-DC conversion off the wall and into external hot-swappable supply modules. This removes heat and weight from the array, improves serviceability, and adds power redundancy — a failed supply can be swapped without touching the wall. Built-in SNMP monitoring through the power rack shelf keeps display status visible to network management systems at all times. The 0.88mm combined bezel produces a near-seamless canvas, while the platform's signal distribution supports 4K UHD at 60Hz with content scaling across arrays up to 10x10. Each panel ships factory-calibrated and matched for color and brightness uniformity, shortening commissioning time. With 500 nits of brightness, 24/7-rated operation, portrait or landscape mounting, and active health monitoring, the panel is purpose-built for environments where operators watch the wall around the clock. The OPS slot accepts processing modules for a self-contained video wall node.

Key Features

• Sub-1mm Bezel (0.88mm Combined) — near-seamless tiled image with 0.44mm per panel edge.
• Remote and Redundant Power — external hot-swappable AC-DC modules remove heat and weight from the wall and add fault tolerance.
• 500-nit Brightness — suited to continuously lit control room environments.
• 4K UHD 60Hz Support — wall-wide signal and control distribution with content scaling up to 10x10 arrays.
• OPS Slot — accepts embedded processing modules such as Christie Phoenix EP.
• SNMP Health Monitoring — display status available via the power rack shelf plus active panel alerts.
• Factory Calibration and Matching — uniform color and brightness across the wall, faster commissioning.
• Slim Installed Depth — under 4 in. (10cm) with optional 6-axis mount; supports ADA-compliant installations.
• 24/7 Operation — rated for continuous mission-critical duty cycles.
• Portrait or Landscape — flexible orientation for creative and operational layouts.

Typical Applications

The FHD554-XZ-R is designed for 24/7 control rooms, network and security operations centers, emergency operations centers, broadcast monitoring, and high-traffic lobbies where redundancy and serviceability justify remote power. Its near-seamless bezel also suits corporate experience centers. Explore companion panels and accessories in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

How is the FHD554-XZ-R different from the FHD554-XZ?
The -R variant uses remote, redundant power via external hot-swappable AC-DC modules, removing heat and weight from the wall and adding supply redundancy.

Can a wall built with these panels display 4K content?
Yes. The platform distributes and scales 4K UHD 60Hz signals across tiled walls up to 10x10 panels.

What fits in the OPS slot?
Embedded processing modules such as the Christie Phoenix EP, enabling a self-contained video wall node.

Is the panel rated for continuous operation?
Yes, it is designed for 24/7 duty in control room environments, with SNMP and active health monitoring.

How thin is the installed wall?
Installed depth is under 4 inches (10cm) with the optional 6-axis mount, supporting ADA-compliant installations.
