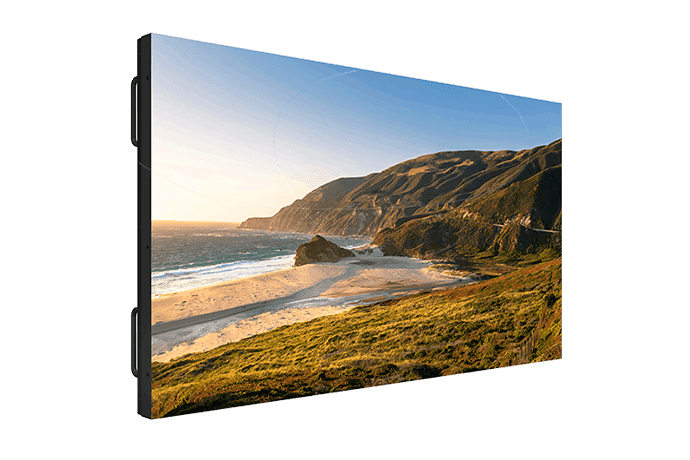

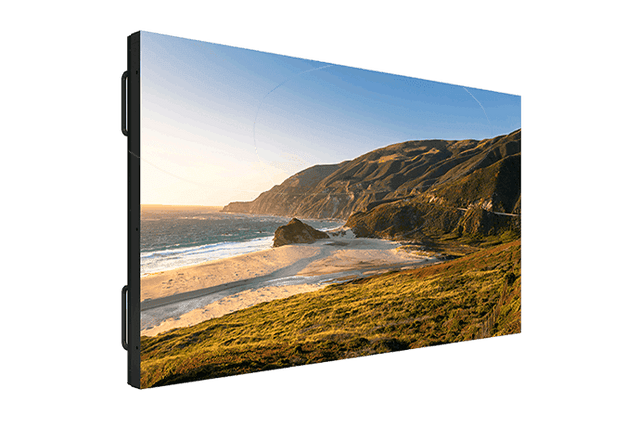

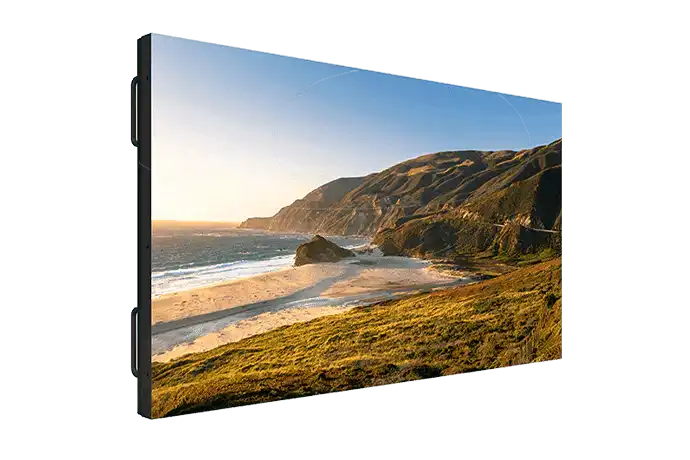

Christie FHD554-XZ-HR Extreme Series 55” FHD 700 nit sub-1mm bezel LCD video wall panel with remote power - 135-032106-01

Product Overview

The Christie FHD554-XZ-HR (135-032106-01) is a 55-inch Full HD LCD video wall panel from the Extreme Series, built for critical 24/7 viewing environments. Its sub-1mm combined bezel — 0.44mm per display, 0.88mm panel-to-panel — produces a near-seamless tiled image, while 700 nits of brightness holds up in bright control rooms. The HR variant adds remote and redundant power via external hot-swappable AC-DC supply modules, moving heat, weight, and a failure point off the wall. An OPS slot accepts embedded processing modules such as Christie Phoenix EP for a complete video wall solution.

Product Description

Extreme Series panels are engineered for video walls that cannot go dark. Remote power architecture is the headline of the XZ-HR: external AC-DC supply modules are hot-swappable and redundant, so a power-supply failure does not take down a display, and service happens at the rack rather than behind the wall. Built-in SNMP monitoring via the power rack shelf keeps display status visible to operations teams at all times, complemented by active panel health and alert monitoring. The display platform supports 4K UHD signals at 60Hz distributed across large tiled walls up to a 10x10 array, with built-in video wall scaling, bezel compensation, and staggered power-up. Each panel is factory-calibrated and matched for image uniformity across the wall, cutting installation and commissioning time. Installed depth is under 4 inches (10 cm) with the optional 6-axis mount, which complies with U.S. ADA regulations, and panels mount in portrait or landscape. Rated for 24/7 operation, the XZ-HR is the specification-grade choice where uptime is non-negotiable.

Key Features

• Sub-1mm Bezel — 0.88mm combined (0.44mm per display) for a near-seamless tiled image.
• 700 nits Brightness — clear imagery in bright, mission-critical control room lighting.
• Remote and Redundant Power — external hot-swappable AC-DC modules remove heat and weight from the wall and add redundancy.
• SNMP Monitoring — display status always available via the power rack shelf, plus active panel health alerts.
• OPS Slot — accepts embedded processing such as Christie Phoenix EP.
• 4K UHD at 60Hz Support — signal and control distribution scales content across walls up to 10x10.
• Factory-Calibrated Panel Matching — uniform color and brightness across the array out of the box.
• Built-In Wall Processing — video wall scaling, bezel compensation, and staggered power-up.
• Slim ADA-Friendly Depth — under 4 in (10 cm) installed with optional 6-axis mount.
• Portrait or Landscape, 24/7 Rated — flexible orientation and continuous-duty operation.

Typical Applications

The FHD554-XZ-HR is specified for control rooms and network operations centers, emergency operations and security monitoring, broadcast facilities, corporate lobbies, and high-end retail video walls where uptime and serviceability matter. Build out your wall with panels and processing from our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What does the HR designation add over the standard FHD554-XZ?
Remote and redundant power: external hot-swappable AC-DC supply modules with SNMP monitoring via the power rack shelf, instead of onboard power.

How large a wall can I build?
The platform supports signal and control distribution across arrays up to 10x10, with 4K UHD content scaling at 60Hz.

Is it suitable for continuous operation?
Yes — the panel is rated for 24/7 operation, and factory calibration keeps the wall uniform over time.

Can I add processing without an external controller?
The OPS slot accepts embedded modules such as Christie Phoenix EP for a self-contained video wall solution.

Does the mount meet ADA requirements?
With the optional 6-axis mount, installed depth stays under 4 inches (10 cm), complying with U.S. ADA regulations.
