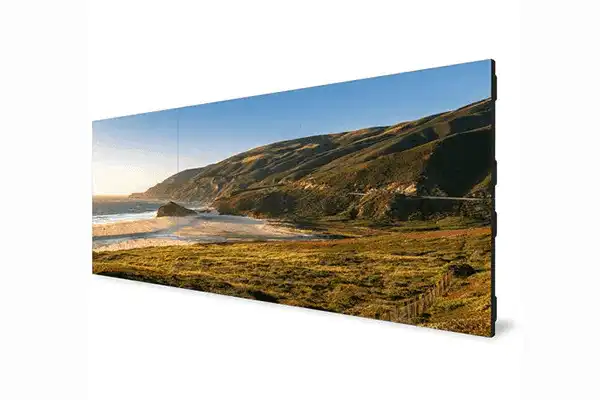

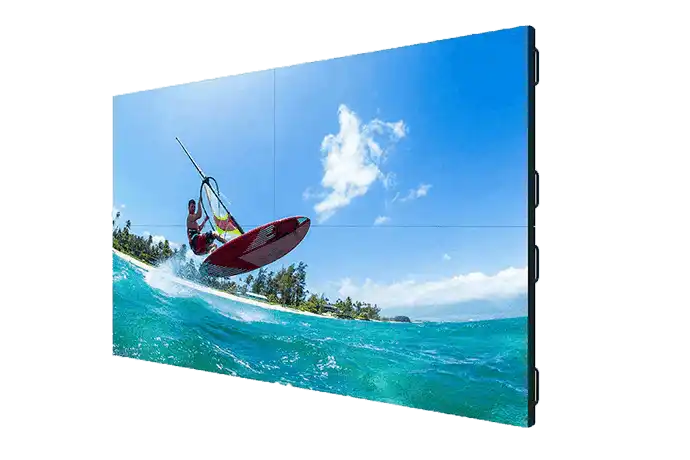

Christie FHD554-XZ Extreme Series 55” FHD 500 nit sub-1mm bezel LCD video wall panel - 135-035109-01

Product Overview

The Christie FHD554-XZ (135-035109-01) is an Extreme Series 55-inch FHD LCD video wall panel with 500-nit brightness and an extreme-narrow 0.44mm bezel — just 0.88mm panel-to-panel. Built for critical viewing environments, it includes an OPS slot for embedded processing modules such as Christie Phoenix EP. The platform supports 4K UHD signals at 60Hz across large tiled walls, and every panel is factory-calibrated and matched for wall-wide uniformity.

Product Description

The FHD554-XZ delivers the Extreme Series sub-1mm bezel in a conventional on-board power configuration, producing a near-seamless image across tiled arrays. Built-in processing covers video wall scaling, bezel compensation, and staggered power-up, reducing dependence on external controllers for basic wall functions. The signal and control distribution architecture carries 4K UHD at 60Hz and scales content across configurations up to 10x10 panels, so high-resolution sources map cleanly onto large canvases. Factory calibration and panel matching mean color and brightness stay uniform across the wall from day one, shortening commissioning. The panel installs at less than 4 inches deep with the optional 6-axis mount, supporting U.S. ADA-compliant installations, and operates in portrait or landscape orientation. Active panel health and alert monitoring keeps operations staff informed, and the panel is rated for 24/7 operation in control room duty cycles.

Key Features

• Sub-1mm Bezel (0.88mm Combined) — 0.44mm per display edge for a near-seamless tiled image.
• 500-nit Brightness — appropriate for continuously lit control room environments.
• OPS Slot — accepts embedded processing modules including Christie Phoenix EP.
• 4K UHD 60Hz Distribution — signal and scaling support across walls up to 10x10 panels.
• Built-in Wall Processing — scaling, bezel compensation, and staggered power-up on board.
• Factory Calibration and Matching — uniform image across the array, faster installs.
• Slim Installed Depth — under 4 in. (10cm) with optional 6-axis ADA-compliant mount.
• Active Health Monitoring — panel status and alerts for proactive maintenance.
• Portrait or Landscape — orientation flexibility for design and operations.
• 24/7 Operation — rated for continuous mission-critical use.

Typical Applications

The FHD554-XZ is specified for control rooms, security and network operations centers, broadcast monitoring walls, corporate lobbies, and experience centers where bezel visibility must be minimized. Its 10x10 scaling capability supports very large canvases in command facilities. Browse matching panels and mounts in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

How visible are the seams between panels?
The combined bezel is just 0.88mm (0.44mm per panel), producing a near-seamless image at normal viewing distances.

Does the wall support 4K sources?
Yes. The platform distributes 4K UHD at 60Hz and scales content across tiled walls up to 10x10 panels.

What goes in the OPS slot?
Embedded processing modules such as the Christie Phoenix EP, enabling distributed processing within the wall itself.

How does this differ from the FHD554-XZ-R?
The XZ uses conventional on-board power; the XZ-R variant adds remote, redundant external power supplies.

Can it run continuously?
Yes, the panel is rated for 24/7 operation in control room environments.
