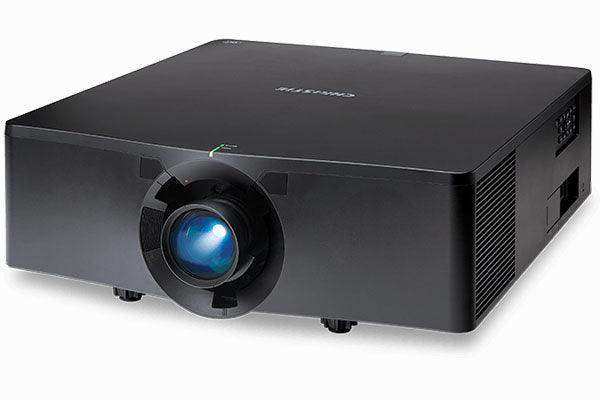

Christie DWU1400A-GS 14,250-Lumen WUXGA DLP Projector (Black, TAA-Compliant, No Lens) - 171-063100-01

Availability: Call for Availability
Availability: Direct Ship
Christie Digital SKU: 171-063100-01
No reviews
Price:
$17,276.00 $19,195.00

Description

The Christie® DWU1400-GS 1DLP® laser projector provides 20,000 hours of reliable, virtually maintenance-free operation. Its small footprint, light weight, quiet operation, full suite of lenses and 24/7 operation durability makes this projector ideal for higher education, places of worship, conferences and smaller location-based entertainment venues. This model is also offered in a TAA-complaint variant. And the DWU1400-GS comes with a 5-year warranty for extra peace of mind.

Built-in Christie Twist™ allows you to seamlessly edge-blend and stack multiple projected images on any 2D or 3D surface and precisely control the geometry of each projector through an easy-to-use grid-point / mesh interface.

With Twist onboard, the DWU1400-GS is compatible with Christie Mystique™ , our automated camera-based alignment and recalibration solution so you can install, align and calibrate multi-projection systems in minutes, with unsurpassed accuracy. For simple 2D setups using up to 3 projectors in a single horizontal array on a flat screen or surface, you can download Mystique Lite at no additional cost and purchase an inexpensive supported webcam to get started.

  • Built-in warping, blending, & alignment – Built-in proprietary Christie Twist and Christie Mystique compatibility, for manual or automated camera-based warping, blending, and alignment
  • Compatible with Christie Intelligent Camera (CIC) – Use CIC to trigger autofocus, automatically calibrate projector color, optimize color uniformity, and more
  • Durability - 20,000 hours of consistent illumination performance makes it ideal for 24/7 operation applications
  • Motorized interchangeable lens suite - Easy powered zoom, focus, and offset using the remote control
  • Flexible connectivity - Optional wireless module for device flexibility, easy presentation set up and standard HDBaseT input
  • Omnidirectional – Operates in any orientation for unlimited installation flexibility
  • Eco Mode – Reduces brightness to 50%, significantly extends the lifetimes of your projector, and results in quieter operation
  • Supports full HD 3D content – For 3D with a single or multi-projector setup via 3D sync in/out capabilities
  • HDBaseT – Delivers Full HD video, audio, network, and control commands on a single ethernet cable
  • Picture-in-Picture/Picture-by-Picture – Simultaneously delivers 2 digital signals via HDMI & DVI ports for enhanced virtual conferencing
  • Medical Training Capable - DICOM simulation mode for advanced grayscale image reproduction, perfect for analyzing x-rays and medical scans for training purposes
  • TAA-compliant
  • 5-year warranty

14,250

ISO lumens



12,000

ANSI lumens



4 Segment (RGBY) - 3X speed

Color wheel



4,000,000:1* with Christie RealBlack™

Contrast ratio



6,000:1

Dynamic contrast



1-chip 0.67" DMD S600HB

Display type



Resolution

WUXGA (1920 x 1200)



Illumination type

High-efficiency blue laser phosphor



Illumination performance (hrs)

20,000 to 50% brightness



Orientation

Omnidirectional



Scan rates

Horizontal: 15-91 kHz Vertical: 24-120 Hz



Pixel clock rate

594 MHz (4096 x 2160)



Signal inputs

  • Standard:
  • - HDMI 2.0 x 2 (HDCP 1.4/2.2)
  • - DVI-D x 1 (digital only)
  • - RJ45 x 1 (HDBase T)
  • - RJ45 x 1 (Control over wired network connection)
  • - 3G-SDI x 1 (BNC)
  • - USB x 1 (Type A)
  • - RS232 in
  • - Built-in backlit keypad
  • - Wired remote control 3.5mm stereo - loop out available for daisy chaining


Signal outputs

  • - HDMI x 1 out


Controls and networking

  • - Ethernet (10/100) RJ45
  • - Built-in backlit keypad
  • - Wired remote control (3.5mm stereo)
  • - IR remote
  • - Control via HDBaseT
  • - RS232 in


Warpin​g and blending

  • Standard:
  • - Christie Twist™
  • Optional:
  • - Christie Twist Premium and Twist Pro
  • - Christie Mystique™ automated camera-based alignment


Lens mount

  • - Boresight adjustable
  • - Motorized horizontal and vertical lens offset
  • - Motorized zoom and focus adjustment


Lens options

  • Lens UST 0.36
  • Lens 0.65-0.75
  • Lens 0.75-0.95 zoom G/GS
  • Lens 0.95-1.22 zoom G/GS
  • Lens zoom HP G/GS 1.22-1.52
  • Lens 1.52-2.89 zoom G/GS
  • Lens 2.90-5.50:1 zoom G/GS


offsets for 0.36:1 UST lens

  • Fixed


offsets for all zoom lenses

  • +100% vertical (600 pixels)
  • +30% horizontal (288 pixels)


Power requirements

  • Operating voltage: - 100-240 VAC @50/60 Hz
  • Power consumption: 985W (max)
  • Operating current: 10A (100V)


Dissipation

  • - ECO1 Mode: 830 BTU
  • - ECO2 Mode: 520 BTU


Audible Noise

  • - Standard mode: 40dBA
  • - Eco mode 37dBA


Dimensions (L x W x H)

  • 21.9 x 18.9 x 7.5 "
  • 555 x 480 x 190mm


Shipping dimensions (L x W x H)

  • 29.9 x 23.6 x 14.7" (759 x 599 x 373mm)


Weight

  • - 50.3lbs (22.8kg) w/o lens


Shipping weight

  • - 66.1lbs (30kg)


Operating environment

  • - 0-40 C (32-104 F)
  • - Relative humidity: 10-85% non-condensing


Regulatory

  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • - Directives: RoHS REACH WEEE
  • - Contact Christie for timing of certifications: UL/CSA/IEC 60950-1
  • FCC Class A CE FDA CCC KC PSE BIS VCCI RCM BSMI CU EAC


Limited warranty

  • - 5 years parts and labor on the projector
  • - 5 years or 20,000 hours parts and labor on the illumination system*
  • - Contact an authorized Christie representative for full details of our limited warranty
  • *Please reference the Christie Standard Limited Warranty document for details
