Christie DWU1100A-GS 11,200-Lumen WUXGA 1DLP Projector (No Lens) - 171-045100-01

Product Overview

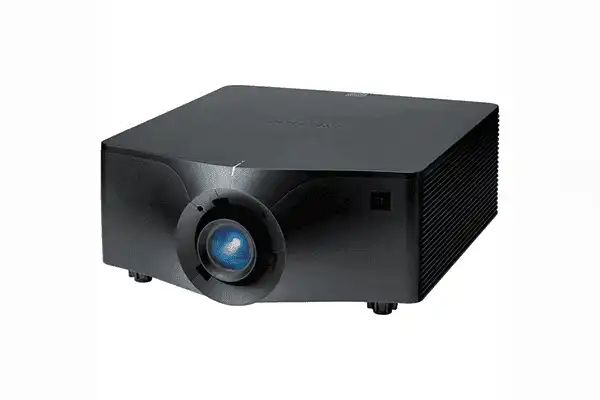

The Christie DWU1100A-GS (171-045100-01, no lens) is an 11,850 ISO lumen (10,000 ANSI) WUXGA 1DLP laser phosphor projector that eliminates lamp and filter replacement entirely, delivering 20,000 hours of illumination life. Its small footprint, light weight, quiet operation, and full motorized lens suite make it a practical fixed-install workhorse, backed by a 5-year warranty. Creation Networks configures the GS Series with lenses from the Christie Digital range.

Product Description

The DWU1100A-GS pairs a 1-chip 0.67-inch DMD with a 4-segment RGBY color wheel at 3X speed, producing WUXGA (1920 x 1200) images with 4,000,000:1 contrast via Christie RealBlack and 6,000:1 dynamic contrast. The high-efficiency blue laser phosphor source is rated 20,000 hours to 50% brightness and supports 24/7 operation. Built-in Christie Twist edge-blends and stacks projected images on any 2D or 3D surface through a grid-point/mesh interface, and Christie Mystique compatibility automates camera-based warping and blending — Mystique Lite is a free download for simple arrays of up to three projectors on a flat surface. Connectivity includes dual HDMI 2.0, DVI-D, 3G-SDI, HDBaseT, and USB, with control over Ethernet with ChristieNET, RS232, HDBaseT, and wired remote with loop-out for daisy chaining. The chassis is omnidirectional, supports Full HD 3D via sync in/out, offers Picture-in-Picture/Picture-by-Picture from HDMI and DVI, and includes DICOM simulation mode for medical training content.

Key Features

• 11,850 ISO Lumens WUXGA — strong brightness for mid-sized venues from a compact, lightweight 1DLP chassis.
• Lamp-Free 20,000-Hour Source — laser phosphor illumination removes lamp and filter maintenance, rated for 24/7 duty.
• High Contrast — 4,000,000:1 with Christie RealBlack and 6,000:1 dynamic contrast.
• Built-In Twist, Mystique Compatible — onboard warping/blending plus optional automated alignment; Mystique Lite free for simple arrays.
• Motorized Interchangeable Lens Suite — powered zoom, focus, and offset from the remote.
• HDBaseT — Full HD video, audio, network, and control on a single Ethernet cable.
• Full HD 3D Support — single or multi-projector 3D via 3D sync in/out.
• PiP/PbP — two simultaneous digital signals via HDMI and DVI for conferencing.
• Omnidirectional and Quiet — any mounting orientation, down to 35 dBA in Eco mode.
• 5-Year Warranty — 5 years parts and labor, 5 years or 20,000 hours on illumination.

Typical Applications

The DWU1100A-GS is suited to higher education lecture halls, houses of worship, conference centers, museums and smaller location-based entertainment venues, and continuous-duty exhibit or signage projection where lamp maintenance is impractical.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Does this projector ship with a lens?
No — this SKU is lens-less. The motorized G/GS lens suite covers UST through long-throw options; Creation Networks will spec the correct lens for your room.

Can it operate around the clock?
Yes. The lamp-free laser phosphor source is rated 20,000 hours to 50% brightness and the projector is designed for 24/7 operation.

How does it handle multi-projector setups?
Christie Twist is built in for warping and blending; Mystique Lite (free) automates alignment for up to three projectors on a flat surface, and paid Mystique editions handle larger or curved arrays.

What integration paths are available?
HDBaseT carries video, audio, network, and control on one cable, with Ethernet/ChristieNET, RS232, and wired remote loop-through for control system integration. Request a quote from Creation Networks for system pricing.
