Product Overview

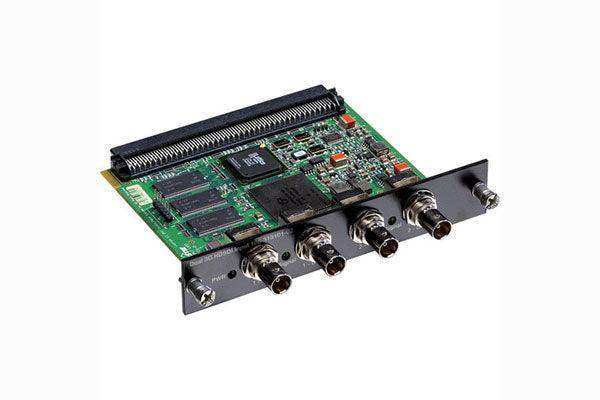

The Christie Dual 3G SD/HD-SDI Input Card (108-313101-02) adds two 3 Gb/s SDI inputs to compatible Christie projectors, accepting SD-SDI, HD-SDI, and 3G-SDI signals in any combination. Both single-link and dual-link HD signals are supported. Two matching SDI outputs provide loop-through for each input, simplifying signal distribution to downstream devices.
Product Description
SDI remains the backbone of broadcast and live production signal transport, and this input card brings native SDI connectivity to Christie's modular projector platforms. Each of the two BNC inputs accepts SD, HD, or 3G-SDI independently, so a projector can take a 3G feed on one input and an HD backup on the other. Dual-link HD support accommodates higher-bandwidth formats carried across both inputs. The paired loop-through outputs re-drive each input signal to downstream projectors or monitors, which keeps daisy-chained multi-projector rigs clean without external distribution amplifiers. Compatibility spans a wide range of Christie platforms, including the Boxer 4K30, CP42LS, DS, HD, and WU/WX series, DLV1400-DL and DLV1920-DL, Matrix StIM, Mirage series, Roadster series, and Christie DLP LED models. For rental, staging, and broadcast facilities standardized on SDI infrastructure, the card slots directly into the projector's input bay, keeping conversion gear out of the signal path.
Key Features
- Dual 3G/HD/SD-SDI Inputs — two independent BNC inputs accept any mix of SD, HD, and 3G-SDI signals.
- Dual-Link HD Support — accepts both single-link and dual-link HD-SDI formats.
- Loop-Through Outputs — two re-driven SDI outputs feed downstream projectors or monitors without external DAs.
- Broad Projector Compatibility — Boxer 4K30, CP42LS, DS/HD/WU-WX series, Mirage, Roadster, Matrix StIM, DLV models, and DLP LED platforms.
- Native SDI Workflow — eliminates HDMI conversion in broadcast and staging signal chains.
- Modular Slot-In Design — installs in the projector's input card bay for field reconfiguration.
Typical Applications
This card serves Christie projector systems in broadcast studios, live event staging, rental inventories, simulation environments using Matrix StIM and Mirage platforms, and venues with long coax signal runs where SDI is the standard transport. Find compatible input cards and projector accessories in our Christie Digital collection.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 108-313101-02 |
| Connectors | 2x 3G/HD/SD-SDI input; 2x 3G/HD/SD-SDI loop-through output |
| Supported Signals | SD-SDI, HD-SDI, 3G-SDI; single-link and dual-link HD |
| Compatibility | Boxer 4K30; Christie CP42LS; DS, HD, WU/WX series; DLV1400-DL, DLV1920-DL; HD DLP LED; Matrix StIM; Mirage series; Roadster series; SXGA+ DLP LED; WUXGA DLP LED |
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 13.3 x 6.6 x 2.7" |
Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
What signal types does the card accept?
SD-SDI, HD-SDI, and 3G-SDI on either input, in any combination, including single-link and dual-link HD.
What are the loop-through outputs for?
Each input has a matching re-driven output, letting you chain the same signal to additional projectors or monitors without an external distribution amplifier.
Which projectors accept this card?
A broad range, including Boxer 4K30, CP42LS, DS/HD/WU-WX series, Mirage, Roadster, Matrix StIM, DLV models, and Christie DLP LED platforms. Verify your projector's input card bay before ordering.
Can I feed two different sources at once?
Yes. The two inputs are independent, so a primary and backup feed (or two distinct sources) can connect simultaneously.
