Christie Core Series III 0.9mm LED Video Wall Tile - LED009-C3-I
What is the Christie Core Series III 0.9mm LED video wall tile?

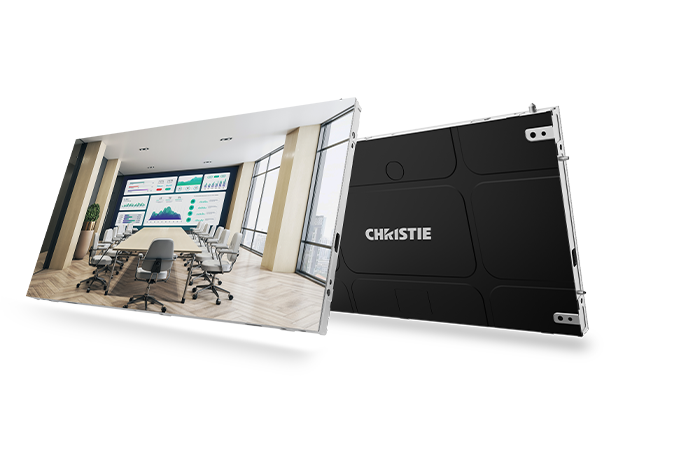

The Christie Core Series III 0.9mm LED Video Wall Tile (LED009-C3-I) is a 0.9mm direct-view LED tile from Christie Digital. Core Series III is Christie's value line: 800 nits, 24/7 operation, and a 16:9 tile that scales cleanly to HD and 4K, in a cabinet up to 30% lighter and up to 40% more energy efficient than Core Series II. This pitch suits close-viewing meeting rooms, executive spaces, and control rooms.
What is included?
One Christie Core Series III 0.9mm LED tile, model LED009-C3-I
ADA-compliant direct-mount system
Christie E510 or E600 controller sold separately and quoted with the wall
How does the Christie Core Series III 0.9mm work?

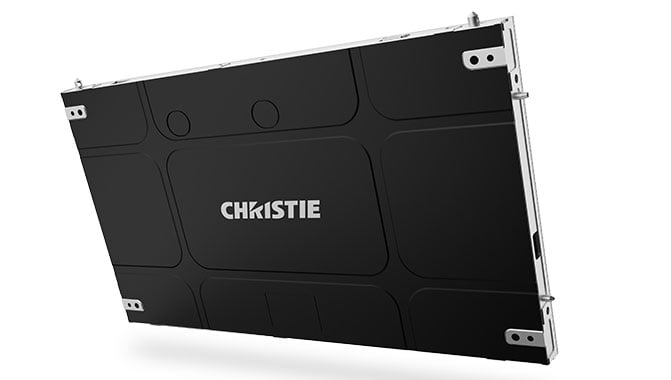

Each 600 x 337.5 mm die-cast aluminum tile hangs on Christie's ADA-compliant direct-mount system, which keeps the wall only 60 mm deep. Cables are concealed inside the design, and every tile and module is serviced from the front, so the wall can sit flush against a finished surface. A Christie E510 or E600 controller feeds the wall from HDMI 2.0, DisplayPort 1.2, or dual DVI-D sources with up to 8-bit input color.
Because the tile is 16:9, standard resolutions fall out in simple grids: 3 x 3 tiles for 1920 x 1080 and 6 x 6 tiles for 4K UHD at this pitch. Compare the 1.2mm, 1.5mm, 1.8mm, 2.5mm tiles, or browse more video walls.
What are the key features of the Christie Core Series III 0.9mm?
0.9mm pixel pitch — 640 x 360 pixels per tile.
800 nits calibrated brightness, 160° viewing angle.
16:9 tiles — 3 x 3 for HD, 6 x 6 for 4K UHD.
Up to 40% lower power than Core Series II.
30% lighter cabinet, 60 mm installed depth.
Full front service and concealed cabling.
24/7 rated with 100,000-hour LED life.
Three-year warranty.
Where is the Christie Core Series III 0.9mm typically used?

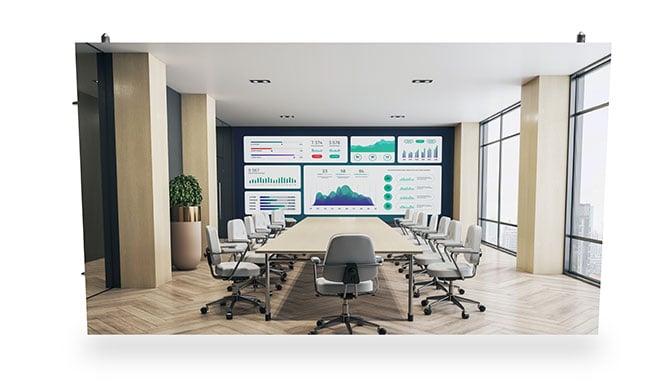

Corporate lobbies and meeting rooms

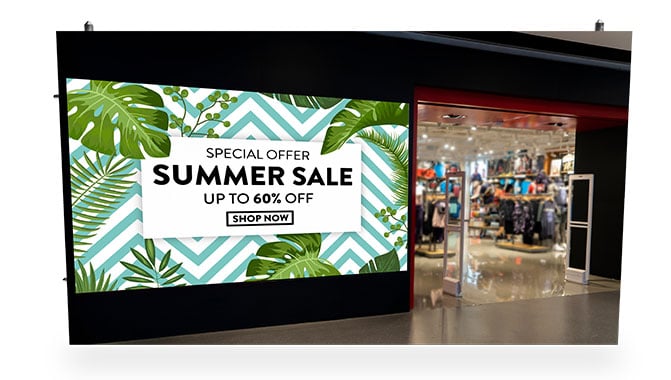

Retail and hospitality signage
Education and training spaces
Government and public spaces
Houses of worship and event spaces
Technical Specifications
| Model | LED009-C3-I |
| Pixel pitch | 0.9mm |
| Pixel configuration | Mini 2 x 2 |
| Pixel density | 1,137,777 pixels/m² |
| Brightness (calibrated) | 800 nits |
| Aspect ratio | 16:9 |
| Contrast | 5,000:1 at 1 lux; 1,500:1 at 10 lux |
| Viewing angle | 160° H / 160° V |
| Refresh rate | Greater than 3,840 Hz |
| Scan rate | 1/36 |
| Color | 14-bit, 4.39 trillion colors; 97% NTSC; 3,000–9,500 K |
| Tile resolution | 640 x 360 pixels |
| Tiles for HD (1920 x 1080) | 3 x 3 |
| Tiles for UHD (3840 x 2160) | 6 x 6 |
| Tile size | 23.62 x 13.29 x 1.14" (600 x 337.5 x 29 mm); 2.36" (60 mm) deep installed |
| Tile diagonal / area | 27.1" (688 mm) / 2.18 sq ft (0.2025 m²) |
| Power per tile | 63W typical / 185W maximum |
| Heat per tile | 215 / 631 BTU/hr (typical / maximum) |
| Power input | 100–240 VAC, 50–60 Hz |
| Weight | 9.92 lbs (4.5 kg) net per tile; 11.24 lbs (5.1 kg) installed |
| Environment | Indoor, IP20, 32–104°F (0–40°C), 24/7 |
| LED lifespan | 100,000 hours (typical) |
| Construction | Die-cast aluminum, full front service |
| Mounting | ADA-compliant direct-mount system included; flat installs |
| Controller | Christie E510 or E600 (sold separately) |
| Warranty | 3 years parts and labor |
Frequently Asked Questions
How is Core Series III priced?
Walls are quoted as a system based on size, pitch, and controller. Send us your wall size and viewing distance and we'll build the bill of materials.
How many tiles do I need for HD or 4K?
At 0.9mm, a 3 x 3 grid gives 1920 x 1080, and a 6 x 6 grid gives 3840 x 2160.
What controller does it use?
Christie's E510 or E600 controller, ordered separately. Inputs include HDMI 2.0, DisplayPort 1.2, and dual DVI-D.
Is Core Series III TAA-compliant?
No. For TAA projects, consider Christie MicroTiles LED, which is made in Canada.
Can it be serviced from the front?
Yes. Tiles and modules are fully front serviceable, so the wall can mount flush to a finished surface.
