Christie 5.7 to 9.0:1 Zoom Lens - 103-123107-01

Product Overview

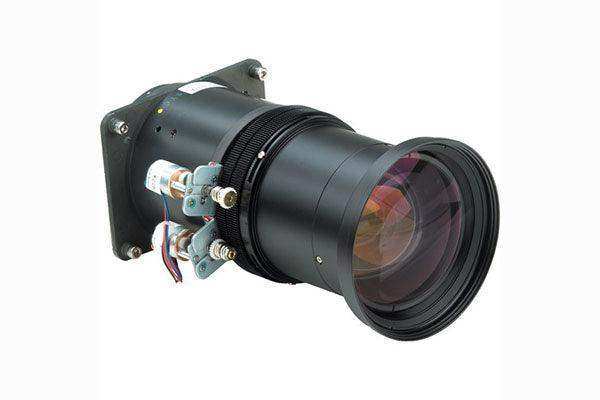

The Christie 5.7 to 9.0:1 Zoom Lens is a motorized long-throw zoom lens for the Christie LHD700 and LX700 projectors. With the LX700 it delivers a 5.71 to 9.0:1 throw ratio, and with the LHD700 a 5.71 to 8.96:1 throw ratio, placing the projector roughly 5.7 to 9 times the image width from the screen. Motorized zoom and focus allow remote adjustment after installation. It is the lens choice for long-distance projection positions such as rear-of-house booths and high mounting points.

Product Description

Long-throw lenses let integrators place a projector far from the screen — in a projection booth, on a distant truss position, or at the back of a deep venue — while still filling the intended image size. This Christie lens covers throw distances from 25.3 to 257.5 feet (7.7 to 78.5 m), with a 1.57x zoom ratio that provides flexibility in final image sizing without moving the projector. The optical design runs f/2.2 to 2.7 with a focal length of 148 to 234mm. Generous lens shift — vertical 10:0 to 1:1 and horizontal 3:2 to 2:3 — helps align the image to the screen geometry without keystone correction. Because zoom and focus are motorized, adjustments can be made from the projector's control system after the unit is rigged or ceiling-mounted. The lens measures 4.5 inches in diameter by 9.0 inches long and weighs 4.3 lb (1.95 kg). Browse more Christie lenses in our Christie Digital collection.

Key Features

• Long-Throw Coverage — 5.71 to 9.0:1 throw ratio on LX700 (5.71 to 8.96:1 on LHD700) for deep venues.
• Motorized Zoom and Focus — remote adjustment after the projector is rigged or ceiling-mounted.
• 1.57x Zoom Ratio — flexibility in image sizing without relocating the projector.
• Wide Throw Distance Range — 25.3 to 257.5 ft (7.7 to 78.5 m).
• Generous Lens Shift — vertical 10:0 to 1:1, horizontal 3:2 to 2:3 for clean geometric alignment.
• f/2.2–2.7 Optics — 148 to 234mm focal length design for the LHD700/LX700 platform.

Typical Applications

Suited to auditoriums, lecture halls, houses of worship, theaters, and rental/staging positions where the LHD700 or LX700 must project from a rear booth, balcony, or distant truss point.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which projectors does this lens fit?

Per Christie vendor data, the lens is compatible with the Christie LHD700 and LX700 projectors.

How far from the screen can the projector be placed?

The lens supports throw distances from 25.3 to 257.5 feet (7.7 to 78.5 m), with the image width roughly 1/5.7 to 1/9 of the throw distance depending on zoom.

Is the lens motorized?

Yes. Zoom and focus are motorized, so adjustments can be made remotely after the projector is installed in a booth or on truss.

Does it support lens shift?

Yes — vertical shift of 10:0 to 1:1 and horizontal shift of 3:2 to 2:3 per vendor data, allowing geometric alignment without keystone correction.
