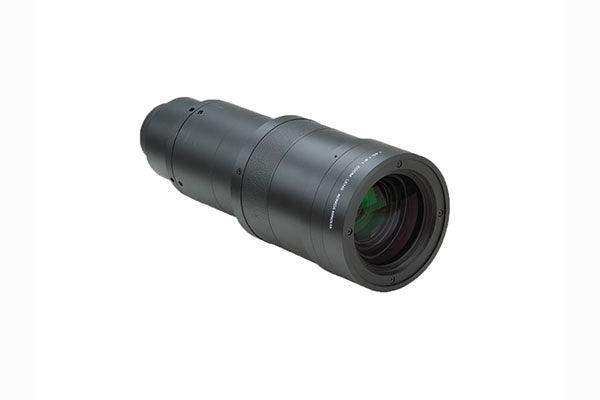

Christie 3.89-5.43:1 ILS High-Brightness Zoom Lens - 144-108100-03

Product Overview

The Christie 144-108100-03 is a high-brightness ILS4 zoom projection lens with a 3.89-5.43:1 throw ratio. It is designed for long-throw installations where the projector must sit well back from the screen. As an ILS4 (Intelligent Lens System) lens, it supports motorized, repeatable recall of lens position settings on compatible Christie 3DLP projectors.

Product Description

This long-zoom lens extends the placement flexibility of Christie's ILS4-compatible 3DLP projector platforms. The 3.89-5.43:1 throw ratio means the projection distance is roughly 3.89 to 5.43 times the projected image width, making the lens appropriate for deep rooms, balcony projection booths, and large venues where the projector cannot be placed close to the screen. The high-brightness optical design prioritizes light throughput, preserving as much of the projector's lumen output as possible across the zoom range. Because it is part of the Intelligent Lens System family, the lens is automatically recognized when installed and supports motorized zoom and focus with accurate position recall. Confirm compatibility with your specific Christie projector model before ordering; our team can verify fit against your chassis part number.

Key Features

• 3.89-5.43:1 Throw Ratio — long-throw coverage for deep venues and projection booths.
• High-Brightness Optical Design — maximizes light throughput from high-output 3DLP projectors.
• ILS4 Intelligent Lens System — automatic lens recognition on compatible Christie projectors.
• Motorized Zoom and Focus — remote adjustment with repeatable position recall.
• Genuine Christie Optic — engineered and matched to Christie 3DLP light engines.

Typical Applications

• Large auditoriums and arena projection from rear booths
• Live events and staging with long projector-to-screen distances
• Houses of worship with balcony-mounted projection
• Large-venue rental and staging inventories

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which projectors does this lens fit?
It is an ILS4-format lens for compatible Christie 3DLP projectors. Contact us with your projector part number and we will confirm fit before you order.

What does a 3.89-5.43:1 throw ratio mean?
The projector must be positioned 3.89 to 5.43 times the image width away from the screen, which suits long-throw installations such as rear booths and balconies.

Is zoom and focus motorized?
Yes. ILS4 lenses support motorized zoom and focus with automatic recognition and repeatable position recall on compatible projectors.

Do you carry other throw ratios?
Yes. Browse the Christie Digital collection for the full range of Christie ILS lenses.
