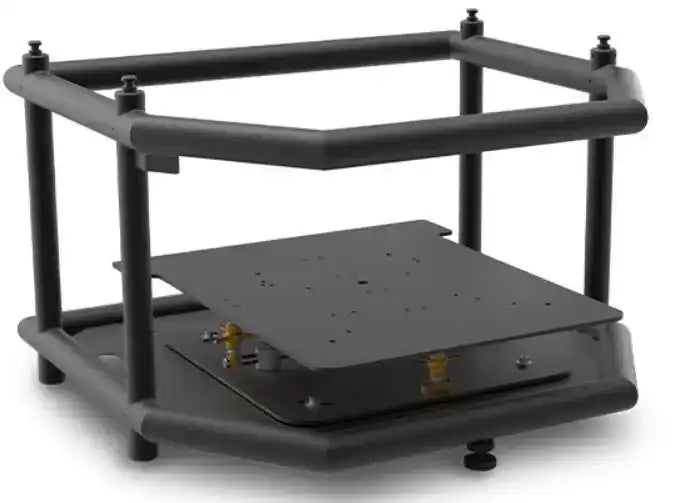

Christie 140-155102-01 Christie One Rigging Frame V2 for HS, H, GS and Inspire Series, Steel, 76 lbs

Product Overview

The Christie One Rigging Frame V2 (140-155102-01) is a redesigned single-assembly rigging frame for Christie HS, H, GS, and Inspire Series 1DLP projectors. It was engineered specifically to accommodate ultra short throw (UST) L-shaped lenses such as the HS UST 0.38 lens, making it the correct frame choice for newer HS Series installations. Built from steel and weighing 76 lb, it supports stacking of up to three projectors and portrait truss mounting. It attaches securely to the bottom of the projector for fast, repeatable rigging.

Product Description

The One Rigging Frame V2 addresses a key limitation of earlier frames: clearance for L-shaped UST optics. With the HS UST 0.38 lens supported, integrators can fly or stack HS Series projectors in short-throw applications without custom fabrication. The frame fastens to the bottom of the projector as a single assembly, then supports hanging in normal or inverted orientations with up to three projectors stacked for additive brightness or redundancy. It can also mount projectors to truss in portrait orientation for creative content layouts. Compatibility extends across Christie HS Series 1DLP projectors as well as GS and Inspire Series 1DLP models, allowing rental houses to standardize on one frame across multiple fleets. Steel construction provides the rigidity needed for flown multi-projector arrays. See the full lineup of Christie rigging hardware in our Christie Digital collection.

Key Features

• UST L-Shaped Lens Support — designed for ultra short throw L-shaped lenses, including the HS UST 0.38 lens.
• Broad 1DLP Compatibility — fits Christie HS, GS, and Inspire Series 1DLP projectors.
• Three-High Stacking — supports up to three stacked projectors in normal or inverted orientations.
• Portrait Truss Mounting — enables truss mounting in portrait orientation for vertical content.
• Single-Assembly Attachment — secures to the bottom of the projector for quick, repeatable rigging.
• Steel Construction — 76 lb frame provides the rigidity required for flown multi-projector arrays.

Typical Applications

This frame is suited to live events, touring and rental staging, auditoriums, houses of worship, museums, and immersive installations — particularly short-throw projection mapping scenarios where HS Series projectors with UST lenses must be flown or stacked close to the projection surface.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What is different about the One Rigging Frame V2 versus the original?

The V2 (140-155102-01) is redesigned to support ultra short throw L-shaped lenses such as the HS UST 0.38, giving it compatibility with Christie's newer HS Series 1DLP projectors in short-throw configurations.

Which projector series does this frame support?

Per Christie vendor data, it supports HS Series, GS Series, and Inspire Series 1DLP projectors. Verify your specific model with Creation Networks before ordering.

How many projectors can be stacked?

The frame supports stacking of up to three projectors in either normal or inverted orientations, and it can also mount a projector to truss in portrait orientation.

Can this frame be flown from truss?

Yes. It is a single-assembly rigging frame intended for hanging in normal or inverted orientations and for truss mounting, including portrait-orientation rigging.
