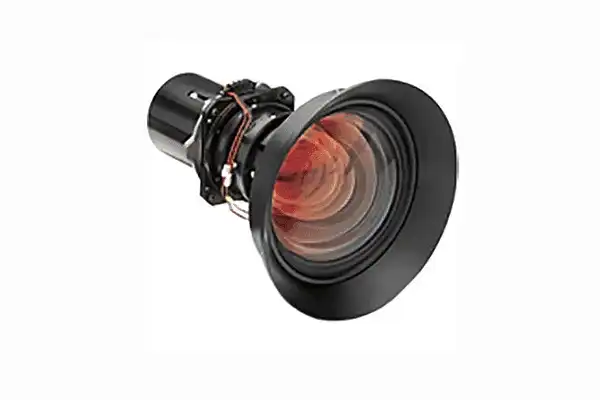

Christie 140-109101-01 1DLP; HS-Series; Lens 1.2-1.5_1 Zoom H; 1.2-1.5:1 Zoom Lens (Full ILS), H/HS Series

Product Overview

The Christie 140-109101-01 is a 1.2-1.5:1 short zoom lens with Full ILS (Intelligent Lens System) support, built for Christie 1DLP H and HS Series laser projectors. It is compatible with the Christie D12HD-H and D12WU-H, giving integrators a flexible short-throw option for tighter rooms. With a throw ratio of 1.2 to 1.5:1, the projector can sit roughly 1.2 to 1.5 times the image width from the screen. Full ILS support allows zoom, focus, and offset settings to be stored and recalled from the projector.

Product Description

Lens selection determines where a Christie H/HS Series projector can physically be placed, and the 140-109101-01 covers the short-throw end of the range. Its 1.2-1.5:1 throw ratio suits meeting rooms, classrooms, and staging positions where the projector must be mounted close to the screen. Generous lens shift — up to ±120% vertical and ±50% horizontal at WUXGA, and ±133% vertical and ±50% horizontal at HD — lets installers position the D12HD-H or D12WU-H off-axis without keystone correction, preserving full image quality. Because the lens is part of the Full ILS ecosystem, lens positions can be saved as presets and recalled remotely, which is valuable in multi-format venues that switch between screen sizes. The bayonet-style design swaps quickly in the field, so rental and staging operators can reconfigure throw distances between events. As genuine Christie glass, it is matched optically to the H/HS Series light engines for consistent edge-to-edge sharpness.

Key Features

• 1.2-1.5:1 Short Throw Ratio — places the projector close to the screen for compact rooms and shallow staging positions.
• Full ILS Support — zoom, focus, and shift positions can be stored and recalled from the projector for repeatable setups.
• Wide Lens Shift Range — up to ±120% vertical / ±50% horizontal (WUXGA) and ±133% vertical / ±50% horizontal (HD) for flexible mounting.
• D12HD-H / D12WU-H Compatibility — purpose-built for Christie H Series 1DLP laser projectors.
• Motorized Zoom Range — remote adjustment eliminates ladder trips for fine-tuning after installation.
• Field-Swappable Design — quick lens changes support rental, staging, and multi-venue workflows.
• Genuine Christie Optics — matched to the projector light engine for uniform focus and brightness.

Typical Applications

This short zoom lens serves Christie H/HS Series installations in corporate boardrooms, lecture halls, houses of worship, and live event staging where throw distance is limited. It is also a common choice for rear-projection configurations and rental inventories that need a short-throw option alongside standard lenses. Pair it with other H/HS Series lenses from our Christie Digital collection to cover a full venue range.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which projectors does the 140-109101-01 fit?
It is built for Christie H/HS Series 1DLP laser projectors, specifically the D12HD-H and D12WU-H.

What does the 1.2-1.5:1 throw ratio mean in practice?
For a 10-foot-wide image, the projector lens sits roughly 12 to 15 feet from the screen, adjustable across the zoom range.

Does this lens support saved lens positions?
Yes. With Full ILS, zoom, focus, and shift settings can be stored on the projector and recalled as presets.

How much lens shift is available?
Up to ±120% vertical and ±50% horizontal at WUXGA resolution, and ±133% vertical and ±50% horizontal at HD.
