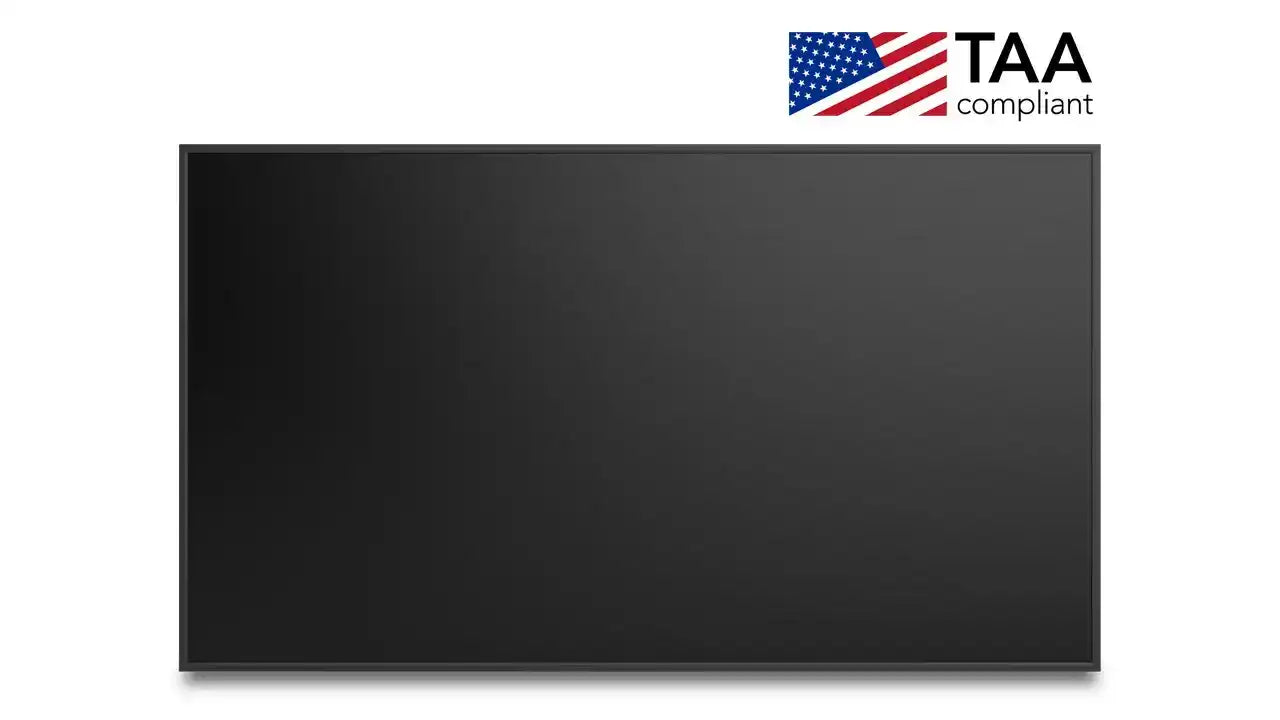

Christie- SUHD98-V3 135-054100-01 SECURE SERIES III - 98IN

Product Overview

The Christie SUHD98-V3 Secure Series III (135-054100-01) is a 98-inch 4K UHD LCD panel purpose-built for the highest-security environments. Its design eliminates conventional attack layers — no RF, no Wi-Fi, no Android or Linux smart platform — and adheres to strict data protection protocols including Letter of Volatility compliance. Rated for 24/7 operation with a 50,000-hour direct LED backlight, it is both TAA- and NDAA-compliant. Creation Networks supplies Secure Series panels within the Christie Digital range.

Product Description

Secure Series III addresses display security at the hardware level rather than through configuration. The panel contains no RF capability, removing wireless attack vectors entirely, and avoids the embedded vulnerabilities typical of Android or Linux-based smart displays. Firmware updates are signed and encrypted, preventing unauthorized software or malware installation, and the absence of non-volatile screen memory means all screen information is erased at power-down to satisfy Letter of Volatility requirements. RS-232, LAN, IR, and keypad interfaces can each be disabled to match facility policy. Image performance matches the security posture: 4K UHD at 60 Hz from a 10-bit panel producing 1.07 billion colors, 500-nit typical brightness, 1,200:1 contrast, and 178-degree viewing angles. Six video inputs (2x DisplayPort 1.2, 2x HDMI 2.0, 2x HDMI 1.4) plus DisplayPort loop-out support multi-source rooms, and built-in Quadview, PiP, and PBP show up to four UHD windows without an external processor. Source switching for failover, dual 10W speakers, anti-glare treatment, and portrait/landscape mounting round out a panel designed for continuous mission-critical duty.

Key Features

• Hardware-Level Security — non-RF design with no Wi-Fi and no Android/Linux smart platform eliminates common attack layers.
• Encrypted, Signed Firmware — prevents unauthorized software access and malware installation.
• Letter of Volatility Compliance — no non-volatile screen memory; all screen data erases at power-down.
• Configurable Interfaces — disable RS-232, LAN, IR, and keypad individually per facility policy.
• TAA- and NDAA-Compliant — qualified for US government and defense procurement.
• 98-Inch 4K UHD, 10-Bit — 3840 x 2160 at 60 Hz with 1.07 billion colors and 500-nit brightness.
• Four-Window Multi-Source Viewing — Quadview, PiP, and PBP of UHD sources without an external processor.
• 24/7 Operation — 50,000-hour direct LED backlight and reliable power supply for continuous duty.
• Failover Source Switching — automatic switching maintains content during source loss.
• 3-Year Limited Warranty — with extended coverage available through Christie partners.

Typical Applications

The SUHD98-V3 is designed for SCIFs and classified briefing rooms, small- to mid-sized control rooms and situation rooms, government and defense boardrooms, training centers, and mobile command units — anywhere display integrity and data volatility requirements are non-negotiable.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What makes Secure Series III different from a standard commercial display?
Security is built into the hardware: no RF or Wi-Fi, no embedded Android/Linux OS, signed and encrypted firmware, no non-volatile screen memory, and individually disablable control interfaces — properties standard panels cannot be configured to match.

Does it satisfy Letter of Volatility requirements?
Yes. The panel has no non-volatile screen memory, so all screen information and data are erased on power-down, supporting Letter of Volatility documentation for secure facilities.

Can it show multiple sources without a processor?
Yes. Built-in Quadview, PiP, and PBP display up to four UHD windows, and failover source switching maintains content if a source drops.

Is it eligible for federal procurement?
The SUHD98-V3 is both TAA- and NDAA-compliant. Creation Networks supports government purchasing workflows — request a quote.
