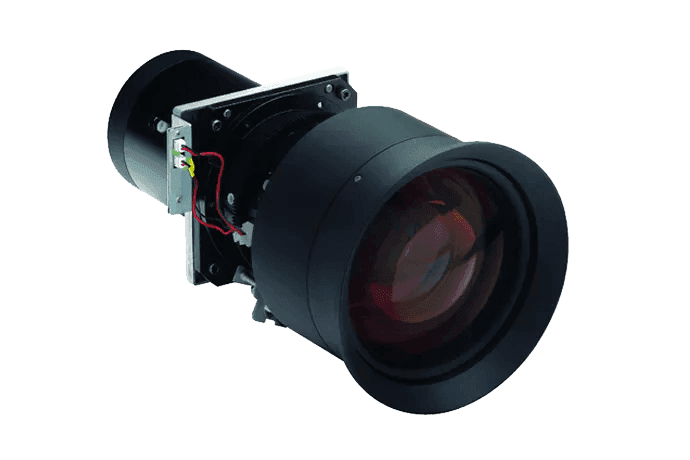

Christie 1.02-1.36:1 short zoom lens - 140-115108-02

Product Overview

The Christie 140-115108-02 is a 1.02-1.36:1 short zoom lens for Christie 1DLP H and HS Series laser projectors. It features motorized zoom and focus control, with a throw ratio that places the projector at roughly one to 1.36 times the image width from the screen. Compatibility includes the D12WU-H and HS Series D12HD-HS, D13HD-HS, D13WU-HS, D16HD-HS, D16WU-HS, and D20WU-HS. Note that this lens does not include zoom or focus memory.

Product Description

The 140-115108-02 fills the gap between ultra-short and standard zoom options in the H/HS Series lens family. Its 1.02-1.36:1 throw ratio handles rooms and staging positions where the projector must sit close to the screen — around one image-width away — while the zoom range still provides meaningful adjustment latitude during commissioning. Motorized zoom and focus allow technicians to fine-tune the image from the remote or control system rather than at the lens, which is the practical reality for ceiling- and truss-mounted laser projectors up to the 20,000-lumen-class D20WU-HS. One configuration note for system designers: this lens does not store zoom or focus memory positions, so it is best suited to installations with a fixed screen format rather than venues that recall multiple lens presets. The lens exchanges in the field with other H/HS Series optics, supporting rental and staging fleets, and as genuine Christie glass it holds focus uniformity across the laser light engines it serves.

Key Features

• 1.02-1.36:1 Short Throw Ratio — close projector placement at roughly one image-width from the screen.
• Motorized Zoom and Focus — remote adjustment for rigged and ceiling-mounted projectors.
• Broad HS Series Coverage — fits D12WU-H, D12HD-HS, D13HD-HS, D13WU-HS, D16HD-HS, D16WU-HS, and D20WU-HS.
• Field-Exchangeable Mount — swaps with other H/HS Series lenses per venue.
• Genuine Christie Optics — matched to H/HS laser light engines for uniform sharpness.
• Fixed-Install Oriented — no zoom/focus memory; ideal for single-format screen installations.

Typical Applications

This short zoom suits Christie H/HS Series projectors in meeting rooms, lecture theaters, houses of worship, trade show environments, and staging positions with limited depth, scaling up to large-venue D16 and D20 HS-class installs. Review the full H/HS lens range in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which projectors accept the 140-115108-02?
Christie H/HS Series laser projectors: D12WU-H, D12HD-HS, D13HD-HS, D13WU-HS, D16HD-HS, D16WU-HS, and D20WU-HS.

Are zoom and focus motorized?
Yes, both are motor-driven for remote adjustment. Note the lens does not store zoom or focus memory positions.

What does the missing lens memory mean in practice?
The projector cannot recall preset lens positions with this lens, so it is best matched to installations using a single fixed screen size.

How close can the projector sit to the screen?
Roughly 1.02 to 1.36 times the image width — about 10.2 to 13.6 feet for a 10-foot-wide image.
