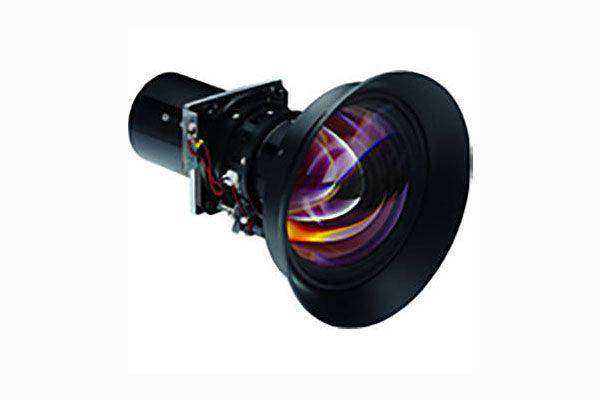

Christie 0.84 to 1.02:1 Short Zoom Lens - 140-114107-01

Product Overview

The Christie 0.84 to 1.02:1 Short Zoom Lens (140-114107) is an ultra-short-throw zoom option for Christie 1DLP H and HS Series laser projectors. With a throw ratio of 0.84 to 1.02:1, the projector sits at less than the width of the projected image from the screen — roughly 0.84 to 1.02 times the image width. Listed compatibility includes the Christie D12HD-H and D12WU-H, with vendor data also referencing D13, and HS Series D12, D13, D16, and D20 models.

Product Description

When room depth is the limiting factor, the 140-114107 covers the shortest zoom range in this part of the H/HS Series lens family. A throw ratio under 1:1 lets the projector mount almost directly above or below the screen plane, which is essential for shallow stages, rear-projection cabinets with limited cabinet depth, and exhibit enclosures. Unlike fixed ultra-short-throw optics, this lens retains a zoom range, giving installers fine control over image size without moving the projector — a meaningful advantage during commissioning and when screens are replaced or resized. The lens uses Christie's standard H/HS mount and exchanges quickly with longer-throw lenses, supporting rental and staging inventories that must adapt to varied venues. As genuine Christie glass, it is optically matched to the H/HS laser light engines to maintain corner-to-corner focus at very short distances, where lens quality is most visible.

Key Features

• 0.84-1.02:1 Ultra-Short Throw Ratio — projector placement at less than one image-width from the screen.
• Zoom Adjustment — image sizing flexibility uncommon at this throw range.
• H/HS Series Compatibility — fits Christie D12HD-H and D12WU-H; vendor data also lists D13 and HS Series D12/D13/D16/D20 models.
• Quick-Change Mount — swaps with other H/HS Series lenses in the field.
• Genuine Christie Optics — matched to the projector light engine for corner-to-corner sharpness.
• Compact Shipping Package — 7.6 lb packaged for transport between venues.

Typical Applications

This lens serves Christie H/HS Series projectors in shallow staging positions, trade show booths, rear-projection enclosures, museum exhibits, and small rooms where a conventional lens cannot achieve the required image size. It is a frequent companion lens in rental inventories. Compare throw options in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

How close can the projector sit to the screen?
With the 0.84-1.02:1 throw ratio, the lens sits roughly 0.84 to 1.02 times the image width away — for a 10-foot-wide image, about 8.4 to 10.2 feet.

Which projectors does this lens fit?
It is listed for the Christie D12HD-H and D12WU-H, with vendor data also referencing D13 and HS Series D12, D13, D16, and D20 models. Confirm against your projector model before ordering.

Why choose a short zoom over a fixed short-throw lens?
The zoom range allows image size adjustment without relocating the projector, which simplifies commissioning and future screen changes.

Is this genuine Christie glass?
Yes, it is a factory Christie lens under part number 140-114107.
