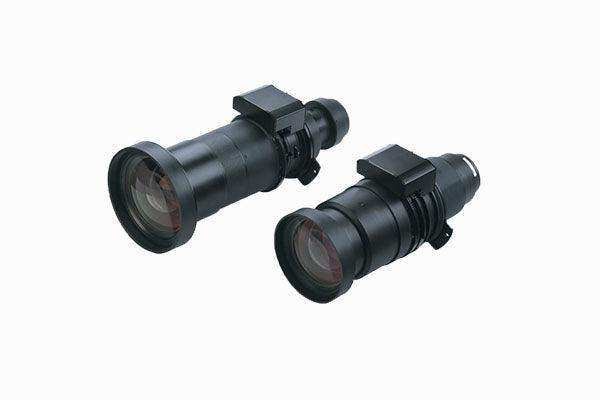

Christie 0.80-1.16:1 HD ILS Lens - 118-130105-03

Product Overview

The Christie 118-130105-03 is a short-throw ILS1 zoom projection lens with a 0.80-1.16:1 HD throw ratio and approximately 1.45x zoom range. Power zoom and power focus enable remote adjustment, and motor-based encoding ensures accurate, repeatable lens positioning. It is designed for installations where the projector must sit close to the screen.

Product Description

This short-throw zoom lens solves the common installation problem of limited projection distance. With a 0.80-1.16:1 throw ratio at HD, the projector can be positioned at roughly 0.80 to 1.16 times the image width from the screen, enabling large images in shallow rooms, on stages with restricted rigging depth, and in rear-projection cabinets. The roughly 1.45x zoom range gives latitude in final mounting position, and power zoom and power focus permit fine adjustment from the remote after the projector is rigged. Motor-based encoding maintains accurate lens positions over time, supporting repeatable recall on compatible Christie Intelligent Lens System projectors. The lens fits select Christie projectors; confirm compatibility with your chassis part number before ordering and our team will verify fit.

Key Features

• 0.80-1.16:1 HD Throw Ratio — large images from short projection distances.
• Approx. 1.45x Zoom Range — flexibility in projector placement.
• Power Zoom and Focus — remote adjustment after rigging.
• Motor-Based Encoding — accurate, repeatable lens position recall.
• ILS1 Format — Intelligent Lens System recognition on compatible Christie projectors.

Typical Applications

• Stages and live events with shallow rigging depth
• Lecture halls and auditoriums with close projector positions
• Rear-projection configurations in confined spaces
• Houses of worship with limited throw distance

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

How close can the projector be to the screen?
At HD resolution the throw ratio is 0.80-1.16:1, so the projector can sit at roughly 0.80 to 1.16 times the image width from the screen.

Which projectors does it fit?
It fits select Christie ILS-equipped projectors. Contact us with your projector part number and we will confirm compatibility.

Why does motor-based encoding matter?
It prevents the motor drift common with DC-encoded designs, so saved zoom and focus positions are recalled accurately over time.

Do you carry longer-throw options?
Yes. The Christie Digital collection covers the full ILS throw-ratio range.
