Chief WALL ENC16X16MTI-DPRE INST - PAC526

Product Overview

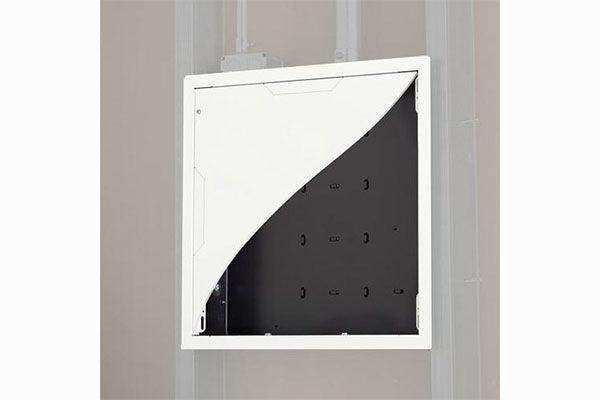

The Chief PAC526 is a 16x16 in-wall AV enclosure that recesses cables, power, and accessories behind a flat panel display. It is built for commercial AV installations that need concealed components and an optional secured cover. The enclosure organizes excess cabling and provides space for surge protectors or power conditioners. It is UL 2416 listed for installing AV, IT, and communication technology equipment, making it well suited to digital signage and conference room displays.

Product Description

The PAC526 simplifies flat panel installation by providing an organized, recessed space for routing excess cabling and for attaching surge protectors or power conditioners. Its larger 16x16 footprint stores a wide variety of AV components behind the display. A multiple-depth break-away edge makes it compatible with standard 3.5-inch and 2.5-inch studs, and it supports both pre-construction and post-construction installation. Knockouts are provided for single-gang outlets and 1-1/4-inch, 1-inch, and 1/2-inch conduit, and integrated zip-tie anchor points keep cabling dressed. The enclosure installs in landscape or portrait orientation and is compatible with Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts. The cover includes an optional tamper-proof security feature, and paintable flange and cover options let it blend into any environment in black or white. Browse related enclosures in the Chief collection at Creation Networks.

Key Features

• Recessed Cable and Power Management — Provides an organized in-wall space for excess cable and for mounting surge protectors or power conditioners.
• 16x16 Capacity — Larger footprint stores a wide variety of AV components behind the display.
• Multiple-Depth Break-Away Edge — Compatible with standard 3.5-inch and 2.5-inch studs.
• Pre and Post Construction Install — Supports both construction phases and mounts to drywall or studs.
• Conduit and Outlet Knockouts — Includes knockouts for single-gang outlets and 1-1/4-inch, 1-inch, and 1/2-inch conduit.
• Optional Tamper-Proof Security — The cover offers an optional tamper-proof security option for public spaces.
• Landscape or Portrait — Installs in either orientation to fit the display layout.
• UL 2416 Listed — Listed for installation of AV, IT, and communication technology equipment.
• Paintable, Two-Color Options — Paintable flange and cover in black and white blend into any environment.
