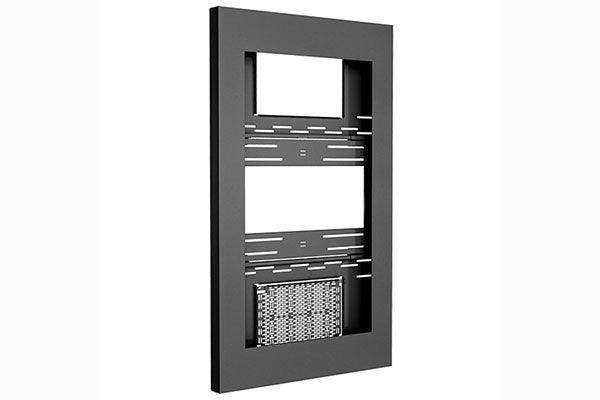

Chief Wall Display Enclosure Portrait 50" B - LW50UBP

Product Overview

The Chief LW50UBP is an Impact On-Wall Kiosk display enclosure for 50-inch portrait displays, finished in black. It protects a flat panel in public-facing digital signage while maintaining a clean, low-profile look that complements commercial interiors. A depth-adjustable exterior frame accommodates a range of displays, and reversible hinges plus an open-and-stay design give technicians full service access. The black finish suits retail, hospitality, and corporate environments where the enclosure should recede visually.

Product Description

The Impact On-Wall Kiosk brings flexibility to the digital signage enclosure market while maintaining a sleek aesthetic that complements a variety of environments. A depth-adjustable exterior frame allows a variety of displays to be used, and a wall protrusion of 4 inches (101 mm) or less can be achieved with flat panels less than 2.75 inches (70 mm) deep. An integrated wall reveal compensates for uneven walls to keep the frame plumb while providing passive cooling for the display inside. Reversible hinges help avoid installation and service obstructions, and the exclusive design keeps the display mounted to the frame when the enclosure is opened, providing service and maintenance access without removing the screen. The enclosure is configured for portrait orientation and accepts optional LL-VP2110 Lever Lock component storage plates for housing media players and accessories. Bezel size varies by display, so reference the technical drawings and specification sheet for the exact image diagonal. For the white finish and other sizes, see the matching LW50UWP and the full Chief collection.

Key Features

• Depth-adjustable exterior frame — Supports a wide range of displays in a single enclosure.
• Low-profile installation — A wall protrusion of 4" (101 mm) or less is achievable with flat panels under 2.75" (70 mm) deep.
• Integrated wall reveal — Compensates for uneven walls to keep the frame plumb and provides passive cooling.
• Reversible hinges — Help avoid installation and service obstructions on either side.
• Service-friendly design — Keeps the display mounted to the frame when opened for maintenance access.
• Portrait orientation — Configured for 50-inch portrait digital signage.
• Optional component storage — Accepts LL-VP2110 Lever Lock storage plates for media players and accessories.

Typical Applications

• Retail and hospitality digital signage in commercial meeting space and lobbies
• Corporate wayfinding and directory displays
• House of worship and government space information kiosks
• Multi-purpose room and training room portrait signage

Technical Specifications

Frequently Asked Questions

What display does the LW50UBP fit?
It is built for 50-inch portrait displays. Because bezel size varies by panel, reference the technical drawings and specification sheet for your exact image diagonal.

How far does it stick out from the wall?
A wall protrusion of 4 inches (101 mm) or less can be achieved when using flat panels less than 2.75 inches (70 mm) deep.

How is the display serviced?
Reversible hinges avoid obstructions, and the exclusive design keeps the display mounted to the frame when opened, so technicians can access components without removing the screen.

Can I store a media player in the enclosure?
Yes. Optional LL-VP2110 Lever Lock component storage plates are available for media players and accessories.

Does it manage heat?
An integrated wall reveal keeps the frame plumb on uneven walls and provides passive cooling for the display.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and coverage details.
