Chief Wall Display Enclosure Portrait 42" B - LW42UBP

Product Overview

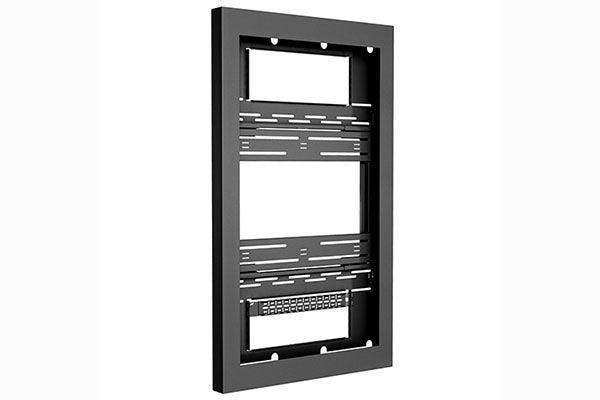

The Chief LW42UBP Impact On-Wall Kiosk is a 42" portrait display enclosure built for digital signage in retail, lobby, and commercial meeting spaces. Its depth-adjustable frame accepts a wide range of flat panels while keeping a low-profile, finished appearance in black. Reversible hinges and a display-retaining design give installers and service technicians full access without dismounting the screen.

Product Description

The Impact On-Wall Kiosk gives integrators a flexible digital signage enclosure that complements a range of commercial interiors. The depth-adjustable exterior frame supports a wide range of displays, and a wall protrusion of 4" (101mm) or less can be achieved using flat panels less than 2.75" (70mm) in depth. An integrated wall reveal compensates for uneven walls to keep the frame plumb while providing passive cooling for the mounted display. The exclusive design keeps the display mounted to the frame when the enclosure is opened, delivering service and maintenance access without removing the screen. Reversible hinges let installers route the opening away from obstructions during installation and service. The engagement latch can be secured with tamperproof hardware to protect public-facing installations. Middle Atlantic's Lever Lock small-device mounting system is integrated to mount media players and compact power supplies, and a second Lever Lock can be added. The large open center backing enables use with in-wall boxes and is compatible with PAC525 and PAC526 series in-wall boxes, including power options. Bezel size varies per display, so reference the Chief technical drawings and specification sheet for exact image diagonals.

Key Features

• Depth-adjustable frame — The exterior frame adjusts to support a wide range of flat-panel displays in a single enclosure.
• Low wall protrusion — A protrusion of 4" (101mm) or less is achievable with flat panels under 2.75" (70mm) deep.
• Integrated wall reveal — Compensates for uneven walls to keep the frame plumb and provides passive cooling for the display.
• Service-friendly design — The display stays mounted to the frame when opened for maintenance access without dismounting the screen.
• Reversible hinges — Hinges reverse to avoid installation and service obstructions.
• Tamperproof security — The engagement latch can be secured with tamperproof hardware for public-facing installs.
• Integrated Lever Lock — A Middle Atlantic Lever Lock system holds media players and power supplies, with room for a second Lever Lock.
• In-wall box compatible — The open center backing is compatible with PAC525 and PAC526 series in-wall boxes, including power options.

Typical Applications

• Commercial meeting space and lobby digital signage
• Conference room and boardroom messaging displays
• Government space and multi-purpose room wayfinding
• House of worship and auditorium announcement screens

Technical Specifications

Frequently Asked Questions

What displays fit this enclosure?
The depth-adjustable frame supports a wide range of 42" portrait flat panels. Bezel size varies by display, so reference the Chief technical drawings and specification sheet for exact image diagonals.

How far does it stick out from the wall?
A wall protrusion of 4" (101mm) or less is achievable when using flat panels less than 2.75" (70mm) in depth.

How are media players and power supplies mounted?
An integrated Middle Atlantic Lever Lock system mounts small devices such as digital signage media players and compact power supplies, and a second Lever Lock can be added.

Can it be used with an in-wall box?
Yes. The large open center backing is compatible with PAC525 and PAC526 series in-wall boxes, including power options.

How is it serviced after installation?
The exclusive design keeps the display mounted to the frame when opened, and reversible hinges avoid obstructions, giving technicians full access without removing the screen.

What warranty applies?
This Chief enclosure is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
