Chief VCT018E INCL CUSTOM HC018E BLK - VCT018E

Product Overview

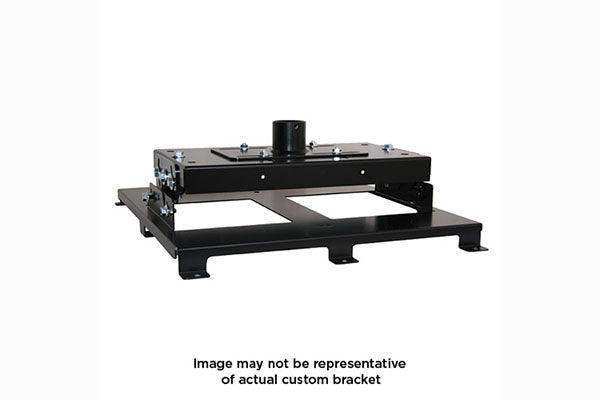

The Chief VCT018E is a heavy-duty ceiling projector mount engineered for large LCD and CRT projectors in permanent commercial installations. It ships with the custom HC018E interface bracket for a direct, secure fit to the target projector. Independent roll, pitch, and yaw adjustment let an integrator dial in precise image registration during commissioning. The mount is well suited to auditoriums, houses of worship, and large conference rooms where a projector hangs from a structural ceiling.

Product Description

The Chief VCT018E projector mount pairs a rugged ceiling mounting structure with the HC018E custom interface, giving installers a complete heavy projector ceiling mount in a single SKU. The mount provides the strong support required for mounting heavy LCD and CRT projectors that lighter universal mounts cannot safely carry. Independent roll, pitch, and yaw adjustments allow quick and precise projector registration so the projected image aligns correctly to the screen. Three installation options give flexibility for different ceiling structures: flush mounting directly to the ceiling, suspension on 0.5" threaded rods, or attachment to a 1.5" NPT extension column for lower drops. A quick connect and disconnect feature provides convenient lamp and filter access on most projectors without fully dismounting the unit. Cables route through the top of the mount without additional accessories, keeping the installation clean. For a flush ceiling mount configuration, the LPK1 accessory is available. The black finish blends into most ceiling environments used in commercial AV spaces.

Key Features

• Heavy projector support — Provides the strong, stable support needed to mount heavy LCD and CRT projectors in permanent installations.
• Custom HC018E interface included — Ships with the HC018E custom interface bracket for a direct, secure fit in a single SKU.
• Independent roll, pitch and yaw — Three-axis adjustment enables quick and precise projector registration to the screen.
• Multiple installation options — Flush mount to the ceiling, suspend on 0.5" threaded rods, or attach to a 1.5" NPT extension column.
• Quick connect and disconnect — Allows convenient lamp and filter access on most projectors during routine service.
• Integrated cable management — Cables route through the top of the mount without additional accessories.
• Flush mount ready — Compatible with the LPK1 accessory when a flush ceiling installation is required.

Typical Applications

• Auditorium projection systems
• House of worship sanctuaries
• Conference room and boardroom projectors
• Training room and multi-purpose room installations
• Government and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

Which projectors is the VCT018E compatible with?
The VCT018E ships with the custom HC018E interface, which is matched to a specific projector model. It is designed for heavy LCD and CRT projectors that require strong ceiling support.

How does the VCT018E install?
It can be flush mounted directly to the ceiling, suspended on 0.5" threaded rods, or attached to a 1.5" NPT extension column for lower drops, depending on your ceiling structure and required throw distance.

Can I service the projector after installation?
Yes. The quick connect and disconnect feature provides convenient access to the lamp and filter on most projectors without removing the entire mount.

How are cables managed?
Signal and power cables route through the top of the mount without additional accessories for a clean installation.

Is the VCT018E covered by a warranty?
Yes. It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
