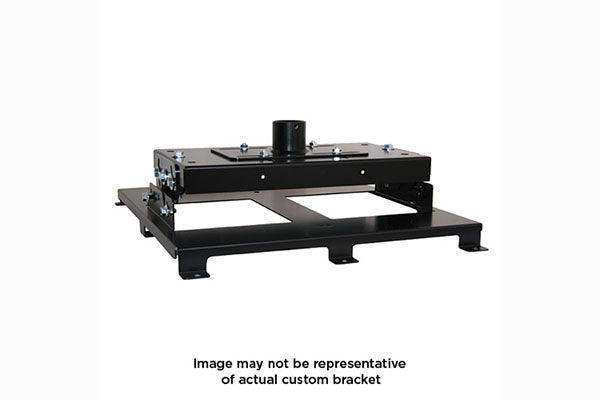

Chief VCM75P INCL CUSTOM HB75P BLK - VCM75P

Product Overview

The Chief VCM75P projector ceiling mount is a heavy-duty ceiling mount built to support large LCD and CRT projectors in fixed installations. It ships with the model-specific custom HB75P interface bracket, so the projector fits the mount without a separate adapter purchase. Independent roll, pitch, and yaw adjustments let an integrator dial in precise image registration after the mount is on the ceiling. It suits conference room, training room, and auditorium projector installs where a secure, serviceable mount is required.

Product Description

The Chief VCM75P pairs the proven VCM column mount with a custom HB75P interface bracket matched to a specific heavy projector chassis. The steel mount carries the weight of large projectors while the three-axis adjustment system handles roll, pitch, and yaw so the projected image lines up cleanly with the screen. Installers can flush-mount the assembly directly to the ceiling, suspend it on 0.5-inch threaded rods, or drop it from a 1.5-inch NPT extension column for lower ceilings or higher drops. A quick connect and disconnect design lets the projector be lifted off the mount for lamp and filter service, then returned to its registered position. Cable management routes through the top of the mount without add-on accessories, keeping the install clean in a commercial meeting space or house of worship. The black finish and steel construction give the mount a low-profile, commercial-grade appearance suited to permanent installs. For a model-independent option, compare the Chief VCMU universal projector mount, or browse the full Chief collection for additional projector and display mounts.

Key Features

• Custom HB75P interface included — The kit ships with the model-specific HB75P bracket so the projector mounts without sourcing a separate interface.
• Three-axis registration — Independent roll, pitch, and yaw adjustments allow quick and precise projector image alignment after installation.
• Multiple mounting options — Flush-mount to the ceiling, hang from 0.5-inch threaded rods, or use a 1.5-inch NPT extension column.
• Quick connect and disconnect — The projector lifts off for convenient lamp and filter access, then returns to its set position.
• Integrated cable management — Cables route through the top of the mount without additional accessories.
• Heavy-duty steel construction — The steel mount provides secure support for large, heavy projectors in permanent installations.
• Black commercial-grade finish — A low-profile black finish blends into ceilings in professional AV environments.

Typical Applications

• Conference room projector installations
• Training room and multi-purpose room setups
• House of worship projection
• Auditorium and commercial meeting space displays

Technical Specifications

Kit Contents

Frequently Asked Questions

Q: What projector does the VCM75P fit?
The kit includes the custom HB75P interface bracket, which is matched to a specific heavy projector model. Confirm your projector against the HB75P compatibility listing before ordering, or contact Creation Networks for help matching your projector.

Q: How is the mount installed?
It can be flush-mounted to the ceiling, suspended on 0.5-inch threaded rods, or dropped from a 1.5-inch NPT extension column. Installation involves attaching legs to the projector, fastening the legs to the interface bracket, and hooking the bracket onto the VCM mount.

Q: Can the projector be removed for service?
Yes. The quick connect and disconnect design lets the projector lift off for lamp and filter access, then return to its registered position.

Q: Does it support image alignment after install?
Yes. Independent roll, pitch, and yaw adjustments allow precise registration once the mount is in place.

Q: Will it integrate with an extension column for high ceilings?
Yes. The mount accepts a 1.5-inch NPT extension column, a standard Chief interface used across their projector mount accessories.

Q: What warranty applies?
The mount is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
