Chief VCM29S INCL CUSTOM HB29S BLK - VCM29S

Product Overview

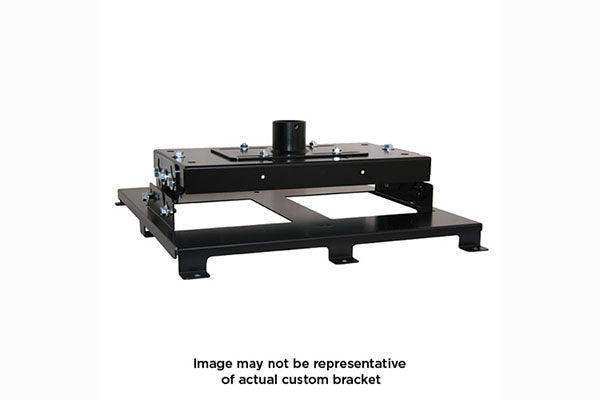

The Chief VCM29S is a heavy-duty universal ceiling projector mount built to securely suspend large, heavy LCD and CRT projectors in fixed commercial AV installations. The kit ships with a custom HB29S interface bracket, giving integrators a hardware-matched connection between the projector and the mount. Independent roll, pitch, and yaw adjustments allow precise image registration after the projector is in place. Multiple ceiling-attachment methods make the VCM29S a dependable choice for conference rooms, auditoriums, and other commercial-grade projection spaces.

Product Description

The Chief VCM29S heavy-duty projector mount pairs Chief's proven VCM mounting platform with a custom HB29S projector interface so commercial AV installers can hang a heavy projector with confidence. The mount provides the strong, stable support needed for larger projector chassis where lighter universal mounts fall short. Once the projector is lifted into place, the integrator can fine-tune the image using independent roll, pitch, and yaw adjustments, which simplifies alignment in rooms with high or angled ceilings. Three installation methods are supported: flush mounting directly to the ceiling, suspension on 0.5" threaded rods, or extension on a 1.5" NPT extension column for lower drops in tall rooms. Cable management routes through the top of the mount, so signal and power runs stay concealed without additional accessories. Quick connect/disconnect hardware gives technicians convenient access to the projector's lamp and filter during routine service. For a flush-mount configuration, the VCM29S works with the Chief LPK1 accessory. If you are comparing options, the universal Chief VCMUW heavy-duty projector mount and the Chief VCMU mount kit share the same platform, and the full Chief mounting collection covers additional projector and display hardware.

Key Features

• Heavy-Duty Support — Provides the strong, stable support required to mount heavy LCD and CRT projectors in permanent commercial installations.
• Independent Roll, Pitch & Yaw — Separate axis adjustments let integrators register the projected image quickly and precisely after installation.
• Multiple Installation Options — Flush mount to the ceiling, suspend from 0.5" threaded rods, or extend on a 1.5" NPT extension column to suit the room.
• Integrated Cable Management — Cables route through the top of the mount without additional accessories for a clean, professional finish.
• Quick Projector Access — Quick connect/disconnect hardware allows convenient lamp and filter access on most projectors during service.
• Custom HB29S Interface Included — A model-specific HB29S interface bracket ships in the kit for a direct, hardware-matched projector connection.
• Flush-Mount Ready — Compatible with the Chief LPK1 accessory when a flush ceiling installation is required.

Typical Applications

• Conference room
• Boardroom
• Auditorium
• Training room
• House of worship
• Commercial meeting space

Technical Specifications

Kit Contents:

Frequently Asked Questions

Which projector does the VCM29S fit?
The VCM29S kit includes a custom HB29S interface bracket sized for a specific projector model. Confirm your projector's interface requirements before ordering, or contact Creation Networks to verify compatibility.

How does the mount attach to the ceiling?
You can flush mount it directly to the ceiling, suspend it from 0.5" threaded rods, or extend it on a 1.5" NPT extension column, depending on ceiling height and drop requirements.

Can I align the projector after installation?
Yes. Independent roll, pitch, and yaw adjustments let an installer register the image precisely once the projector is mounted.

Does it support cable management?
Cables route through the top of the mount without additional accessories, keeping power and signal runs concealed.

Is a flush ceiling installation possible?
Yes. Pair the VCM29S with the Chief LPK1 accessory for a flush-mount configuration.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support details.
