Chief HEAVY DUTY PROJECTOR MOUNT - VCMUW

Product Overview

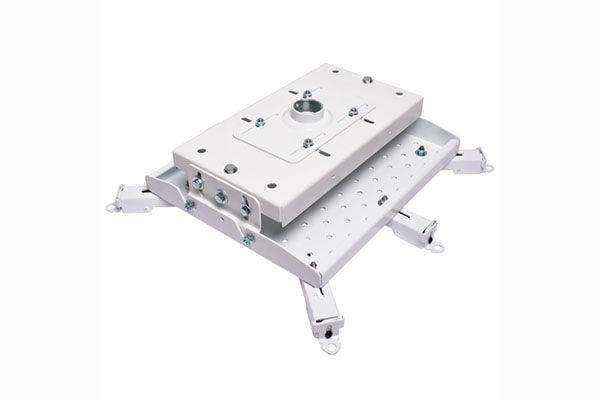

The Chief VCMUW is a heavy duty projector ceiling mount built to support large projectors weighing up to 250 lbs. Independent roll, pitch, and yaw adjustments let installers achieve precise image registration quickly. The mount includes the universal HBUW bracket, which is compatible with most heavy duty projectors. It is suited to auditoriums, houses of worship, and large commercial venues running high-output projection.

Product Description

The VCMUW provides the strong support needed for mounting heavy projectors in demanding commercial environments. Its heavy-duty steel construction carries projector systems up to 250 lbs, and micro adjustments allow installers to quickly achieve registration. Independent roll, pitch, and yaw adjustments make precise image alignment fast and repeatable. The mount offers multiple installation options: flush mounting to the ceiling, suspension on 0.5-inch threaded rods, or attachment to a 1.5-inch NPT extension column for greater drop. A quick connect and disconnect feature provides convenient lamp and filter access on most projectors, reducing maintenance downtime. Cable management routes through the top of the mount without additional accessories. Installation follows an easy three-step process: assemble the legs to the projector, fasten the legs to the universal bracket, and hook the bracket onto the VCM mount. The included universal HBUW bracket is compatible with most heavy duty projectors. The white finish suits lighter ceiling environments. For short-throw wall projection, compare the WM220AUS kit, or browse more options in the Chief collection.

Key Features

• 250 lb capacity — Heavy-duty steel construction supports projector systems weighing up to 250 lbs.
• Roll, pitch, and yaw — Independent adjustments enable quick, precise projector registration.
• Multiple installation options — Flush mount to ceiling, 0.5-inch threaded rods, or a 1.5-inch NPT extension column.
• Quick connect/disconnect — Provides convenient lamp and filter access on most projectors.
• Integrated cable management — Routes cables through the top of the mount without additional accessories.
• Universal HBUW bracket — Included bracket is compatible with most heavy duty projectors.
• Three-step installation — Assemble legs to the projector, fasten to the bracket, and hook onto the VCM mount.

Typical Applications

• Auditorium
• House of worship
• Commercial meeting space
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

How much weight does the VCMUW support?
Its heavy-duty steel construction supports projector systems weighing up to 250 lbs.

What projectors is it compatible with?
The included universal HBUW bracket is compatible with most heavy duty projectors. Confirm your projector against the HBUW specifications before installation.

What installation options are available?
It can flush mount to the ceiling, suspend on 0.5-inch threaded rods, or attach to a 1.5-inch NPT extension column.

How is the image aligned?
Independent roll, pitch, and yaw adjustments allow quick, precise projector registration.

Is lamp and filter maintenance easy?
Yes. A quick connect/disconnect feature provides convenient lamp and filter access on most projectors.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for warranty terms and support.
