Chief Truss Pitch-Adj Universal - TPPU

Product Overview

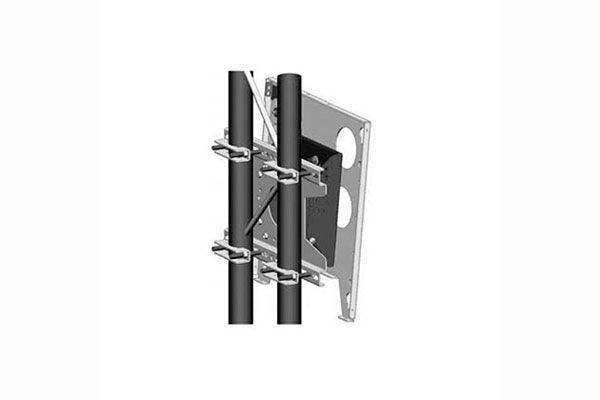

The Chief TPPU is a truss pitch-adjustable universal display mount designed for attaching large flat panel displays to truss and pole structures in exhibit halls, retail environments, and digital signage installations. It supports portrait and landscape orientations and includes the universal PSBUB interface for broad display compatibility. Clamps for attaching the TPPU to specific truss or pole dimensions are not included and must be ordered separately from the TPK clamp accessory line. The TPPU is TAA compliant for government and public-sector AV deployments.

Product Description

The Chief TPPU truss pitch-adjustable universal mount provides three flat panel mounting options in one product family: the TPS truss/pole fixed mount, TPM pole tilt-adjustable mount, and TPP truss pitch-adjustable mount. The TPPU specifically provides three pitch adjustment options for displays mounted on truss systems, enabling integrators to set the correct viewing angle for audiences below the truss. The universal PSBUB interface is included and provides compatibility with a wide range of commercial-grade flat panel displays. Displays can be mounted in portrait or landscape orientation; the optional PAC400 or MAC400 accessory allows rotation between orientations without removing the screen. The mount spans most truss systems up to 14 inches in outer diameter and accommodates a wide variety of pole dimensions through compatible TPK clamp accessories (sold separately). An integrated security feature allows the display to be locked to the mount using a standard padlock. Finishing cover accessories are available separately to improve aesthetics and conceal hardware for added security. The TPPU is TAA compliant. View the full Chief truss and pole mount selection at creationnetworks.net/collections/chief.

Key Features

• Three Pitch Adjustment Options — The TPP truss pitch-adjustable design offers three selectable pitch positions for optimal display angle toward the audience.
• Universal PSBUB Interface Included — Provides broad compatibility with a wide range of commercial-grade large flat panel displays.
• Vertical and Horizontal Truss Installation — Mounts on both vertical and horizontal truss members for flexible deployment in exhibit and event environments.
• Portrait and Landscape Orientation — Supports both display orientations; PAC400 or MAC400 accessories (sold separately) enable in-place rotation without removing the screen.
• Spans Truss up to 14" OD — Compatible with most commercial truss systems up to 14 inches in outer diameter.
• Q-Latch Mounting System — Exclusive Q-Latch secures the flat panel display to the mount with a lockable latch for secure display attachment.
• Integrated Padlock Security — Display can be locked to the mount using a standard padlock for added security in public-facing environments.
• TAA Compliant — Meets Trade Agreements Act requirements for government and public-sector AV procurement.
• Clamps Sold Separately — TPK clamp accessory kits must be ordered separately; see the TPK chart for the correct clamp for your truss or pole dimension.

Typical Applications

• Trade show and exhibit hall flat panel display installations on truss
• Retail digital signage deployments on pole and truss structures
• Sports venue and arena scoreboard-area display mounts
• House of worship and event space truss-mounted video panels
• Government and public-sector digital signage requiring TAA-compliant hardware

Technical Specifications

Frequently Asked Questions

Do truss clamps come included with the TPPU?
No. Clamps for attaching the TPPU to truss or pole systems must be ordered separately from the TPK clamp accessory line. Consult the TPK chart to identify the correct clamp for your truss or pole dimensions.

Can the display be mounted in portrait orientation?
Yes. The TPPU supports both portrait and landscape orientations. The optional PAC400 or MAC400 accessory allows rotation between orientations without removing the screen from the mount.

What does the PSBUB interface provide?
The PSBUB universal interface is included with the TPPU and provides compatibility with a wide range of large commercial flat panel displays by accommodating multiple VESA patterns.

Is the TPPU TAA compliant?
Yes, the TPPU is TAA (Trade Agreements Act) compliant, making it eligible for government and public-sector AV procurement.

What warranty applies to this product?
The TPPU is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for specific warranty terms.
