Chief TILED KIT dvLED Wall Mount Kit for Sony Full HD 137” Crystal LED C and B-Series - TILKIT5X5SO1

Product Overview

The Chief TILKIT5X5SO1 is a Chief TiLED dvLED wall mount kit for Sony Crystal LED, engineered to support a Full HD 137" Sony Crystal LED C and B-Series direct view LED video wall in a 5-high by 5-wide array. This dvLED wall mount kit gives commercial AV integrators full X, Y, and Z-axis micro-adjustment for tile-to-tile alignment across the canvas. Modular left, middle, and right structural components let you build the exact Sony Crystal LED configuration a project requires. The kit is in stock and ships with no custom lead times or project registration.

Product Description

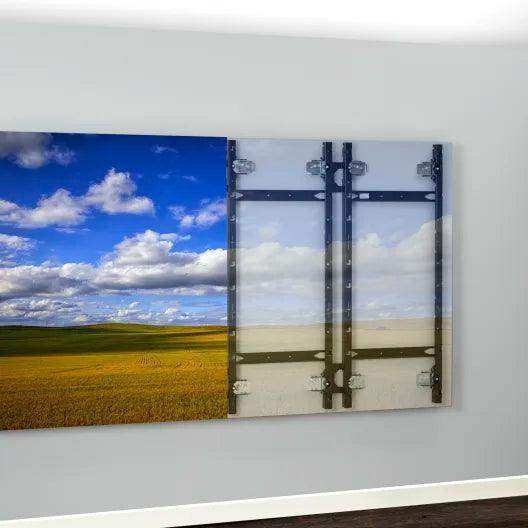

The TILKIT5X5SO1 direct view LED mounting system is purpose-built for the Sony Crystal LED C and B-Series, supporting the ZRD-C12A, ZRD-C15A, ZRD-B12A, and ZRD-B15A modules. Its modular architecture scales across configurations, with this kit sized for a Full HD 137" 5x5 canvas suited to boardrooms, briefing centers, and lobby displays. Essential X, Y, and Z-axis adjustments allow precise positioning and alignment for a uniform, seam-free image. An equipment depth range of 4.14" to 4.84" accommodates the Crystal LED cabinets while keeping the video wall tight to the mounting surface. Each module supports up to 25 lbs and provides 0.75" of plumb adjustment to true the array against an uneven wall. Height-adjustable, lateral-shift, and micro-adjustable controls give installers the tolerance needed for dvLED video wall installation without shimming. Because the system is fixed to the wall, it suits permanent commercial deployments where rigidity and long-term alignment matter. For complex projects, Chief TiLED Solution Services and the Legrand AV installation team provide design and on-site support. For a larger 4K canvas, compare the Chief TILKIT8X8SO1 220" 8x8 kit, or browse the full Chief mounting collection for additional dvLED and display mounts.

Key Features

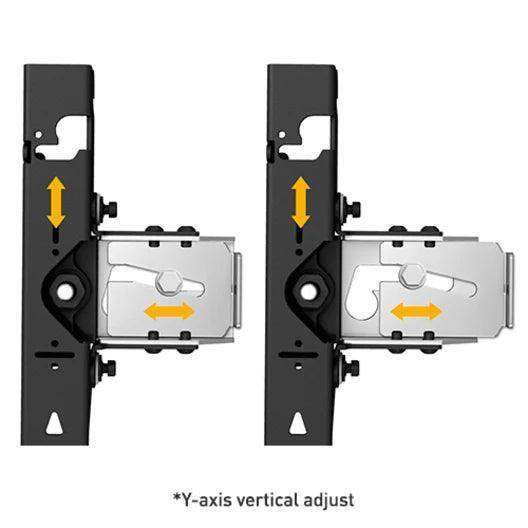

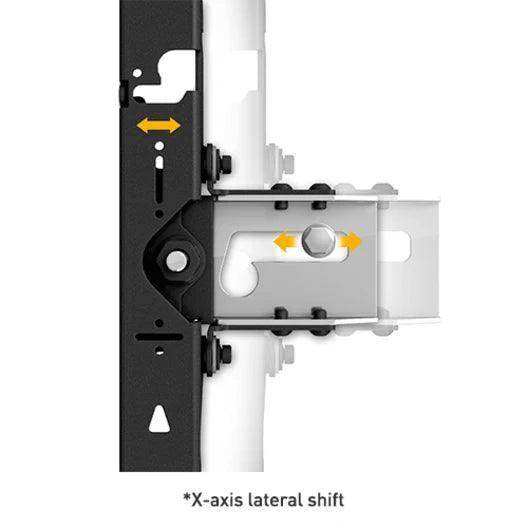

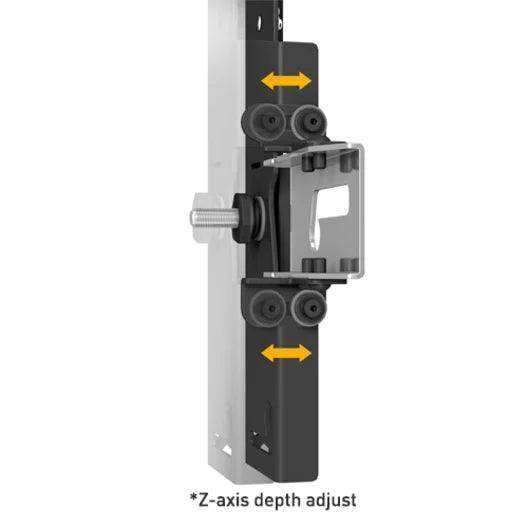

• X, Y, and Z-Axis Micro-Adjustment — Independent multi-axis adjustment lets installers achieve flush, seam-free tile alignment across the 5x5 canvas.
• Modular Component System — Left, middle, and right structural members in 4-, 5-, and 8-high lengths scale to nearly any Sony Crystal LED configuration.
• Sony Crystal LED Compatibility — Engineered specifically for the C and B-Series, supporting the ZRD-C12A, ZRD-C15A, ZRD-B12A, and ZRD-B15A modules.
• Low-Profile Depth Range — A 4.14"–4.84" equipment depth range keeps the dvLED video wall close to the wall for a finished, built-in appearance.
• Plumb Adjustment — 0.75" of plumb correction trues the array against walls that are not perfectly flat.
• In-Stock, No Project Registration — Ships without custom lead times or registration, simplifying specification and procurement.
• Solution Services Available — Optional Chief TiLED Solution Services from the Legrand AV team provide design and installation support.

Typical Applications

• Boardrooms and executive briefing centers
• Conference rooms and presentation venues
• Broadcast studios and production sets
• All-hands and town-hall rooms
• House of worship displays
• Government and command-center spaces
• Corporate lobbies and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

Which displays is the TILKIT5X5SO1 compatible with?
It is engineered for the Sony Crystal LED C and B-Series, including the ZRD-C12A, ZRD-C15A, ZRD-B12A, and ZRD-B15A modules, configured in a 5x5 array.

How does the mount support tile alignment?
The system provides X, Y, and Z-axis micro-adjustment plus 0.75" of plumb correction, allowing installers to dial in seam-free alignment across the canvas.

Can this kit be reconfigured for a different array size?
Yes. The modular left, middle, and right components are available in 4-, 5-, and 8-high lengths, so the platform can be specified for other Sony Crystal LED layouts.

What wall preparation is required for installation?
Because the system mounts to the wall and supports 25 lbs per module, it should be installed to a structure rated for the full video wall load. Chief TiLED Solution Services can assist with site assessment.

Does this require project registration or a custom lead time?
No. The kit is stocked and ships without project registration or custom lead times.

Is design and installation support available?
Yes. Chief TiLED Solution Services and the Legrand AV installation team offer scalable design and on-site support for dvLED projects.

What warranty applies and how do I get support?
The kit is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and AV system integration support.
