Product Overview
The Chief TILKIT4X4SO1 is a dvLED wall mount kit engineered for the Sony Full HD 110" Crystal LED C and B-Series direct-view LED video wall. This modular dvLED video wall mount delivers X, Y, and Z-axis adjustment for precise tile alignment across a 4x4 array. Built for commercial AV integrators, the Sony Crystal LED mount ships in stock with no custom lead times or project registration. It is a display-specific direct-view LED mounting solution for permanent commercial video wall installations.
Product Description

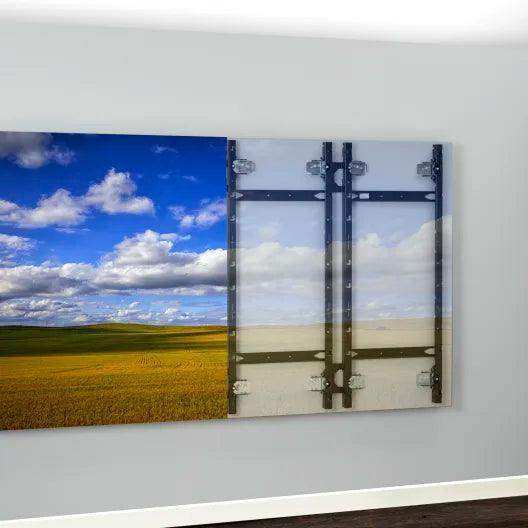

The TILKIT4X4SO1 modular system contains left, middle, and right structural components engineered to support the Sony Crystal LED C and B-Series direct-view LED panels. Integrators can mix and match components to create a range of video wall configurations, while essential X, Y, and Z-axis adjustments allow precise positioning and alignment for a continuous LED surface. As a dvLED wall mount kit, it provides height adjustment, lateral shift, and micro-adjustment so each tile lands within tight tolerances. The mount carries a 25 lbs (11.3 kg) per-component weight capacity and accommodates an equipment depth range of 4.14" to 4.84" (105 mm to 123 mm), matching the Sony Crystal LED panel geometry. TiLED direct-view LED mounting solutions are in stock and ready to ship with no custom lead times or project registration required, which simplifies specification and ordering for commercial video wall projects. This Sony Crystal LED mount is compatible with the Sony ZRD-C12A, ZRD-C15A, ZRD-B12A, and ZRD-B15A panels. Chief also offers TiLED Solution Services for additional design and installation support on dvLED deployments. For other tiled dvLED kits and array sizes, browse the full Chief collection.
Key Features
- Sony Crystal LED Compatibility — Engineered for the Sony Crystal LED C and B-Series, including ZRD-C12A, ZRD-C15A, ZRD-B12A, and ZRD-B15A panels.
- Modular Structure — Left, middle, and right components mix and match to build a range of video wall configurations.

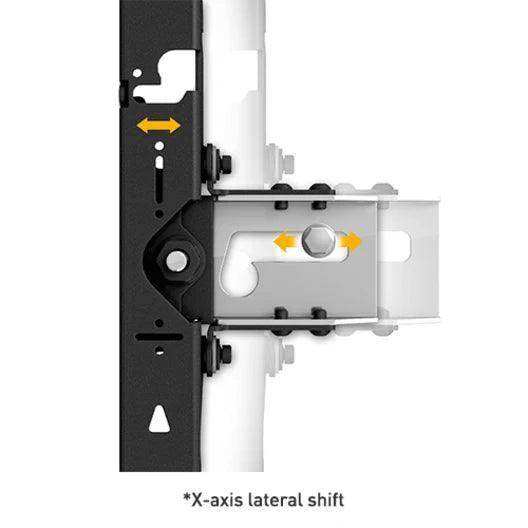

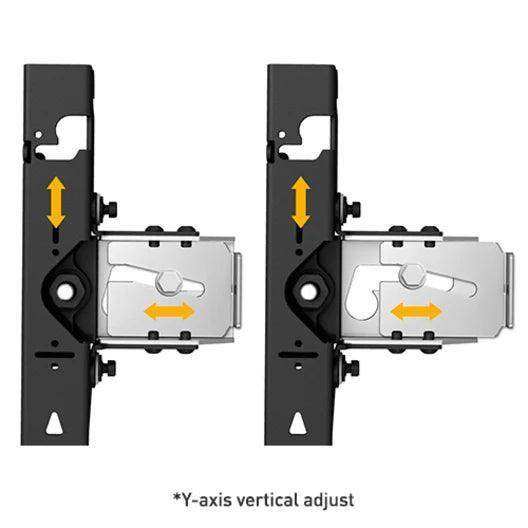

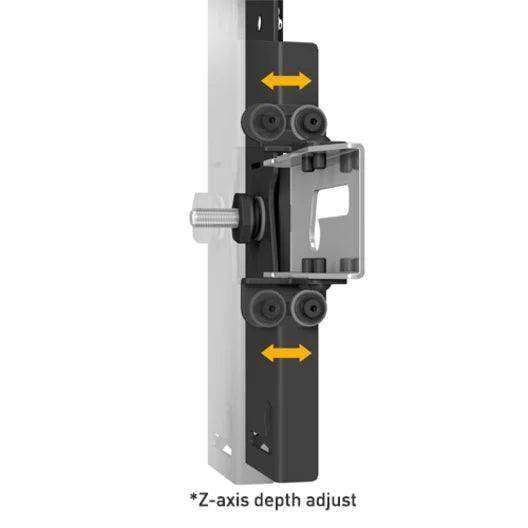

- Three-Axis Alignment — X, Y, and Z-axis adjustment enables precise tile positioning for a continuous LED surface.
- Multiple Adjustment Modes — Height adjustment, lateral shift, and micro-adjustment support accurate alignment.
- Matched Depth Range — An equipment depth range of 4.14" to 4.84" (105 mm to 123 mm) fits the Sony Crystal LED panels.
- In-Stock Availability — Ships with no custom lead times or project registration required.
Typical Applications
- Broadcast studio — Direct-view LED backdrops and set walls requiring precise tile alignment.
- Commercial meeting space — Premium dvLED video walls in corporate lobbies and reception areas.
- Auditorium — Large-format LED display surfaces for presentations and live events.
- Government space — Command and briefing environments using direct-view LED video walls.
Technical Specifications
| Kit Model | TILKIT4X4SO1 |
| Compatible Display | Sony Crystal LED C and B-Series (ZRD-C12A, ZRD-C15A, ZRD-B12A, ZRD-B15A) |
| Array | Full HD 110" (4x4) |
| Equipment Depth Range | 4.14" - 4.84" (105 mm - 123 mm) |
| Plumb Adjustment | 0.75" (19 mm) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Fixed, height adjustable, lateral shift, micro-adjustable |
| Application | Wall |
| Special Features | LED video wall, multi-display |
Frequently Asked Questions
Q: Which displays is the TILKIT4X4SO1 compatible with?
It is engineered for the Sony Crystal LED C and B-Series, specifically the ZRD-C12A, ZRD-C15A, ZRD-B12A, and ZRD-B15A direct-view LED panels.
Q: How are the LED tiles aligned during installation?
The kit provides X, Y, and Z-axis adjustment along with height adjustment, lateral shift, and micro-adjustment, allowing precise tile positioning for a continuous LED surface.
Q: What is the weight capacity and depth range?
Each component supports 25 lbs (11.3 kg) and accommodates an equipment depth range of 4.14" to 4.84" (105 mm to 123 mm), matching the Sony Crystal LED panels.
Q: Is there a custom lead time or project registration?
No. TiLED direct-view LED mounting solutions are in stock and ship with no custom lead times or project registration required.
Q: Is design and installation support available?
Yes. Chief offers TiLED Solution Services for personalized support on designing and implementing dvLED video wall projects.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
