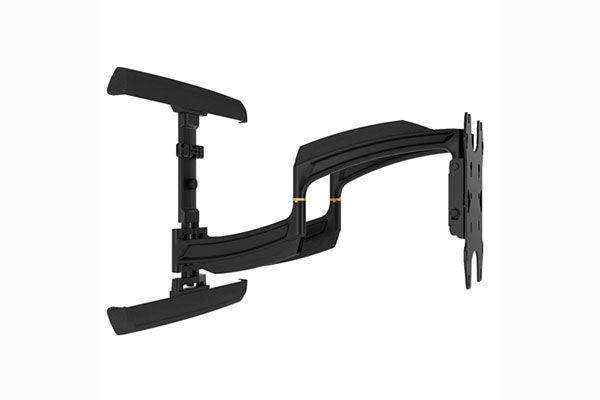

Chief Thin Swing Arm (Large) - TS525TU
Product Overview
The Chief TS525TU is a lightweight, low-profile full-motion wall display mount for TVs from 42" to 75". It is designed for fast, single-person installation by mounting the top rail and sliding on the assembly. Centris low-profile tilt and Centerless lateral shift make final alignment quick in conference rooms, commercial meeting spaces, and digital signage installs. Paired with a TA500 in-wall back box, it supports an ultra-low-profile, ADA-friendly installation.
Product Description
The Chief TS525TU thin swing arm is a full-motion wall mount engineered for large flat panels between 42" and 75".
Its sleek design collapses to just 2.0" (50 mm) without the interface, or 2.1" (53 mm) with the interface, keeping the display close to the wall when not extended. When installed together with a TA500 in-wall back box, it facilitates ADA compliance with an ultra-low profile. The arm extends up to 25" (635 mm) to maximize viewing potential and direct the screen toward viewers. Centris low-profile tilt provides up to 15 degrees of effortless fingertip tilt to achieve optimal viewing angles. Centerless lateral shift allows up to 16" (406 mm) of post-installation adjustment for limitless centering capability, and a total of 1" (25 mm) of post-installation height adjustment allows for perfect screen placement and alignment. Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables and connect to the wall for a clean installation. Installation is fast and can be completed by one person by mounting the top rail and sliding on the assembly.
Key Features
- Full-motion for 42-75" TVs — Lightweight, low-profile mount for large flat panel displays.
- One-person installation — Mount the top rail and slide on the assembly for fast, single-installer setup.
- Low profile — Collapses to 2.0" (50 mm) without interface or 2.1" (53 mm) with interface.
- Ultra-low profile with TA500 — Facilitates ADA compliance when installed with a TA500 in-wall back box.
- Extends up to 25" (635 mm) — Full extension maximizes viewing potential.
- Centris low-profile tilt — Up to 15 degrees of effortless fingertip tilt for optimal viewing angles.
- Centerless lateral shift — Up to 16" (406 mm) of post-installation lateral adjustment for centering.
- Post-install height adjustment — 1" (25 mm) of height adjustment for perfect screen placement.
- Integrated cable management — Enclosed, tool-free cable covers and a wide open wall plate ease cable routing.
Typical Applications
- Conference room and boardroom displays
- Huddle room and commercial meeting space displays
- Digital signage in lobbies and retail
- Training room and multi-purpose room displays
- House of worship and government space displays
Technical Specifications
| Mount Type | Full-motion (swing arm) wall mount |
| Screen Size Range | 42" – 75" |
| Collapsed Depth | 2.0" (50 mm) without interface; 2.1" (53 mm) with interface |
| Maximum Extension | Up to 25" (635 mm) |
| Tilt | Centris low-profile tilt, up to 15° |
| Lateral Shift | Centerless, up to 16" (406 mm) |
| Height Adjustment | 1" (25 mm) post-installation |
| In-Wall Option | TA500 in-wall back box (sold separately) |
| Cable Management | Enclosed, tool-free cable covers |
Frequently Asked Questions
What size TVs does the TS525TU support?
It is designed for flat panel displays from 42" to 75". Confirm your display's weight and VESA pattern before ordering.
Can one person install it?
Yes. Installation is fast and can be completed by one person by mounting the top rail and sliding on the assembly.
Does it support an ADA-compliant installation?
When installed together with a TA500 in-wall back box, the TS525TU facilitates ADA compliance with an ultra-low profile.
How much adjustment is available after installation?
It offers up to 16" (406 mm) of Centerless lateral shift, 1" (25 mm) of height adjustment, and up to 15 degrees of Centris tilt.
Is the TS525TU covered by a warranty?
Yes. It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
