Chief SYSTEM SUSP CEILING PROJ 0-12" WHITE - SYSAUW

Product Overview

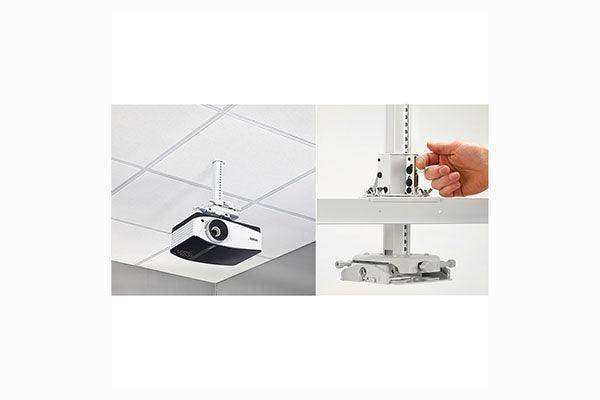

The Chief SYSAUW is a white suspended ceiling projector system designed to reduce installation time by one-third compared to sourcing individual components. It ships with the universal projector mount and adjustable column pre-assembled and includes everything required to complete the majority of conference room projector ceiling mount installations. The 0–12-inch adjustable column accommodates a range of ceiling heights, and the system is compatible with 2×2, 2×4, 60×60 cm, and 62.5×62.5 cm T-grid ceiling systems. The white finish makes it well-suited for installations in white and light-colored suspended ceiling environments.

Product Description

The Chief SYSAUW suspended ceiling projector system delivers a complete, out-of-the-box projector ceiling mount solution that dramatically shortens installation time. The mount and column arrive pre-assembled and organized in the box in the sequence they are needed during installation, so integrators can work efficiently from the moment the package is opened. The adjustable ceiling plate places the mount above or below the ceiling tile and accommodates inconsistent T-grid spacing, with compatibility for 2×2, 2×4, 60×60 cm, and 62.5×62.5 cm ceiling grid formats. A detachable electric plate allows electricians to pre-wire the ceiling plate before the main assembly is installed, enabling parallel work on electrical and AV installation tasks. The 0–12-inch adjustable column uses dual inlay channels to route both high-voltage and low-voltage cables cleanly within the column body. Tool-Free Microzone adjustment eliminates set screws for quick column positioning, and Centris Technology provides fingertip projector positioning with tool-free lockdown. The Q-Lock Quick Release Lever enables fast projector connect and disconnect for service calls, with an integrated key-and-lock system for security. The improved universal interface simplifies lock/unlock at the projector connection point. This system is finished in white. The black-finish counterpart is the SYSAUB. View additional Chief projector ceiling mount systems at creationnetworks.net/collections/chief.

Key Features

• One-Third Faster Installation — System arrives with mount and column pre-assembled and packed in installation order, cutting setup time by one-third versus sourcing individual components.
• Adjustable Ceiling Plate for T-Grid Systems — Mounts above or below ceiling tile and accommodates inconsistent T-grids; compatible with 2×2, 2×4, 60×60 cm, and 62.5×62.5 cm ceiling grids.
• Detachable Electric Plate for Pre-Wiring — Ceiling plate detaches for electrical pre-wiring; compatible with popular 2-gang adjustable mud rings.
• 0–12-Inch Adjustable Column — Accommodates a range of ceiling heights with dual inlay channels routing high and low voltage cables within the column.
• Tool-Free Microzone Adjustment — Eliminates set screws for fast, tool-free column positioning during installation.
• Centris Technology Fingertip Positioning — Provides effortless projector positioning with new tool-free lockdown for precise alignment.
• Q-Lock Quick Release Lever — Enables fast connect/disconnect of the projector for service with an integrated key-and-lock security system.
• White Finish — Designed for white and light-colored suspended ceiling environments.

Typical Applications

• Conference room projector suspended ceiling installations
• Corporate training room and presentation space projector mounts
• Classroom and lecture hall ceiling projector deployments
• Commercial AV installations in T-grid suspended ceiling environments

Technical Specifications

Frequently Asked Questions

What ceiling grid formats is the SYSAUW compatible with?
The SYSAUW is compatible with 2×2-foot, 2×4-foot, 60×60 cm, and 62.5×62.5 cm T-grid suspended ceiling formats.

Does the SYSAUW include the projector mount?
Yes. The system includes the universal projector mount and adjustable column pre-assembled, along with the ceiling plate hardware needed for most installations.

What is the column adjustment range?
The column adjusts from 0 to 12 inches to accommodate varying ceiling heights and projector throw requirements.

Is there a black version of this product?
Yes. The SYSAUB is the black-finish counterpart to the SYSAUW and is otherwise functionally identical.

What warranty applies to this product?
The SYSAUW is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for specific warranty terms.
