Chief SUPENDED CEILING 2X2 KIT W/ POWER - CMS445P2

Product Overview

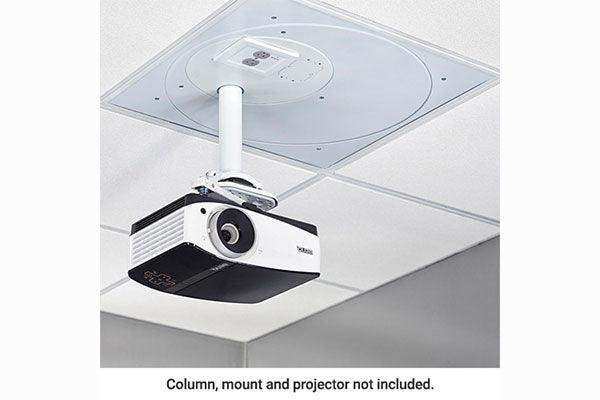

The Chief CMS445P2 is a 2×2 suspended ceiling tile replacement kit engineered for front-projector installations in commercial AV environments. It integrates a dual-gang electrical housing with filtered, surge-protected power directly into the ceiling tile footprint, eliminating a separate electrical rough-in for the projector circuit. The WireVice Cable Suspension System and TwisTile Ceiling Tile Cutter simplify cable management and column placement, reducing installation time on-site. A projection column and projector mount are sold separately and must be ordered to complete the installation.

Product Description

The Chief CMS445P2 Suspended Ceiling 2×2 Kit with Power is designed for conference rooms, training rooms, and commercial AV spaces where a clean, integrated ceiling installation is required for front-projection systems. The kit replaces a standard 2×2 ceiling tile and provides infinite column positioning within the tile footprint, giving installers the flexibility to position the projector precisely over the screen. The WireVice Cable Suspension System supports quick and secure cable tie-off above the ceiling plane, while the TwisTile Ceiling Tile Cutter pierces a clean circular hole for the extension column without additional tools. Power is delivered through a built-in dual-gang housing with an isolated ground and dual receptacle outlets rated at 125V~, 60 Hz, 15 A — supporting projectors up to 1,875 watts. The non-sacrificial multi-stage surge protection circuit withstands 240 VAC continuously without loss of protection and reduces common and differential mode noise by up to 40 dB via a ferrite toroid-based EMI filter. The All-Points Security System locks the column at the ceiling connection point to deter theft or unauthorized removal. Included hardware — four 25-foot flexible cables, four wood eyebolts, four concrete anchors, and a chrome trim ring — covers most standard installation scenarios. Compatible with 24-inch (600 mm) ceiling tile grids and 1.5-inch NPT columns for broad system compatibility. See the full Chief collection at creationnetworks.net/collections/chief.

Key Features

• WireVice Cable Suspension System — Provides quick and secure tie-off for signal and power cables above the ceiling tile, supporting a clean installation.
• TwisTile Ceiling Tile Cutter — Easily pierces a circular hole in ceiling tiles for the extension column without requiring separate cutting tools.
• Infinite Column Placement — Allows any column position within the 2×2 footprint for precise projector alignment with the screen.
• Non-Sacrificial Multi-Stage Surge Protection — Protects connected AV equipment from high-energy transients, lightning strikes, and line disturbances without sacrificing the protection circuit.
• EMI Noise Filtering — Ferrite toroid-based EMI filter reduces common and differential mode electrical noise by up to 40 dB for cleaner power delivery to the projector.
• All-Points Security System — Exclusive locking hardware at the column connection point protects against theft and unauthorized disassembly.
• Dual Receptacle with LED Indicator — Non-volatile spike protection with visual LED power indicator; rated 125V~, 60 Hz, 15 A, 1,875 W maximum.
• Single and Dual Outlet Cutouts — Supports both single and dual electrical outlet configurations to accommodate different power routing needs.
• 1.5" NPT Column Compatibility — Accepts standard 1.5-inch NPT projection columns for broad Chief column system compatibility.
• Complete Hardware Package — Includes four 25-foot flexible cables, four wood eyebolts, four concrete anchors, and a chrome trim ring for most standard ceiling installations.

Typical Applications

• Conference room front-projection installations with integrated ceiling power
• Training room AV ceiling mount deployments
• Commercial meeting space projector installations
• Multi-purpose room AV systems
• House of worship front-projector ceiling mounts

Technical Specifications

Frequently Asked Questions

Does the CMS445P2 include a projector mount and column?
No. The CMS445P2 provides the ceiling housing, integrated power, and suspension hardware only. A compatible extension column and projector mount must be purchased separately.

What ceiling grid sizes does this kit fit?
The kit is designed for 24-inch (600 mm) wide suspended ceiling tile grids, replacing a standard 2×2 ceiling tile.

Does the built-in power outlet include surge protection?
Yes. The dual-gang housing includes non-sacrificial multi-stage surge protection rated to withstand 240 VAC continuous without loss of protection, plus up to 40 dB of EMI noise reduction.

What column thread size does this kit require?
The CMS445P2 is compatible with 1.5-inch NPT extension columns, the standard thread for Chief projection column systems.

What warranty applies to this product?
The CMS445P2 is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks directly for specific warranty terms and conditions.
